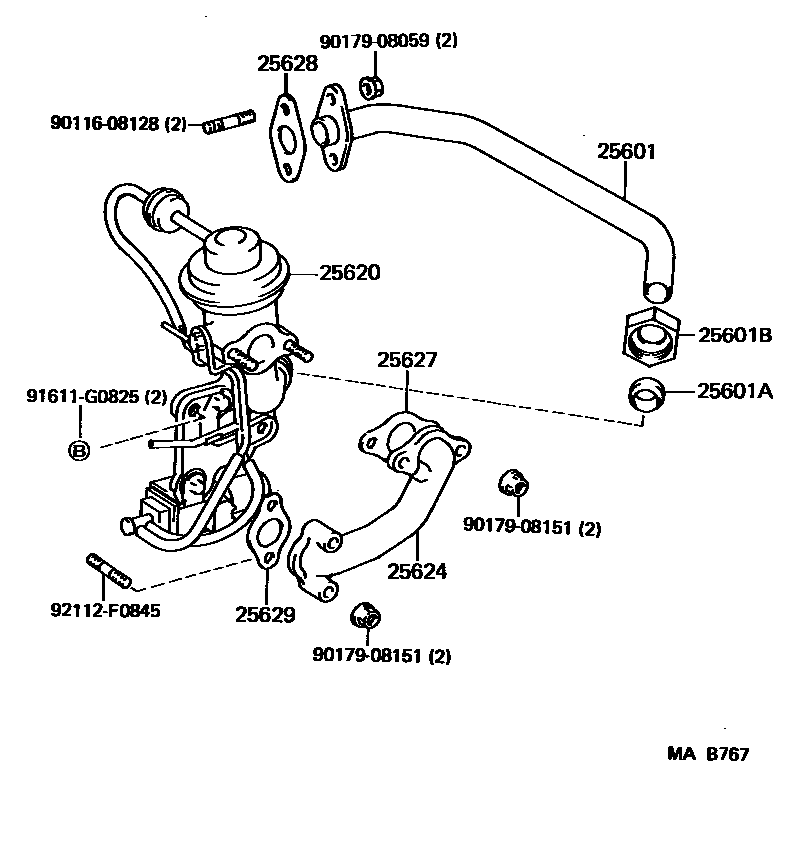

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-41040iMP..MS130198709-198908

main25601-54030i2L..LS130198709-198908

main25601-54040i2LT#..LS130198709-198908

main25601-54061i2L..LS130198908-199110

main25601-54070i2LT#..LS130,131198908-199110

main25611-72010i3YP..YS130198709-198908

main25611-73040i3YPE..YS130198908-199110

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i3YP..YS130198709-198912

VALVE SIDE

main90410-12042i3YPE..YS130198908-199110

main90410-14001iMP..MS130198709-198908

sub90410-14003

main90410-16001i3YP..YS130198709-198912

UNION SIDE

main90410-25001i2L,2LT#..LS130,131198709-199110

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20073i3YPE..YS130198908-199110

main90402-20073i3YP..YS130198709-198912

VALVE SIDE

main90402-22010i3YP..YS130198709-198912

UNION SIDE

main90402-22076iMP..MS130198709-198908

main90402-33001i2L,2LT#..LS130,131198709-199110

25620VALVE ASSY, EGR

main25620-41170iMP..MS130198709-198908

main25620-54080i2L,2LT..LS130,131198908-199110

main25620-54090i2LTHE..LS130,131198908-199110

sub25620-54140

main25620-72010i3YP..YS130198709-198908

sub25620-72011

sub90445-11078

main25620-73120i3YPE..YS130198908-199110

main25800-54020i2L,2LT#..LS130198709-198908

25624ADAPTER, EGR VALVE

main25607-72010i3YP..YS130198709-198908

sub25607-72011

main25607-73010i3YPE..YS130198908-199110

main25624-54020i2L,2LT#..LS130198709-198908

main25624-54040i2L,2LT#..LS130,131198908-199110

25627GASKET, EGR VALVE

main25627-31020i3YP#..YS130198709-198912

main25627-42040i7MGE..MS13#198912-199005

main25627-43030i7MGE..MS13#198709-199110

sub25627-42040

main25627-45011iMP..MS130198709-198908

sub25627-43130

main25627-54010i2L,2LT#..LS130198709-198904

sub25627-54011

main25627-54011i2L,2LT#..LS130,131198904-199110

main25627-73010i3YPE..YS130198912-199110

25628GASKET, EGR INLET

main25628-42010i7MGE..MS135,137198709-198908

sub25628-42020

main25628-45011iMP..MS130198709-198908

sub25628-43020

main25628-54011i2L,2LT#..LS130198709-198808

sub25628-54012

main25628-54012i2L,2LT#..LS130,131198808-199110

25629GASKET, EGR VALVE ADAPTER

main25629-54010i2L,2LT#..LS130198709-198904

sub25629-54011

main25629-54011i2L,2LT#..LS130,131198904-199110

9011608128

main90116-08128

9017908059

main90179-08059

9017908151

main90179-08151

91611G0825

main91611-G0825

92112F0845

main92112-F0845

13 parts on this diagram · 7 diagrams in section
