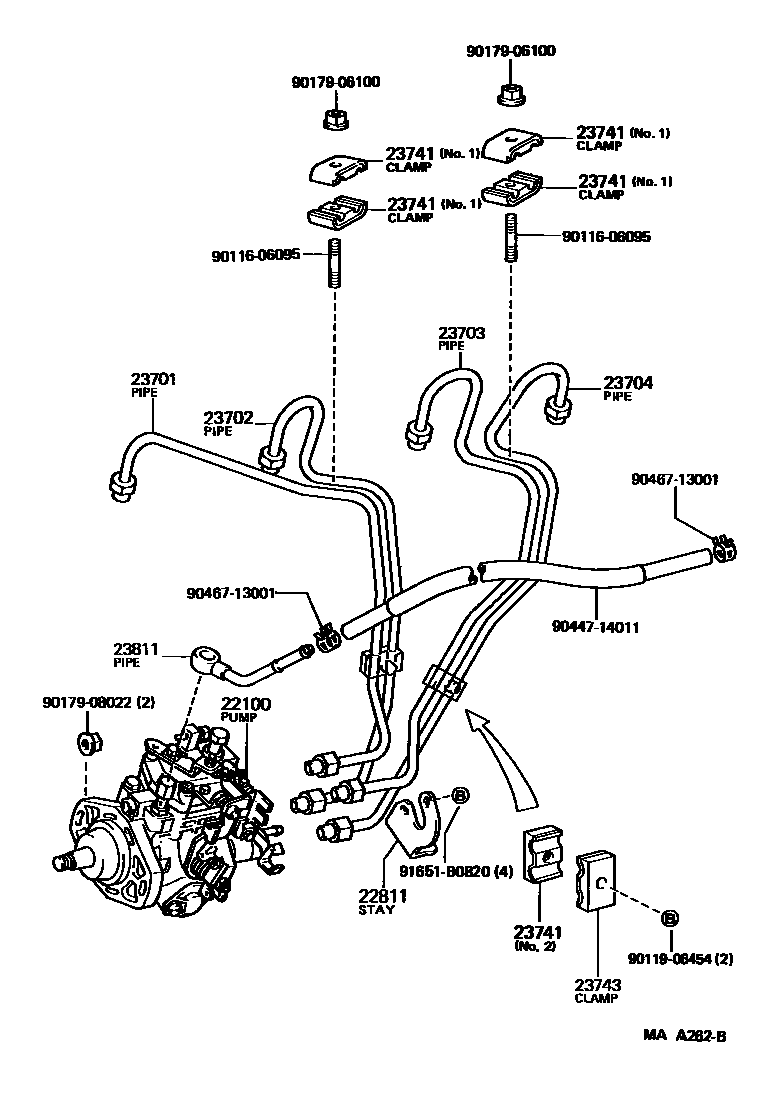

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54332i2L..LS136..MTM198709-198908

main22100-54392i2L..LS136..4FC198709-198908

main22100-54620i2L..LS130198709-198908

main22100-54630i2LT..LS130198709-198908

main22100-54640i2LTHE..LS130198709-198908

main22100-54730i2L..LS136..MTM198908-199110

main22100-54740i2L..LS136..4FC198908-199110

main22100-5B011i2LT..LS130,131198908-199008

main22100-5B012i2LT..LS130,131199008-199110

main22100-5B230i2L..LS130198908-199110

main22100-5B250i2LTHE..LS130,131198908-199004

sub22100-5B300

main22100-5B300i2LTHE..LS130,131199004-199011

main22100-5B301i2LTHE..LS130,131199011-199110

sub22100-5B302

22811STAY, INJECTION PUMP, NO.1

main22811-54040i2L,2LT..LS13#198709-198801

sub22811-54041

main22811-54041i2L,2LT..LS13#198808-199110

sub22811-54042

main22811-54050i2LTHE..LS130,131198709-199004

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54072i2L,2LT..LS13#198903-198908

main23701-54082i2L,2LT..LS13#198709-198903

sub23701-54072

main23701-54090i2LTHE..LS130198709-198908

main23701-54120i2LTHE..LS130,131198908-199110

sub23701-54130

main23701-54140i2L,2LT..LS13#198908-199110

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54071i2L,2LT..LS13#198903-198908

main23702-54081i2L,2LT..LS13#198709-198903

sub23702-54071

main23702-54090i2LTHE..LS130198709-198908

main23702-54120i2LT..LS130,131198908-199110

main23702-54130i2LTHE..LS130,131198908-199110

sub23702-54160

main23702-54140i2L..LS130,136198908-199110

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54072i2L,2LT#..LS13#198903-198908

main23703-54082i2L,2LT#..LS13#198709-198903

sub23703-54072

main23703-54100i2L,2LT#..LS13#198908-199110

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54072i2L,2LT#..LS13#198901-198908

main23704-54082i2L,2LT#..LS13#198709-198901

sub23704-54072

main23704-54100i2L,2LT#..LS13#198908-199110

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i2L,2LT#..LS13#198709-199110

main23741-56010i2L,2LT#..LS13#198709-199110

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010i2L,2LT#..LS13#198709-198908

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54100i2L,2LT#..LS13#198709-198908

main23811-54190i2L,2LT#..LS13#198908-199110

sub23811-54191

9011606095

main90116-06095

9011906454

main90119-06454

9017906100

main90179-06100

9017908022

main90179-08022

9044714011

main90447-14011

9046713001

main90467-13001

91651B0820

main91651-B0820

16 parts on this diagram · 3 diagrams in section
