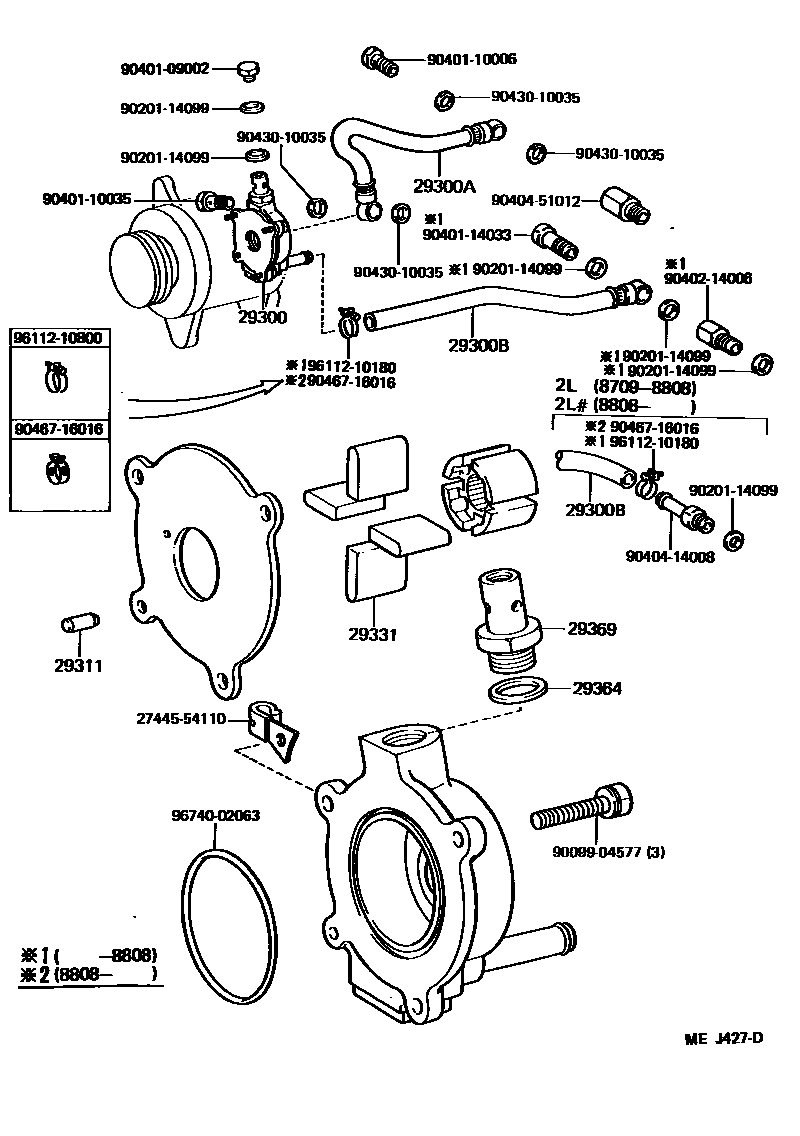

VACUUM PUMP

0001 1 0002 1 0003 1

29300PUMP ASSY, VACUUM

main29300-54050i2L,2LT#..LS13#198709-198908

main29300-54100i2L,2LT#..LS13#198908-199110

sub29300-54130

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i2L..LS13#198709-198908

main90923-02096i2LT#..LS130198709-198908

main90923-02109i2LT#..LS130,131198908-199007

main90923-02110i2L..LS130,136198908-199110

sub90923-02118

main90923-02114i2LT#..LS130,131199007-199110

sub90923-02119

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i2L,2LT#..LS13#198808-198809

main29611-54050×2i2L,2LT#..LS13#198908-199110

main90923-02076i2L..LS13#198709-198808

main90923-02089i2LT#..LS130198709-198808

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2L,2LT#..LS13#198709-198908

29331BLADE, VACUUM PUMP, A

main29331-56070×4i2L,2LT#..LS13#198709-198908

main29331-64030×3i2L,2LT#..LS13#198908-199110

29364WASHER, VACUUM PUMP

main29364-66010i2L,2LT#..LS13#198709-199110

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L,2LT#..LS13#198709-198908

main29369-64030i2L,2LT#..LS13#198908-199110

2744554110

main27445-54110

9009904577

main90099-04577

9020114099

main90201-14099

9040109002

main90401-09002

9040110006

main90401-10006

9040110035

main90401-10035

9040114033

main90401-14033

9040214006

main90402-14006

9040414008

main90404-14008

9040451012

main90404-51012

9043010035

main90430-10035

9046716016

main90467-16016

9611210180

main96112-10180

9611210800

main96112-10800

9674002063

main96740-02063

22 parts on this diagram · 3 diagrams in section
