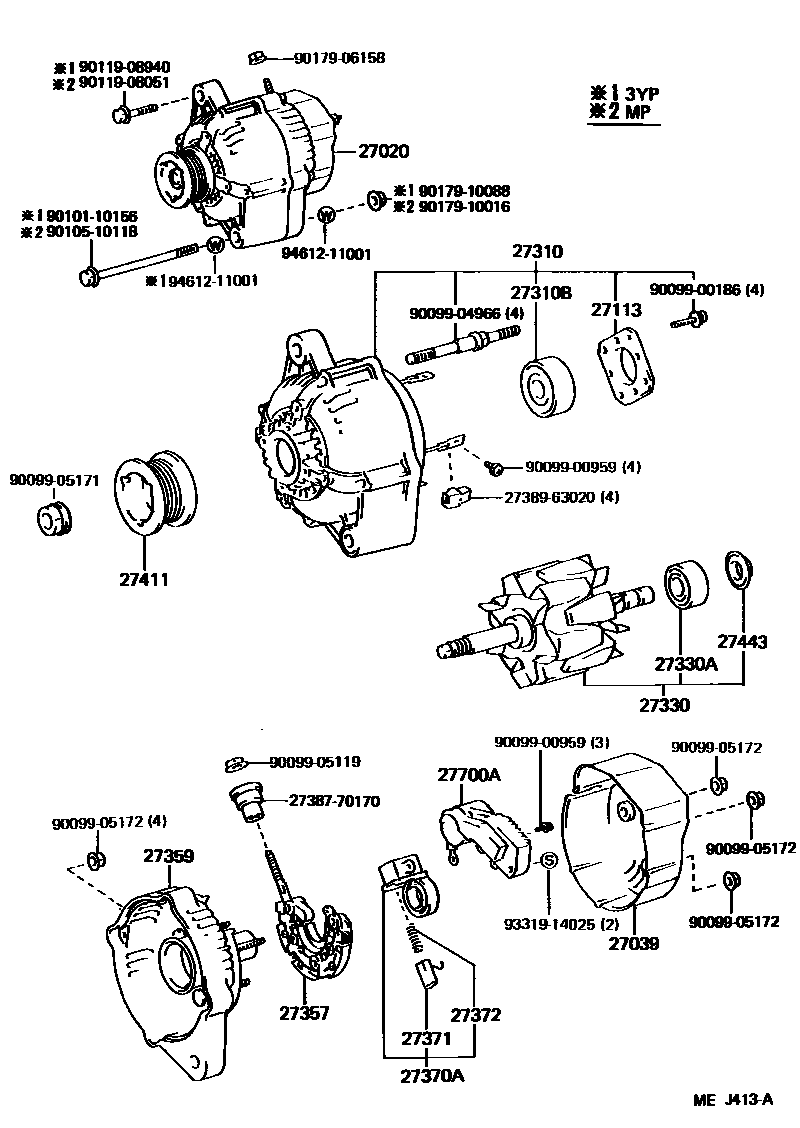

ALTERNATOR

0001 112V 60A 0002 112V 55A,70A 0003 112V 70A(GS130,131),12V 55A(GS0004 112V 80A 0005 112V 80A 0006 112V 60A 0007 112V 70A 0008 112V 70A 0009 1 0010 1

27020ALTERNATOR ASSY

main27020-54310i2L,2LT#..LS13#198709-198908

main27060-42060i7MGE..MS135,137198809-199110

main27060-43140i7MGE..MS135,137198709-198809

main27060-43150iMP..MS130198709-198908

main27060-46010i1JZGE..JZS13#199008-199110

main27060-50020i1UZFE..UZS131198908-199110

main27060-54070i2LTHE..LS130,131198908-199110

sub27060-54110

main27060-54080i2L,2LT..LS13#198908-199110

sub27060-54110

main27060-70150i1GGE..GS131198709-198809

main27060-70220i1GE..GS130,131198709-198908

main27060-70230i1GE..GS136198709-198908

main27060-70240i1GGZE..GS130,131198709-198809

main27060-70280i1GFE..GS130,131198809-199110

main27060-70290i1GG#..GS130,131198809-198908

sub27060-70291

main27060-70310i1GFE..GS136198908-199110

main27060-70320i1GGP..GS130198908-199110

main27060-70330i1GGZE..GS130,131198908-199110

main27060-72130i3YP..YS130198709-198908

main27060-73010i3YPE..YS130198908-199110

27039COVER, ALTERNATOR REAR END

main27039-42010i1UZFE..UZS131198809-199110

sub27039-16310

main27039-43110i1GG#,7MGE..GS130,131,MS135,137198709-198809

main27039-50040i1UZFE..UZS131198908-199110

main27039-70081i1GE..GS130,131198709-198908

sub27039-74200

main27039-70090i1GE..GS136198709-198908

sub27039-70091

main27039-72010i1GFE,MP,3YP..GS130,131,MS130,YS130198709-198908

sub27039-15170

main27039-72110i1GFE..GS136198908-199110

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i1GGZE,7MGE..GS130,131,MS135,137198709-198809

main27312-57060i2L,2LT#..LS13#198709-198908

main27312-64130i2L,2LT#..LS13#198908-199110

main27312-70200i1GE,1GFE,1GGP,MP,3YP#..GS130,131,MS130,YS130198709-199110

main27312-72100i1GE,1GFE..GS136198709-199110

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-42010i1GGZE,1GGE..GS130,131199001-199110

main27310-43132iMP,3YP#..MS130,YS130198709-199110

main27310-46080i1JZGE..JZS13#199008-199110

main27310-50040i1UZFE..UZS131198908-199110

main27310-54130i2L,2LT#..LS13#198709-198908

sub27310-54131

main27310-54470i2LTHE..LS130,131198908-199110

main27310-54500i2L,2LT..LS13#198908-199110

main27310-63051i1GFE..GS136198908-199110

main27310-70091i1GE..GS136198709-198908

main27310-70100i1GFE..GS130,131198809-199110

main27310-70150i1GG#,7MGE..GS130,131,MS135,137198709-198809

main27310-70220i1GE..GS130,131198709-198908

main27310-70300i1GGP..GS130198908-199110

main27310-74110i7MGE..MS13#199001-199110

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i2L,2LT#..LS13#198709-198908

main90099-10159i1GE,1GFE..GS136198709-199110

main90099-10160i1GGZE,1GGE,7MGE,1UZFE..GS130,131,MS135,137,UZS131198709-199001

sub90099-10219

main90099-10165i2L,2LT#..LS13#198908-199110

main90099-10177i1GGP,MP,3YP#..GS130,MS130,YS130198709-199110

main90099-10178i1GE,1GFE..GS130,131198709-199110

main90099-10192i1JZGE,7MGE..JZS13#,MS13#199001-199110

27330ROTOR ASSY, ALTERNATOR

main27330-10021i1GE,1GFE..GS136198709-199110

main27330-42010i1GG#,7MGE..GS130,131,MS135,137198809-198908

main27330-43110i1GG#,7MGE..GS130,131,MS135,137198709-198809

main27330-43132i1GGP,MP,3YP#..GS130,MS130,YS130198709-199110

main27330-46080i1JZGE,1UZFE..JZS13#,UZS131199012-199110

main27330-50040i1UZFE..UZS131198908-199012

main27330-54310i2L,2LT#..LS13#198709-198908

sub27330-64170

main27330-64130i2L,2LT..LS13#198908-199110

main27330-64190i2LTHE..LS130,131198908-199110

main27330-72101i1GE,1GFE..GS130,131198709-199110

main27330-76030i1GGZE,1GGE,7MGE..GS130,131,MS13#199012-199110

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1GE,1GFE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130198709-198908

main90099-10194i1JZGE,1UZFE..JZS13#,UZS131198908-199110

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-42010i1GGZE,1GGE,7MGE..GS130,131,MS135,137198809-199110

main27357-43110i1GG#,7MGE..GS130,131,MS135,137198709-198809

main27357-46080i1JZGE..JZS13#199008-199110

sub27357-46150

main27357-50040i1UZFE..UZS131198908-199110

main27357-63020i1GFE,MP,3YP..GS130,131,MS130,YS130198709-198908

main27357-63040i1GFE..GS136198908-199110

main27357-70081i1GE..GS130,131198709-198908

main27357-70091i1GE..GS136198709-198908

main27357-74050i2LTHE..LS130,131198908-199110

sub27357-74160

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i2L,2LT..LS13#198908-199110

sub27359-16181

sub27384-16380

main27359-42010i1GGZE,1GGE,7MGE..GS130,131,MS135,137198809-199110

sub27359-74330

main27359-43160i1GFE..GS130,131198908-199110

sub27359-43161

sub27384-16380

main27359-46080i1JZGE..JZS13#199008-199110

sub27359-46290

main27359-50040i1UZFE..UZS131198908-199110

main27359-54420i2LTHE..LS130,131198908-199110

main27359-70091i1GE..GS136198709-198908

main27359-70150i1GG#,7MGE..GS130,131,MS135,137198709-198809

main27359-70220i1GE..GS130,131198709-198908

main27359-70260i1GFE..GS130,131198809-198908

main27359-70300i1GGP..GS130198908-199110

main27359-72130i3YP..YS130198709-198804

sub27359-72131

sub27384-16380

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i1GE..GS13#198709-198908

main27370-42010i1GGZE,1GGE,7MGE,1UZFE..GS130,131,MS135,137,UZS131198809-199110

main27370-54450i2L,2LT..LS13#198908-199110

sub27370-58320

main27370-63021i1GG#,7MGE..GS130,131,MS135,137198709-198809

main27370-70300i1GGP,3YPE..GS130,YS130198908-199110

sub27370-35060

main27370-72161iMP,3YP..MS130,YS130198709-198908

main27370-75060i2LTHE..LS130..SDX198908-199110

27371BRUSH, ALTERNATOR

main27371-56070×2i2L,2LT#..LS13#198709-198908

sub27371-54412

main27371-63020×2i1GE,1GG#,7MGE..GS13#,MS135,137198709-198809

main27371-70300×2i1GGP,2L,2LT,3YPE..GS130,LS13#,YS130198908-199110

main27371-72161×2iMP,3YP..MS130,YS130198709-198908

27372SPRING, ALTERNATOR BRUSH

main27372-56070×2i2L,2LT#..LS13#198709-198908

main27372-72100×2i1GE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130198709-198809

sub27372-63020

27411PULLEY, ALTERNATOR

main27411-42010i1GG#..GS130,131198809-198908

main27411-42030i7MGE..MS135,137198809-199110

main27411-43051iMP..MS130198709-198908

main27411-43140i7MGE..MS135,137198709-198809

main27411-46080i1JZGE..JZS13#199008-199110

main27411-50040i1UZFE..UZS131198908-199110

sub27411-50190

main27411-54170i2L,2LT#..LS13#198709-198908

sub27411-54171

main27411-70150i1GGE..GS131198709-198809

main27411-70200i1GE,1GGP..GS13#198709-199110

main27411-70230i1GGZE..GS130,131198709-198809

main27411-70260i1GFE..GS130,131198809-198908

main27411-70261i1GFE..GS13#199006-199110

main27411-70310i1GGZE..GS130,131198908-199110

sub27411-70330

main27411-72130i3YP#..YS130198709-199110

27443COVER, ALTERNATOR BEARING

main27443-63020i1GE,1GFE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130198709-198908

27700AREGULATOR ASSY, GENERATOR

main27700-10061i2L,2LT#..LS13#198908-199110

sub27700-54050

main27700-16010i1GFE,1GGZE,1GGE,7MGE,1UZFE..GS13#,MS135,137,UZS131198809-199104

sub27700-66020

main27700-46030i1JZGE..JZS13#199109-199110

sub27700-72090

main27700-64040i2L,2LT#..LS13#198709-198908

sub27700-64110

main27700-70030i1GE,1GG#,7MGE..GS13#,MS135,137198709-198809

main27700-72080i1GGP,MP,3YP#..GS130,MS130,YS130198709-199110

main27700-74010i1JZGE..JZS13#199008-199109

sub27700-72090

main27700-76020i1GGZE,7MGE,1UZFE..GS130,131,MS13#,UZS131199104-199109

sub27700-66020

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900186

main90099-00186

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010110156

main90101-10156

9010510118

main90105-10118

9011908051

main90119-08051

9011908940

main90119-08940

9017906158

main90179-06158

9017910016

main90179-10016

9017910088

main90179-10088

9331914025

main93319-14025

9461211001

main94612-11001

32 parts on this diagram · 10 diagrams in section
