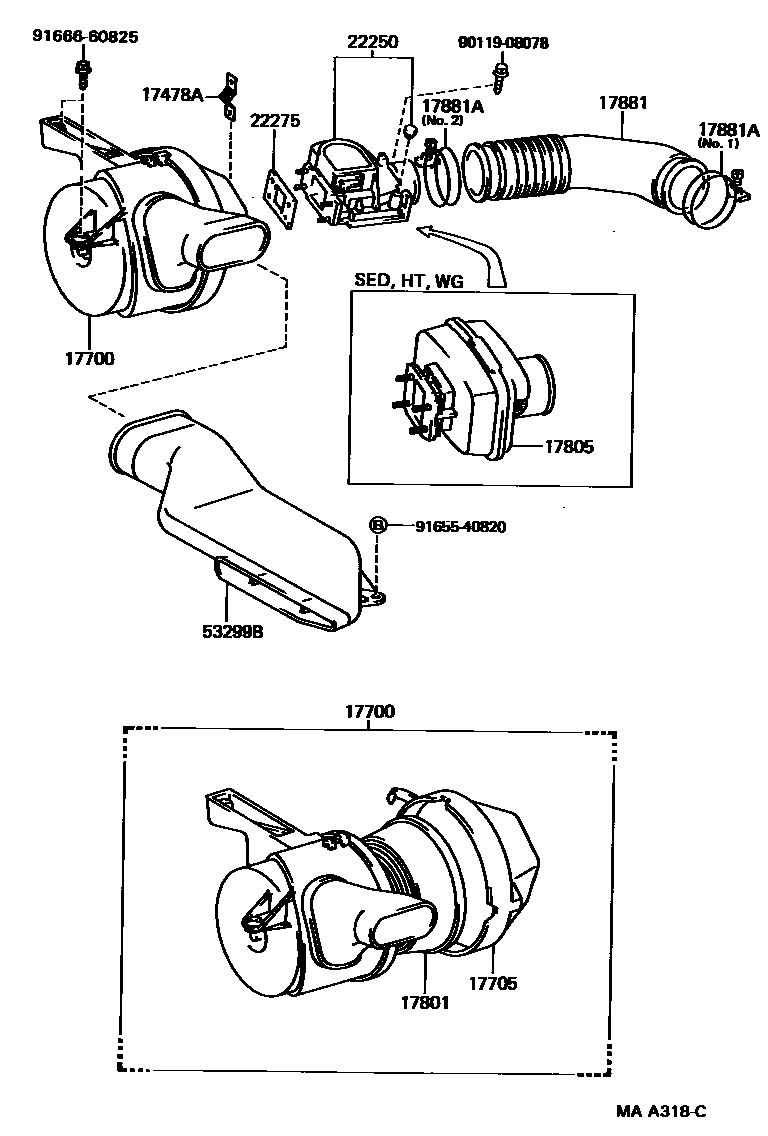

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

17478APLATE, LOCK

main17478-43010×2i1JZGE..JZS13#198709-199110

17700CLEANER ASSY, AIR

main17700-41640iMP..MS130198709-198908

main17700-42230i7MGE..MS135,137198709-198908

main17700-42260i7MGE..MS13#198908-199110

main17700-43130i1GE..GS136198709-198908

main17700-50030i1UZFE..UZS131198908-199110

main17700-54420i2L,2LT..LS13#198709-198908

main17700-54430i2LTHE..LS130198709-198908

main17700-54600i2L,2LT..LS13#198908-199110

main17700-54610i2LTHE..LS130,131198908-199110

main17700-70080i1JZGE..JZS13#198709-199110

main17700-70140i1GGP..GS130198908-199110

main17700-73180i3YP..YS130198709-198908

main17700-73250i3YPE..YS130198908-199110

sub17700-73900

17705CAP SUB-ASSY, AIR CLEANER

main17705-41210iMP..MS130198709-198908

main17705-42120i7MGE..MS135,137198709-198908

main17705-42130i1JZGE..JZS13#198709-199110

main17705-42150i7MGE..MS13#198908-199110

main17705-43100i1GE..GS136198709-198908

main17705-50020i1UZFE..UZS131198908-199110

main17705-54200i2L,2LT..LS13#198709-198908

main17705-54210i2LTHE..LS130198709-198908

main17705-54270i2LTHE..LS130,131198908-199110

main17705-73060i3YP..YS130198709-198908

main17705-73110i2L,2LT..LS13#198908-199110

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-41120iMP..MS130198709-198908

sub17801-43010

main17801-44040i3YP..YS130198709-198908

main17801-50010i1UZFE..UZS131198908-199110

main17801-54090i2L,2LT#..LS13#198709-199110

main17801-70020i1JZGE..JZS13#198709-199110

main17801-73020i3YPE..YS130198908-199110

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-46010i1JZGE..JZS13#199008-199110

main17805-54070i2L,2LT#..LS13#198709-198908

main17805-54170i2L..LS130,136198908-199110

main17805-54210i2LT#..LS130,131198908-199110

main17805-70070i1GFE,1GGE..GS13#198709-199110

main17805-70080i1GE..GS130,131198709-198908

main17805-73120i3YPE..YS130198908-199110

NO.2

main17805-73130i3YPE..YS130198908-199110

NO.1

17881HOSE, AIR CLEANER, NO.1

main17349-54010i2LT#..LS130198709-198908

NO.1

main17349-54020i2L..LS13#198709-198908

NO.1

main17881-42020i7MGE..MS135,137198709-199110

main17881-42040i7MGE..MS13#..ROY,ROYG198908-199110

main17881-46060i1JZGE..JZS13#199008-199110

main17881-50020i1UZFE..UZS131198908-199110

main17881-54330i2L,2LT#..LS13#198709-198908

NO.2

main17881-54440i2L..LS130,136198908-199110

main17881-54450i2LT#..LS130,131198908-199110

sub17881-54451

main17881-70080i1GG#..GS130,131199008-199110

main17881-70140i1GGZE..GS130,131198709-199008

main17881-70150i1GE..GS136198709-198908

main17881-70191i1GE..GS130,131198709-198908

main17881-70240i1GFE..GS13#198809-199110

main17881-73110i3YPE..YS130198908-199106

main17881-73120i3YPE..YS130199106-199110

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-65004×2i2LT#..LS130198709-198908

NO.1

sub90460-65002

main90460-77002i3YPE..YS130198908-199110

CONECTOR SIDE

main90460-88001×2i3YPE..YS130198908-199110

AIR CLEANER SIDE

main90460-90003×3i1UZFE..UZS131198908-198909

sub90460-90005

main90460-92001×3i1UZFE..UZS131198910-199110

sub90460-92002

main96111-10600i1GGZE..GS130,131198709-199008

main96111-10670i2L..LS13#198709-198908

FLANGE SIDE,NO.1

main96111-10710i1GE..GS13#198709-198908

main96111-10730i2L,2LT#..LS13#198709-198908

ENGINE SIDE,NO.3

main96111-10800i1GE..GS13#198709-198908

main96111-10830×2i7MGE..MS135,137198709-199110

main96111-10900i1JZGE..JZS13#199008-199110

CONNECTOR SIDE

main96111-10950i1GG#..GS130,131198709-199110

22250METER ASSY, INTAKE AIR FLOW

main22250-42050i7MGE..MS135,137198709-198908

main22250-42100i7MGE..MS13#198908-199110

main22250-50020i1UZFE..UZS131198908-199110

main22250-70180i1GGZE..GS130,131198709-199110

main22250-70190i1GE..GS136198709-198908

22275GASKET, AIR FLOW METER

main22275-41010i1GE..GS136198709-198908

main22275-42010i7MGE..MS135,137198709-198908

main22275-42020i7MGE..MS13#198908-199110

main22275-43010i1JZGE..JZS13#198709-199110

main22275-50010i1UZFE..UZS131198908-199110

53299BDUCT, COOL AIR INTAKE

main53299-30160iLS13#198709-199110

main53299-30180iYS130198709-198908

main53299-30200iUZS131198908-199110

main53299-30210iGS130..TWLPG198908-199110

9011908078

main90119-08078

9165540820

main91655-40820

9166660825

main91666-60825

13 parts on this diagram · 16 diagrams in section
