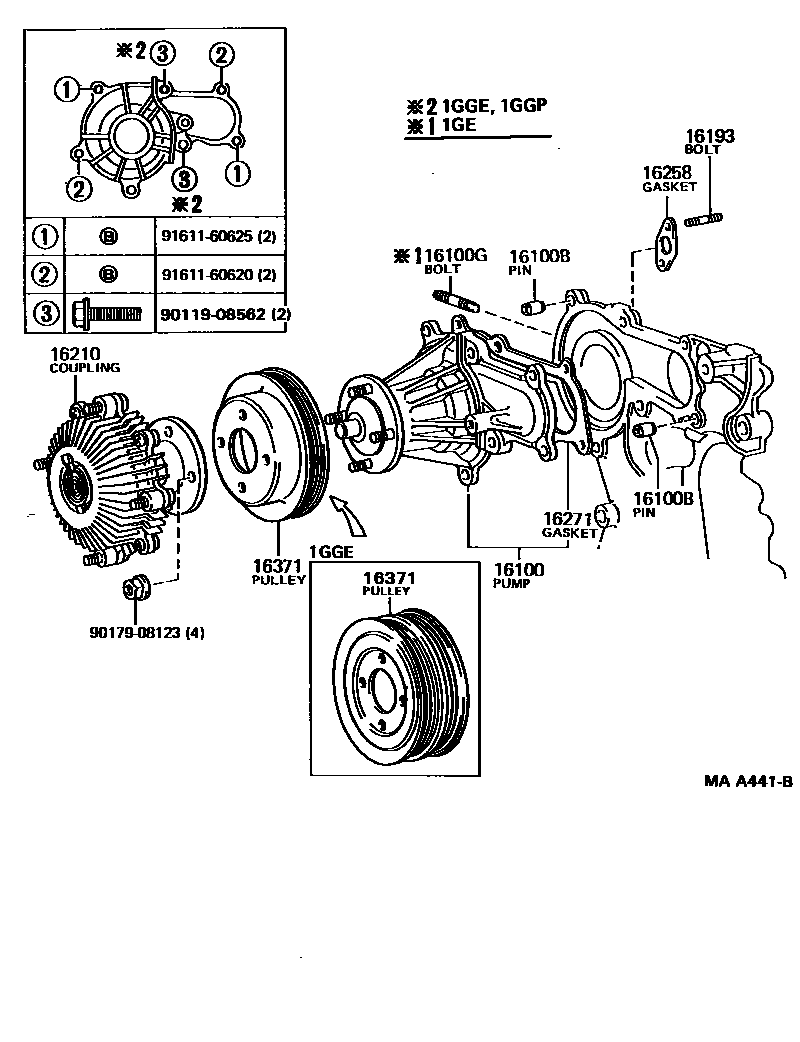

WATER PUMP

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

16100PUMP ASSY, ENGINE WATER

main16100-49755i7MGE..MS135,137198709-199009

sub16100-49756

main16100-49756i7MGE..MS13#199009-199110

sub16100-49805

main16100-49785iMP..MS130198709-198905

sub16100-49786

main16100-49786iMP..MS130198905-198908

sub16100-49787

main16100-49815i1JZGE..JZS13#199008-199110

sub16100-49816

sub90445-12291

main16100-50020i1UZFE..UZS131198908-199110

sub16100-50021

main16100-59137i2L,2LT#..LS13#198709-198908

sub16100-59138

main16100-59155i2L,2LT#..LS13#198908-199110

sub16100-59255

main16100-79015i1GE..GS13#198709-198908

main16100-79025i1GGE..GS131198709-199110

main16100-79036i3YP#..YS130198709-199110

sub16100-79037

main16100-79055i1GGZE..GS130,131198709-199110

main16100-79115i1GFE..GS13#198809-199007

sub16100-79116

main16100-79116i1GFE..GS13#199007-199110

sub16100-79117

sub90119-08B68

main16100-79145i1GGP..GS130198908-199110

sub16100-79146

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040i1GFE,1GGP..GS13#198809-199110

main16159-71010i1GGZE..GS130,131198709-199110

main16185-70010i1GE,1GGE..GS13#198709-199110

main90253-11021i1UZFE..UZS131198908-199110

16100GBOLT, STUD(FOR WATER PUMP SET)

main16194-70010i1GE..GS13#198709-198908

main90116-08111iMP..MS130198709-198908

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010i1GE,1GFE,1GGP,1GGE..GS13#198709-199110

main16193-13020i2L,2LT#..LS13#198709-198908

main16193-41031iMP..MS130198709-199001

main16193-45100iMP..MS130198709-199001

main16193-46030i1JZGE..JZS13#199008-199110

16210COUPLING ASSY, FLUID

main16210-42090i7MGE..MS135,137198804-199110

main16210-43020i7MGE..MS135,137198709-198804

sub16210-43021

main16210-43030iMP..MS130198709-198901

sub16210-43031

main16210-43031iMP..MS130198901-198905

sub16210-43032

main16210-43032iMP..MS130198905-198908

main16210-46010i1JZGE..JZS13#199008-199110

main16210-50030i1UZFE..UZS131198908-199110

main16210-54060i2L..LS136;2LT#..LS130198709-198908

main16210-54120i2L..LS130198709-198908

main16210-54130i2L,2LT#..LS13#198908-199110

main16210-70022i1GE..GS13#198709-198908

main16210-70030i1GGZE..GS130,131198709-198809

main16210-70031i1GGZE..GS130,131198809-199110

main16210-70040i1GFE..GS13#198809-199110

main16210-70080i1GGP..GS130198908-199110

main16210-72010i3YP#..YS130198709-199110

main16210-88300i1GGE..GS131198709-198809

main16210-88341i1GGE..GS131198809-199110

16258GASKET(FOR HEATER RETURN)

main16258-15011i1GE,1GFE,1GGE..GS13#198709-199009

main16258-70010i1GE,1GGP..GS13#198811-199110

sub16258-70020

main16258-70020i1GFE..GS13#199009-199110

main16258-74020i1GGE..GS131199002-199110

sub16258-74021

16271GASKET, WATER PUMP

main16124-70010i1GE..GS13#198709-198908

sub16124-70011

main16124-70030i1GGZE..GS130,131198709-199110

main16124-70041i1GFE,1GGP,1GGE..GS13#199102-199110

main16124-88300i1GFE,1GGP,1GGE..GS13#198709-199102

sub16124-70041

main16271-43010iMP..MS130198709-198908

main16271-54012i2L,2LT#..LS13#198709-198908

sub16271-54013

main16271-54020i2L,2LT#..LS13#198908-199110

sub16271-54030

16371PULLEY, FAN

main16173-42020i7MGE..MS135,137198709-199110

main16173-43040iMP..MS130198709-198908

main16371-46020i1JZGE..JZS13#199008-199110

main16371-50020i1UZFE..UZS131198908-199110

sub16371-50030

main16371-54020i2L,2LT#..LS13#198709-198908

main16371-54030i2L,2LT#..LS13#198908-199110

main16371-70020i1GE..GS13#198709-198908

main16371-70040i1GGZE..GS130,131198709-199110

main16371-70060i1GFE..GS13#198809-199110

sub16371-70061

main16371-70070i1GGP..GS130198908-199110

main16371-71010i3YP#..YS130198709-199110

sub16371-71021

main16371-88301i1GGE..GS131198709-199110

9011908562

main90119-08562

9017908123

main90179-08123

9161160620

main91611-60620

9161160625

main91611-60625

12 parts on this diagram · 10 diagrams in section
