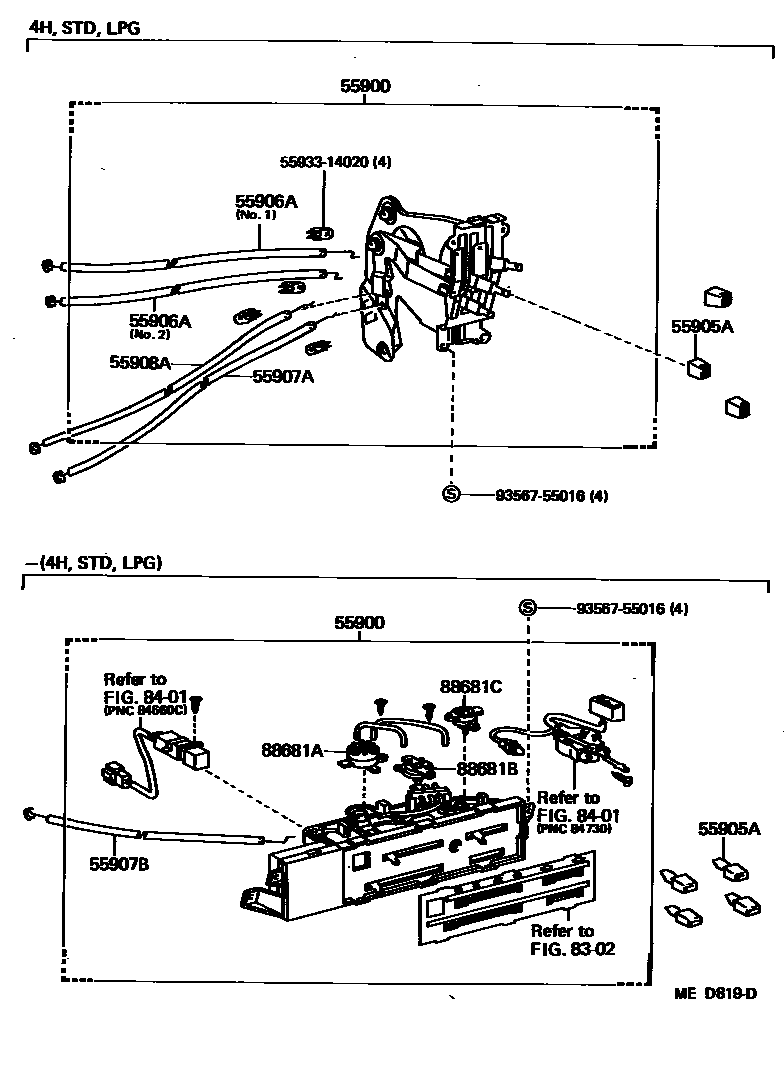

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

55900CONTROL ASSY, AIR CONDITIONER

main55900-30130iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

main55900-30140iGS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509

main55900-30150iGS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509

W/COOLER

main55900-30160iGS120,LS120..WG..SAL198308-198504

W/*AAC

main55900-30161iGS121..ROY198502-198509

W/*AAC

main55900-30170iMS123,125198308-198503

W/*MPAAC

main55900-30171iGS121,MS125..ROY198503-198509

W/*MPAAC

main55900-30220iMS125..HT..4FC198501-198708

THE 30TH LIMITED

main55900-30230iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)198509-198708

main55900-30240iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)198509-198708

W/COOLER

main55900-30250iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

W/*AAC

main55900-30300iMS125198509-198608

W/*MPAAC

sub55900-30310

main55900-30310iMS125198608-198708

W/*MPAAC

55905AKNOB, HEATER CONTROL

main55905-12060iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

sub55905-12070

main55905-30081iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)198308-198708

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-30080iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

NO.1

main55906-30090iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

NO.2

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-30120iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

55907BCABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL

main55907-30130iGS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198708

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-30060iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

8302

8401

88681ASWITCH, HEATER CONTROL VACUUM, NO.1

main88681-30350iGS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198708

88681BSWITCH, HEATER CONTROL VACUUM, NO.2

main88681-30370iGS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198708

88681CSWITCH, HEATER CONTROL VACUUM, NO.3

main88681-30380iMS123,125..SED198308-198509

main88681-30380iGS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198708

5593314020GUIDE, LEVER, NO.2

main55933-14020

9356755016

main93567-55016

13 parts on this diagram · 6 diagrams in section
