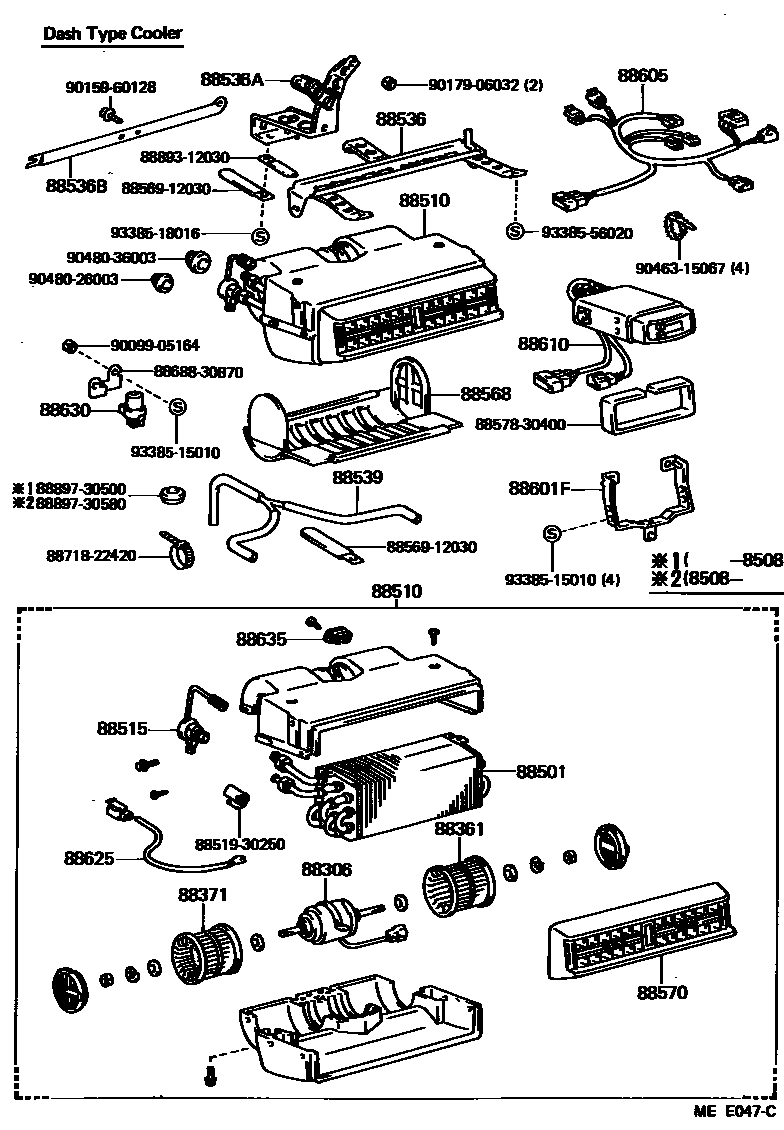

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0005 1 0006 1 0008 1 0010 1 0011 1

88306MOTOR SUB-ASSY, COOLER BLOWER, NO.1

main88550-30320iGS120,121,MS125..SED..4HC..(ROY,SAL,SDX)198308-198708

RR COOLER

main88550-60030iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

HANGING TYPE

88361FAN, COOLER BLOWER, NO.1

main88541-10010iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

HANGING TYPE

main88541-30280iGS120,121,MS125..SED..4HC..(ROY,SAL,SDX)198308-198708

RR COOLER

88371FAN, COOLER BLOWER, NO.2

main88541-10020iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30570iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

DASH TYPE

main88501-30580iGS120,121,MS125..(SED,WG)..4HC..(ROY,SAL,SDX)198308-198708

RR COOLER

main88501-30590iGS121,MS123,125..ROY198308-198601

FR COOLER

sub88501-30591

main88501-30591iGS120,121,MS125..ROY,SSL198601-198708

FR COOLER

main88501-30610iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198601

sub88501-30611

main88501-30611iLS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198601-198708

88510UNIT ASSY, COOLER

main88510-30780iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

DASH TYPE

main88510-30850iGS121..ROY198308-198509

RR COOLER,W/*MPAAC

main88510-30860iGS121,MS123,125..ROY198308-198509

RR COOLER

main88510-30870iGS121..ROY198308-198509

FR COOLER,W/*MPAAC

main88510-30880iGS121,MS123,125..ROY198308-198504

FR COOLER

main88510-30881iGS121,MS125..ROY198504-198509

FR COOLER

main88510-3A050iGS120,121,LS120..HT..(SAL,SPE,SSL)198308-198708

RR COOLER

main88510-3A060iGS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509

main88510-3A070iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

main88510-3A100iMS125198509-198708

FR COOLER,W/*MPAAC

main88510-3A110iGS121,MS125198509-198708

FR COOLER

main88510-3A140iMS125198509-198708

RR COOLER,W/*MPAAC

main88510-3A150iGS121,MS125..ROY198509-198708

RR COOLER

sub88510-30860

main88510-3A160iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL)198509-198708

88515VALVE, COOLER EXPANSION

main88515-20040iYS120;GS120..4H;LS120..STD;GS120..5F..STD;LS120..4H..DLX;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG)198308-198708

main88515-22070iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)198308-198510

FR COOLER

sub88515-22071

main88515-30310iGS120,121,MS125..(SED,WG)..4HC..(ROY,SAL,SDX)198308-198708

RR COOLER

main88515-30320iGS12#,LS12#,MS125..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)198510-198708

FR COOLER

sub88515-22071

main88515-95400iYS120;GS120..4H;LS120..STD;GS120..5F..STD;LS120..4H..DLX;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG)198308-198708

DASH TYPE

88536BRACKET, COOLING UNIT, NO.1

main88536-30740iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

main88688-30820iGS121,MS123,125..ROY,SSL198308-198708

NO.1

main88688-30870iGS121,MS125198308-198708

NO.2

main88688-3A040iGS121,MS125..ROY198504-198509

NO.2

88536ABRACKET, COOLING UNIT, NO.2

main88536-30750iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

88536BBRACKET, COOLING UNIT, NO.3

main88536-30760iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30580iGS120,121,MS125..SED..4HC..(ROY,SAL,SDX)198308-198708

RR COOLER

main88539-30590iGS12#,LS12#,MS12#,YS120198308-198708

FR COOLER

main88539-30600iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

DASH TYPE

88568FILTER, COOLER UNIT COVER

main88568-30310iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

88570GRILLE SUB-ASSY, COOLER AIR OUTLET

main88570-30600iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

HANGING TYPE

main88570-30630-02iLS120..HT..TDE;LS120..SDX..TDE;GS121,LS120,MS123,125..(HT,SED)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,TD,TWC)198308-198509

AIROUTLET=CENTER,DEEP MAROON,RED/MAROON,TRIM3#

main88570-30630-04iGS120,MS120..HT198308-198509

AIROUTLET=CENTER BLUE,BLUE,TRIM8#

main88570-30630-04iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198604

AIROUTLET=CENTER,BLUE,BLUE,TRIM8#

main88570-30630-05iGS120,MS120..HT198308-198509

AIROUTLET=CENTER,BEIGE,BEIGE,TRIM4#

main88570-30630-06iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

AIROUTLET=CENTER,BROWN,BROWN,TRIM4#

main88570-30630-12iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

AIROUTLET=CENTER,MAROON,MAROON,TRIM3#

main88570-30630-14iGS120,121,LS120,MS125..HT..(ROY,SAL)198604-198708

AIROUTLET=CENTER,BLUE,BLUE,TRIM8#

88601FBRACKET, COOLER CONTROL SWITCH

main88688-30890iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88608-30460iGS121..ROY198308-198708

RR COOLER,W/*MPAAC

main88608-30470iGS120,121,MS125..SED..4HC..(ROY,SAL,SDX)198308-198708

RR COOLER

main88608-30480iGS120,LS120..WG..SAL198308-198504

FRONT COOLER,W/*AAC

main88608-30481iGS120,LS120..WG..SAL198504-198509

FR COOLER,W/*AAC

main88608-30510iLS120..STD;LS120..4H..DLX;GS126,LS126..4H198308-198708

main88608-30520iMS120,YS120..LPG198308-198708

main88608-30530iLS120..STD;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198308-198509

DASH TYPE

main88608-30540iMS120,YS120..LPG198308-198708

DASH TYPE

main88608-30550iGS120,LS120..WG..SAL198509-198708

FR COOLER,W/*AAC

main88608-30570iGS120..4H;GS120..5F..STD198509-198708

main88608-30590iLS120..STD;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198509-198708

DASH TYPE

88610SWITCH ASSY, COOLER CONTROL

main88610-30590iMS120,YS120..LPG198308-198708

IDLE UP SWITCH

main88610-60040iLS120..STD;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198308-198708

main88610-60050iMS120..LPG198308-198708

COOLER CONTROLER

main88660-87001iYS120198308-198708

COOLER CONTROLER

88625THERMISTOR, COOLER, NO.1

main88625-20040iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

main88625-30590iMS123,125198308-198708

W/*MPAAC

main88625-60020iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

DASH TYPE

88630RELAY ASSY, COOLER

main90987-02004iGS120,121,MS125..SED..4HC..(ROY,SAL,SDX)198308-198708

M4 TYPE

main90987-03001iGS12#,LS12#,MS123,125198308-198708

B4 TYPE

88635RESISTOR, COOLER UNIT BLOWER

main88635-30370iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

sub88635-0B010

8851930250HOLDER, REMOTE BULB

main88519-30250

8856912030CLAMP (FOR COOLER RELAY)

main88569-12030

8857830400PAKING, COOLER AIR DUCT

main88578-30400

8868830870BRACKET, COOLER DIAPHRAGM

main88688-30870

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

8889312030COLLAR (FOR COOLER IDLER PULLEY)

main88893-12030

8889730500VALVE, COOLER MAGNET

main88897-30500

8889730580VALVE, COOLER MAGNET

main88897-30580

9009905164

main90099-05164

9015960128

main90159-60128

9017906032

main90179-06032

9046315067

main90463-15067

9048026003

main90480-26003

9048036003

main90480-36003

9338515010

main93385-15010

9338518016

main93385-18016

9338556020

main93385-56020

35 parts on this diagram · 8 diagrams in section
