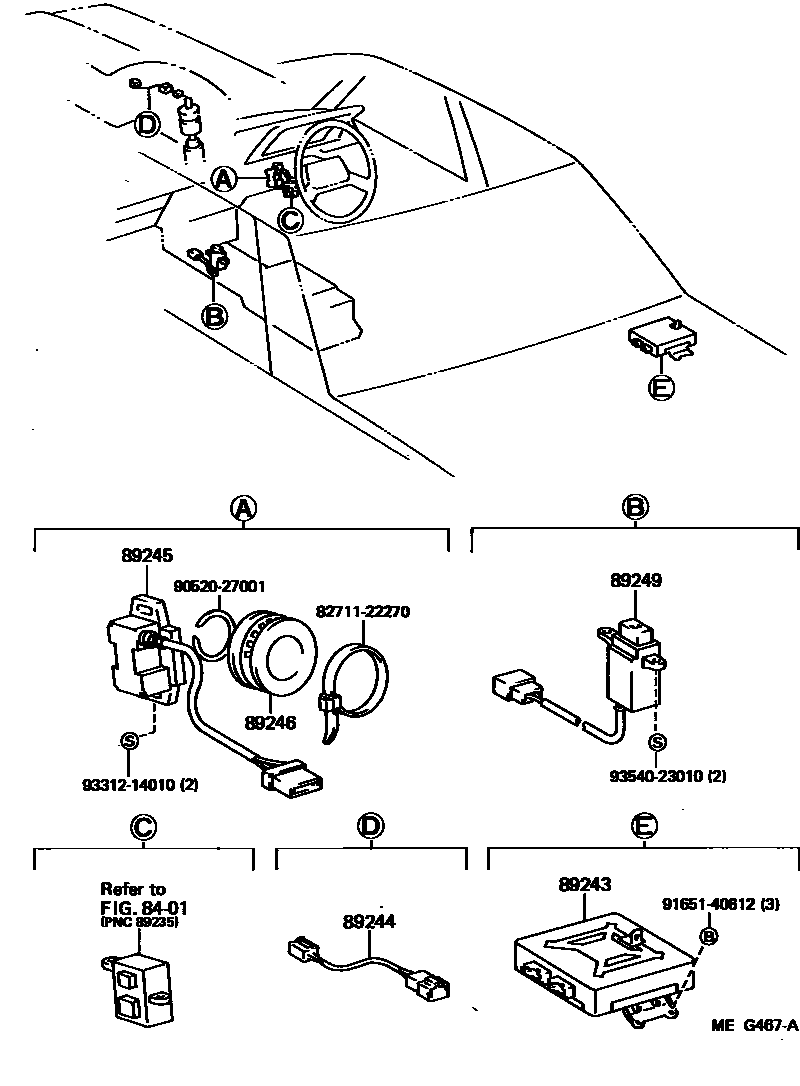

ELECTRONIC MODULATED SUSPENSION

8401

89243COMPUTER, ABSORBER CONTROL

main89243-30010iMS125..4FC198509-198708

89244WIRE, ABSORBER CONTROL, REAR

main89244-30010iMS125..4FC198509-198708

89245SENSOR, STEERING

main89245-30010iMS125..4FC198509-198708

89246DISC, SENSOR STEERING

main89246-22010iMS125..4FC198509-198708

89249SWITCH, ABSORBER CONTROL

main89249-30010iMS125..4FC198509-198708

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9052027001

main90520-27001

9165140612

main91651-40612

9331214010

main93312-14010

9354023010

main93540-23010

11 parts on this diagram · 1 diagram in section
