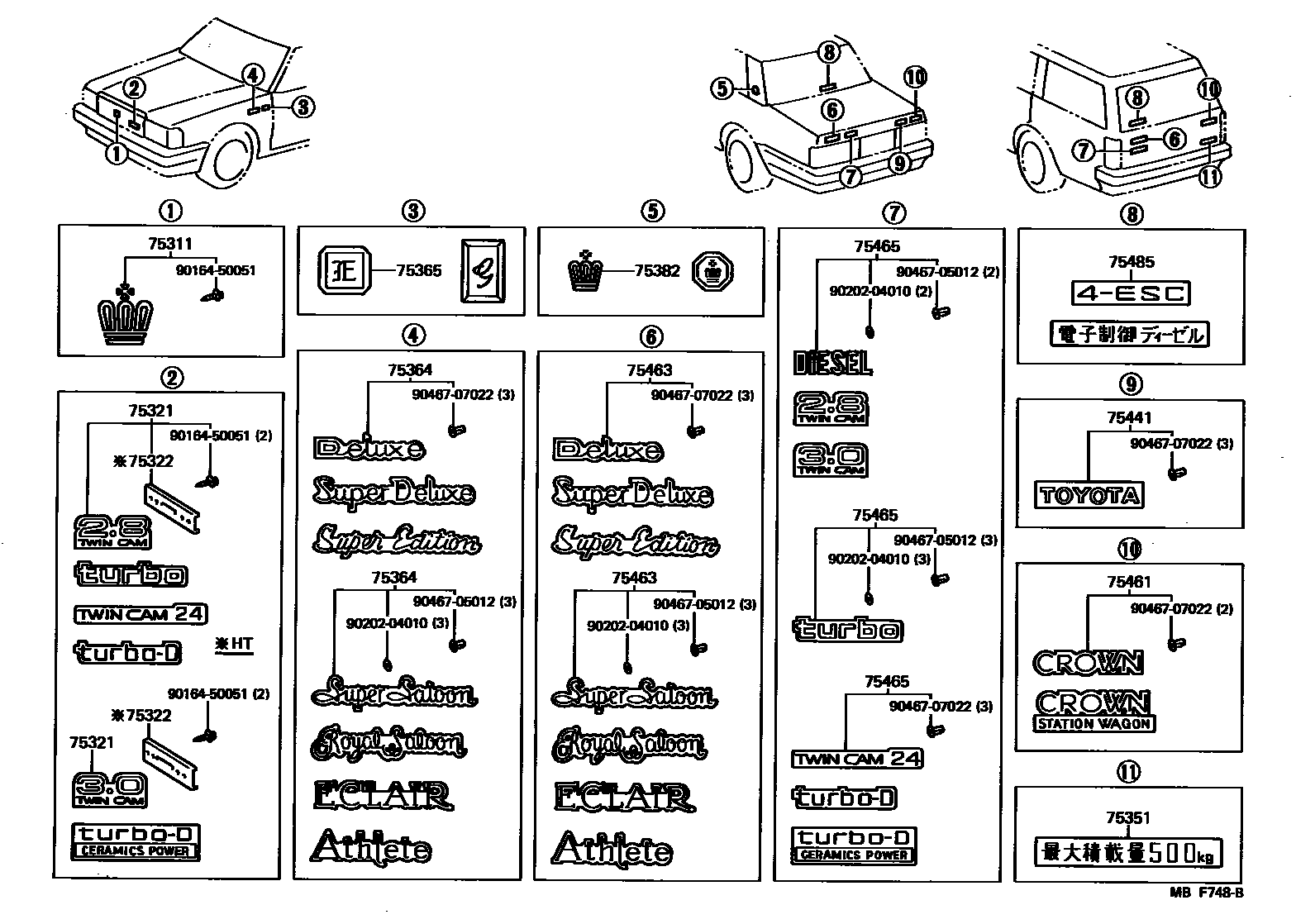

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-30180iGS12#,LS12#,MS12#,YS120198509-198708

main75311-39155iGS12#,LS12#,MS120,YS120..DLX,ROY,SAL,SDX,SPE198308-198509

main75311-39165iGS120,126,LS12#,YS120..STD198308-198509

sub75311-39155

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-30270iMS125198408-198509

3.0 TWIN CAM

main75321-30280iLS120..(SED,WG)..TDE198408-198509

TURBO-D CERMICS POWER

main75321-30290iLS120..HT..TDE198408-198509

TURBO-D CERMICS POWER

main75321-30300iMS125..HT..4FC198501-198509

THE 30TH LIMITED,3.0 TWIN CAM

main75321-30310iGS121..SED..SPC198509-198708

TWIN CAM 24 SUPER CHARGER

main75321-30320iGS121..SED..TWC198509-198708

TWIN CAM 24

main75321-30330iLS120..SDX..TD198509-198708

TURBO-D

main75321-30340iMS125..SED198509-198708

3.0 TWIN CAM

main75321-30350iLS120..(SED,WG)..TDE198509-198708

TURBO-D CERMICS POWER

main75321-30360iGS121..HT..SPC198509-198708

TWIN CAM 24 SUPER CHARGER

main75321-30370iGS121..HT..TWC198509-198708

TWIN CAM 24

main75321-30380iLS120..HT..TD198509-198708

TURBO-D

main75321-30390iMS125..HT198509-198708

3.0 TWIN CAM

main75321-30400iLS120..HT..TDE198509-198708

TURBO-D CERMICS POWER

main75321-39165iMS123198308-198408

2.8 TWIN CAM

main75321-39175iMS120..SED..TBO198308-198509

TURBO

main75321-39185iGS121..SED198308-198509

TWIN CAM 24

main75321-39195iLS120..SDX..TD198308-198509

TURBO-D

main75321-39205iMS120..HT198308-198509

TURBO

main75321-39215iGS121..HT198308-198509

TWIN CAM 24

main75321-39225iLS120..HT..TD198308-198509

TURBO-D

75322RETAINER, RADIATOR GRILLE NAME PLATE

main75324-30100iGS121,LS120,MS12#..HT198308-198509

main75324-30110iGS121,LS120..HT198509-198708

75351PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)

main75471-21010iGS126,LS126198308-198708

75364PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)

main75361-30151iGS121,MS123,125..ROY198308-198708

ROYAL SALOON

main75361-30171iGS120,121,LS120,MS120..SPE198308-198708

SUPER EDITION

main75361-30180iGS120,LS120,MS120,YS120..DLX198308-198708

DELUXE

main75361-30190iGS120,126,LS120,MS120..SDX198308-198708

SUPER DELUXE

main75361-30200iGS120,LS120,MS120..SAL198308-198708

SUPER SALOON

main75361-30210iGS120,LS120,MS120..SPE198405-198509

ECLAIR

main75361-30220iGS121..SPE198405-198509

ATHLETE

main75361-30220iGS121..SSL198612-198704

ATELETE

main75361-30221iGS121..SSL198605-198608

ATELETE

main75361-30230iMS125..HT..4FC198501-198509

THE 30TH LIMITED,ROYAL SALOON

main75361-30240iGS120,121,LS120..SSL198509-198708

SUPER SELECT

75365EMBLEM, FRONT FENDER

main75351-30010iGS120,LS120,MS120..(HT,SED)..SAL198308-198708

E

main75351-30020iMS123,125198308-198708

G

75382EMBLEM, QUARTER PANEL OR SIDE PANEL

main75371-30080iGS120,LS120,MS120,YS120..DLX,STD198308-198708

main75371-30090iGS120,121,LS120,MS120..(HT,SED)..(SAL,SDX,SPE)198308-198708

sub75371-30100

main75371-30100iGS121,MS123,125..ROY198308-198708

75441PLATE, REAR NAME, NO.1

main75431-30170iGS120,121,LS120,MS12#..HT198308-198708

TOYOTA

main75431-30180iMS125..HT..4FC198501-198509

THE 30TH LIMITED,TOYOTA

75461PLATE, REAR NAME, NO.2 (MODEL MARK)

main75441-91703iGS120,LS120..WG198308-198708

CROWN STATION WAGON

main75442-30080iGS12#,LS12#,MS12#..HT,V198308-198708

CROWN

sub75442-30110

main75442-30100iMS125..HT..4FC198501-198509

THE 30TH LIMITED,CROWN

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75361-30151iGS121,MS123,125..ROY198308-198708

ROYAL SALOON

main75361-30171iGS120,121,LS120,MS120..SPE198308-198708

SUPER EDITION

main75361-30180iGS120,126,LS12#,MS120,YS120..DLX198308-198708

DELUXE

main75361-30190iGS120,126,LS120,MS120..SDX198308-198708

SUPER DELUXE

main75361-30200iGS120,LS120,MS120..SAL198308-198708

SUPER SALOON

main75361-30210iGS120,LS120,MS120..SPE198405-198509

ECLAIR

main75361-30220iGS121..SPE198405-198509

ATHLETE

main75361-30220iGS121..SSL198612-198704

ATELETE

main75361-30221iGS121..SSL198605-198608

ATELETE

main75361-30230iMS125..HT..4FC198501-198509

THE 30TH LIMITED,ROYAL SALOON

main75361-30240iGS120,121,LS120..SSL198509-198708

SUPER SELECT

75465PLATE, REAR NAME, NO.5 (MECHANISM)

main75441-30101iLS12#..DSL198308-198708

DIESEL

main75441-30130iLS120..TD,TDE198308-198708

sub75441-30120

main75441-30140iMS120..TBO198308-198509

TURBO

main75441-30150iGS121..TWC198308-198708

sub75444-22130

main75441-30160iMS123198308-198408

2.8 TWIN CAM

main75441-30180iMS125198408-198708

3.0 TWIN CAM

sub75441-30210

main75441-30190iLS120..TDE198408-198708

main75441-30210iMS125..HT..4FC198501-198509

THE 30TH LIMITED,3.0 TWIN CAM

main75441-30220iGS121..SPC198509-198708

75485PLATE, BACK WINDOW NAME

main75485-30030iLS120..TDE198308-198708

main75485-30040iMS123,125198308-198708

4-ESC

sub75485-22050

9016450051

main90164-50051

9020204010

main90202-04010

9046705012

main90467-05012

9046707022

main90467-07022

16 parts on this diagram · 2 diagrams in section
