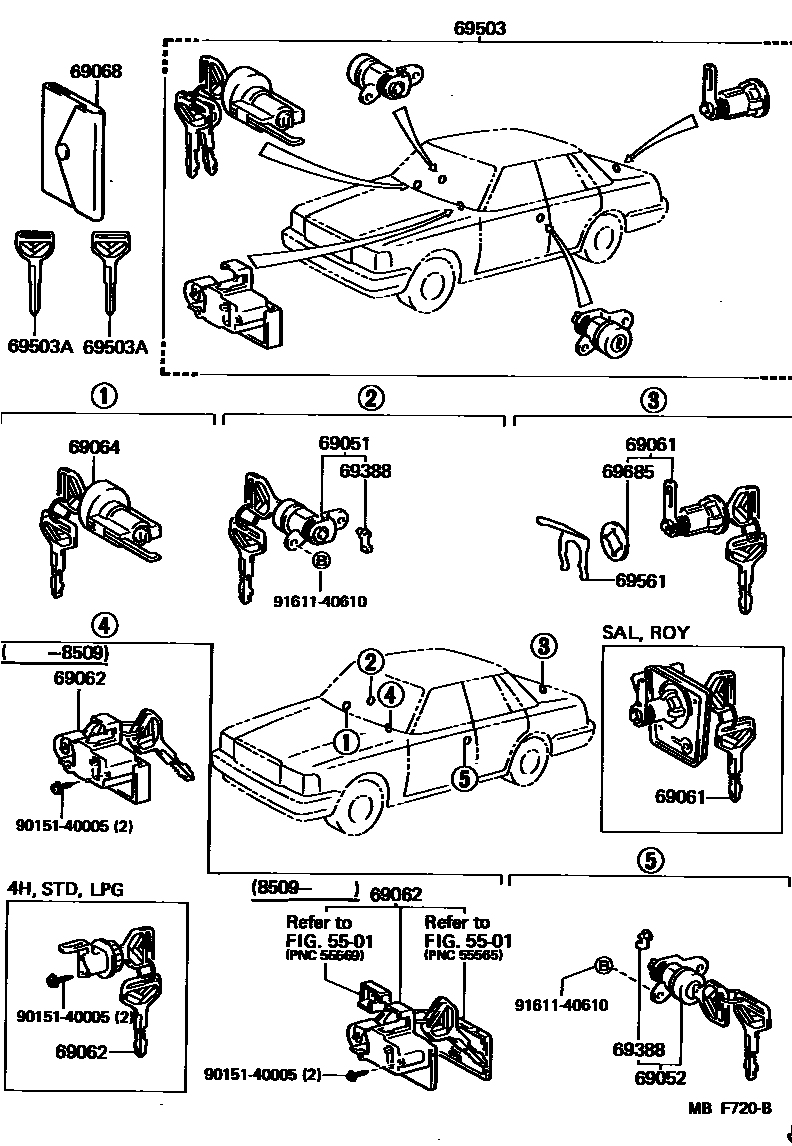

LOCK CYLINDER SET

0001 1 0002 1

5501

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-30140iGS12#,LS12#,MS12#,YS120198308-198708

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30130iGS12#,LS12#,MS12#,YS120198308-198708

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-30080iGS120..4H;LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG198308-198708

main69055-30100iGS120,121,LS120,MS120..SPE198405-198509

ECLAIR,ATHLETE

main69055-30100iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL)198308-198509

main69055-30110iGS120,121,LS120,MS120..SPE198308-198708

main69055-30120iMS125..HT..4FC198501-198509

THE 30TH LIMITED

main69055-30130iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SSL)198509-198708

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69009-91704iGS120,LS120..WG198308-198708

DECK

main69056-30050iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

sub69056-90P01

main69056-30060-02iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub69056-30060

main69056-30060-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub69056-30060

main69056-30060-04iGS120,121,LS120,MS12#..ROY,SAL,SPE198308-198509

BLUE,BLUE,TRIM8#

sub69056-30060

main69056-30060-05iGS120,121,LS120,MS12#..ROY,SAL,SPE198308-198509

BEIGE,BEIGE,TRIM4#

sub69056-30060

main69056-30080-02iGS120,121,LS120,MS125..ROY,SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

sub69056-30080

main69056-30080-04iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX)198509-198708

BLUE,BLUE,TRIM8#

sub69056-30080

main69056-30080-06iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

sub69056-30080

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-30040iGS12#,LS12#,MS12#,YS120198308-198708

sub69057-22050

main69057-30060iMS125..4FC198509-198708

G SPEC

sub69057-22060

69068COVER SUB-ASSY, KEY

main69555-20010iGS12#,LS12#,MS12#,YS120198308-198708

69388SNAP, ROD(FOR DOOR LOCK)

main69759-30040iGS12#,LS12#,MS12#,YS120198308-198708

RH

main69759-30050iGS12#,LS12#,MS12#,YS120198308-198708

LH

69503CYLINDER SET, LOCK

main69005-30320iGS120,LS120,YS120..STD198308-198708

sub69005-30330

main69005-30330iMS120,YS120..DLX,SDX;GS120,LS120..4H..DLX198308-198708

main69005-30340-02iGS120,121,LS120,MS120..SPE198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub69005-30340

main69005-30340-04iGS120,121,LS120,MS120..SPE198308-198509

BLUE,BLUE,TRIM8#

sub69005-30340

main69005-30340-05iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

sub69005-30340

main69005-30360-02iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub69005-30360

main69005-30360-02iGS120,121,LS120,MS120..SPE198405-198509

ECLAIR,ATHLETE,DEEP MAROON,RED/MAROON,TRIM3#

sub69005-30360

main69005-30360-04iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

sub69005-30360

main69005-30360-04iGS120,121,LS120,MS120..SPE198405-198509

ECLAIR,ATHLETE,BLUE,BLUE,TRIM8#

sub69005-30360

main69005-30360-05iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

sub69005-30360

main69005-30380iMS125..HT..4FC198501-198509

THE 30TH LIMITED

main69005-30390iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SSL)198509-198708

main69005-30400iMS125..4FC198509-198708

G SPEC

main69005-30410iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198509-198708

main69005-91708iGS126,LS126..4H198308-198708

main69005-91709-04iGS126,LS126..4FC,5F198308-198509

BLUE,BLUE,TRIM8#

sub69005-91709

main69005-91709-05iGS126,LS126..4FC,5F198308-198509

BEIGE,BEIGE,TRIM4#

sub69005-91709

main69005-91710iGS120..4H..SDX198308-198708

main69005-91711-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub69005-91711

main69005-91711-04iGS120,LS120..WG..(4FC,4HC,5F)198308-198509

BLUE,BLUE,TRIM8#

sub69005-91711

main69005-91711-05iGS120,LS120..WG..(4FC,4HC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

sub69005-91711

main69005-91712iGS120,LS120..WG..(4FC,4HC,5F)198509-198708

main69005-91713iGS126,LS126..4FC,5F198509-198708

69503AKEY, BLANK

main90999-00099iGS12#,LS12#,MS12#,YS120198308-198708

main90999-00100iGS120,121,LS120,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL198308-198708

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-30040iGS120,121,LS120,MS12#,YS120..SED198308-198708

main69561-30050iGS120,121,LS120,MS12#..HT198308-198708

69685PAD, LOCK CYLINDER

main69513-14010iGS120,LS120..WG198308-198708

DECK

main69563-32010iGS120,121,LS120,MS120,YS120..(HT,SED)..(DLX,SDX,SPE,STD)198308-198708

9015140005

main90151-40005

9161140610

main91611-40610

14 parts on this diagram · 2 diagrams in section
