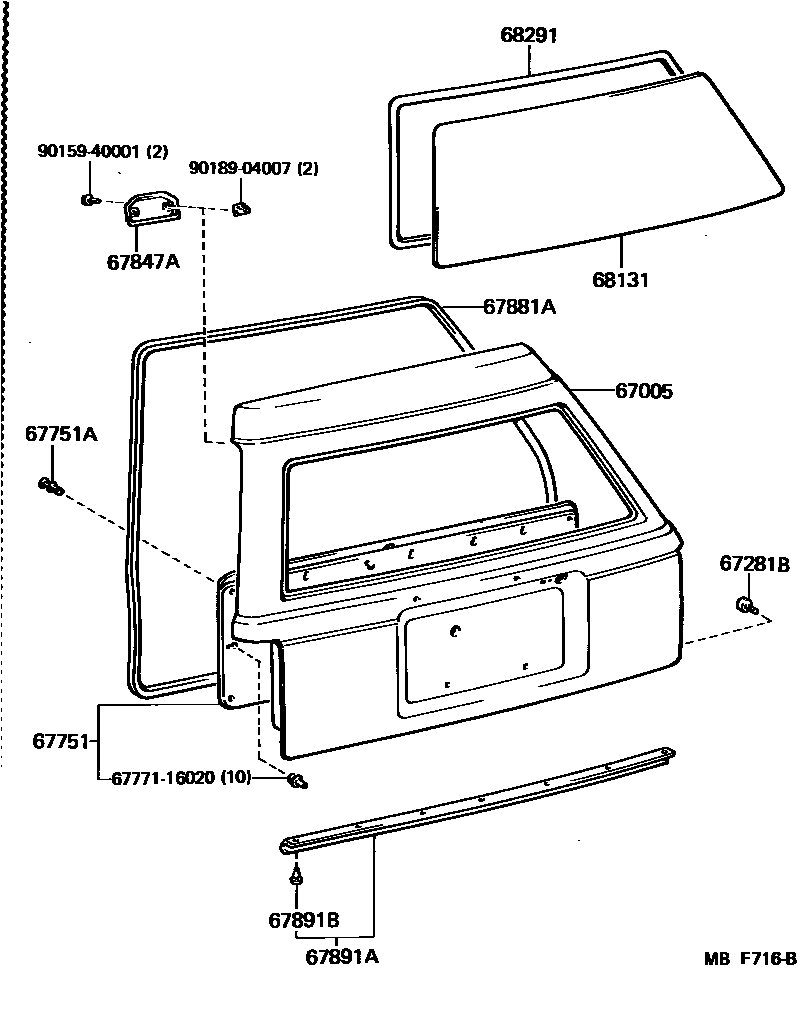

BACK DOOR PANEL & GLASS

0001 1 0002 1

67005PANEL SUB-ASSY, BACK DOOR

main67005-91741iGS126,LS126..DLX,STD198308-198310

main67005-91742iGS126,LS126198308-198310

W/*RW

main67005-91743iGS120,LS120..WG..SDX198308-198310

main67005-91745iGS120,LS120..WG..SAL198308-198310

sub67005-91743

main67005-91758iGS126,LS126..DLX,STD198310-198708

main67005-91759iGS126,LS126198310-198708

W/*RW

main67005-91760iGS120,LS120..WG..SDX198310-198708

main67005-91762iGS120,LS120..WG..SAL198310-198311

sub67005-91760

67281BSTOPPER, BACK DOOR, LOWER

main67281-91605iGS120,126,LS12#..V,WG198308-198708

67751BOARD, BACK DOOR TRIM

main64780-91716-04iGS126,LS126198308-198708

BLUE,BLUE,TRIM8#

main64780-91716-05iGS126,LS126..4FC,5F198308-198509

BEIGE,BEIGE,TRIM4#

main64780-91716-06iGS126,LS126..4FC,5F198509-198708

BROWN,SEPIA BROWN,TRIM4#

main64780-91717-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,MAROON,TRIM3#

main64780-91717-04iGS120,LS120..WG198308-198509

BLUE,LIGHT BLUE,TRIM8#

main64780-91717-05iGS120,LS120..WG..(4FC,4HC,5F)198308-198509

BEIGE,BROWN,TRIM4#

main64780-91718-02iGS120,LS120..WG..SAL198509-198708

MAROON,MAROON,TRIM3#

main64780-91718-04iGS120,LS120..WG198509-198708

BLUE,BLUE,TRIM8#

main64780-91718-06iGS120,LS120..WG..(4FC,5F)..SDX198509-198708

BROWN,SEPIA BROWN,TRIM4#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08114-22iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub90467-08114

main90467-08114-30iGS120,126,LS12#..(V,WG)..(4FC,4HC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

sub90467-08114

main90467-08114-32iGS120,LS120..WG..SAL198509-198708

MAROON,MAROON,TRIM3#

sub90467-08114

main90467-08114-34iGS120,126,LS12#..V,WG198308-198708

BLUE,BLUE,TRIM8#

sub90467-08114

main90467-08114-56iGS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX)198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub90467-08114

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-91701iGS120,126,LS12#..(V,WG)..(DLX,SDX,STD)198308-198708

67881AWEATHERSTRIP, BACK DOOR

main67881-91255iGS120,126,LS12#..V,WG198308-198708

67891ASEAL, BACK DOOR

main67891-91701iGS120,126,LS12#..V,WG198308-198708

67891BCLIP(FOR BACK DOOR SEAL)

main90467-08011iGS120,126,LS12#..V,WG198308-198708

68131GLASS, BACK DOOR

main68105-91705iGS126,LS126..DLX198308-198708

W/ANTENNA,*TT,T=3.5

sub68105-91706

main68105-91706iGS126,LS126..DLX,SDX198308-198708

W/ANTENNA,*EHTT,T=3.5

main68105-91711iGS120,LS120..WG198308-198708

W/ANTENNA,*EHTT,T=4.0

main68105-91712iGS120,LS120..WG..SAL198308-198708

W/ANTENNA,BRONZE,*EHTT,T=4.0

main68131-91703iGS126,LS126..STD198308-198708

sub68105-91714

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-91704iGS126,LS126198308-198708

6777116020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16020

9015940001

main90159-40001

9018904007

main90189-04007

13 parts on this diagram · 2 diagrams in section
