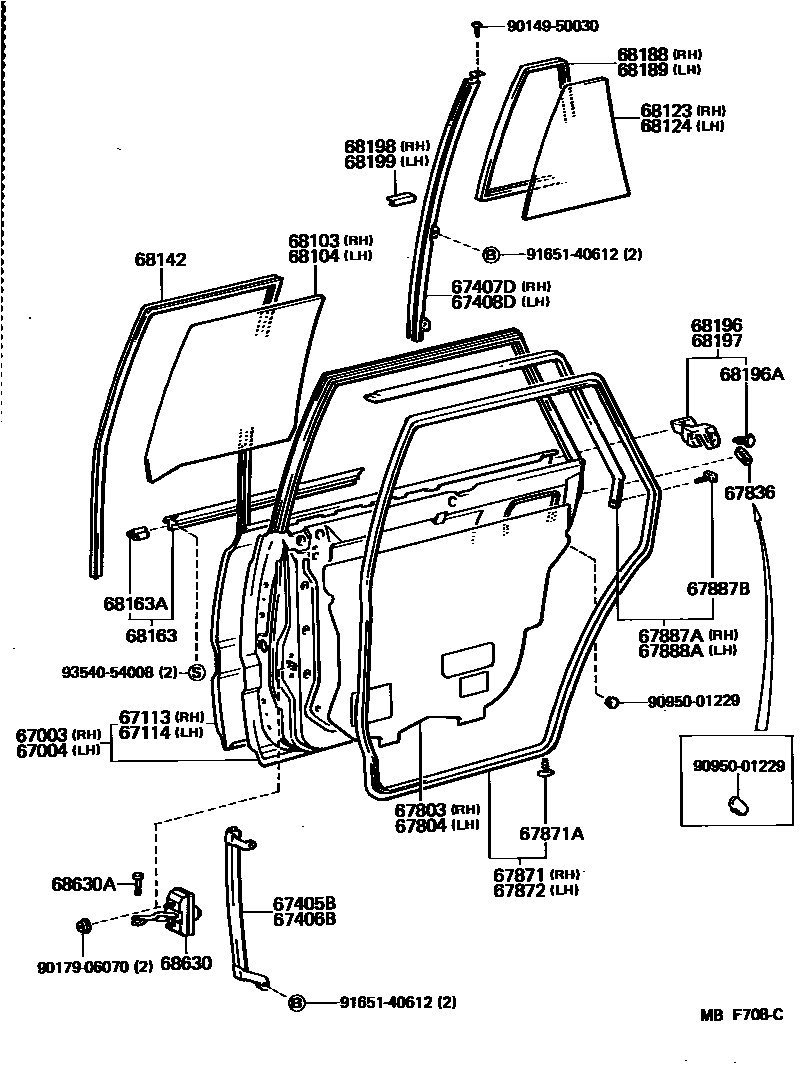

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30230iGS120,121,LS120,MS12#,YS120..SED198308-198506

sub67003-30290

main67003-30270iGS120,121,LS120,MS120..HT198308-198509

sub67003-30905

main67003-30280iMS123,125..HT198308-198708

main67003-30290iGS120,121,LS120,MS12#,YS120..SED198506-198708

main67003-91702iGS120,126,LS12#..V,WG198308-198708

sub67003-91707

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30230iGS120,121,LS120,MS12#,YS120..SED198308-198506

sub67004-30290

main67004-30270iGS120,121,LS120,MS120..HT198308-198509

sub67004-30904

main67004-30280iGS120,121,LS120,MS125..HT198308-198708

main67004-30290iGS120,121,LS120,MS12#,YS120..SED198506-198708

main67004-91704iGS120,126,LS12#..V,WG198308-198708

sub67004-91707

67113PANEL, REAR DOOR, OUTER RH

main67113-30100iGS12#,LS12#,MS12#,YS120..SED,V,WG198506-198708

main67113-30130iGS120,121,LS120,MS120..HT198308-198404

sub67113-30903

main67113-30140iMS123..HT198308-198404

sub67113-30903

main67113-30150iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198506

sub67113-30100

main67113-30903iGS120,121,LS120,MS12#..HT198404-198511

sub67113-30905

main67113-30905iGS120,121,LS120,MS125..HT198511-198708

67114PANEL, REAR DOOR, OUTER LH

main67114-30110iGS12#,LS12#,MS12#,YS120..SED,V,WG198506-198708

main67114-30140iGS120,121,LS120,MS120..HT198308-198404

sub67114-30904

main67114-30150iMS123..HT198308-198404

sub67114-30904

main67114-30160iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198506

sub67114-30110

main67114-30904iGS120,121,LS120,MS12#..HT198404-198511

sub67114-30905

main67114-30905iGS120,121,LS120,MS125..HT198511-198708

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-30050iGS120,121,LS120,MS12#..HT198308-198708

main67405-30070iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-30070iGS120,121,LS120,MS12#..HT198308-198708

main67406-30080iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-30080iGS120,121,LS120,MS12#,YS120..SED198308-198708

main67407-30090iGS120,121,LS120,MS12#..HT198308-198708

main67407-91701iGS120,126,LS12#..V,WG198308-198708

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-30070iGS120,121,LS120,MS12#,YS120..SED198308-198708

main67408-30080iGS120,121,LS120,MS12#..HT198308-198708

main67408-91701iGS120,126,LS12#..V,WG198308-198708

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-30160iGS120,126,LS12#,MS120,YS120..SED,V,WG198308-198604

sub67841-30180

main67841-30170iGS120,121,LS120,MS120..HT..(SAL,SPE,SSL)198308-198604

sub67841-30190

main67841-30180iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main67841-30190iGS120,121,LS120,MS125..HT198308-198708

main67841-30200iGS120,126,LS12#,MS120,YS120..SED,V,WG198308-198604

COLD SPEC

sub67841-30210

main67841-30210iGS121,MS123,125..SED198308-198708

COLD SPEC

main67841-30220iGS120,121,LS120,MS120..HT..(SAL,SPE,SSL)198308-198604

COLD SPEC

sub67841-30230

main67841-30230iGS121,MS123,125..HT..ROY198308-198708

COLD SPEC

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-30160iGS120,126,LS12#,MS120,YS120..SED,V,WG198308-198604

sub67841-30180

main67841-30170iGS120,121,LS120,MS120..HT..(SAL,SPE,SSL)198308-198604

sub67841-30190

main67841-30180iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main67841-30190iGS120,121,LS120,MS125..HT198308-198708

main67842-30070iGS120,126,LS12#,MS120,YS120..SED,V,WG198308-198604

COLD SPEC

sub67842-30080

main67842-30080iGS121,MS123,125..SED198308-198708

COLD SPEC

main67842-30090iGS120,121,LS120,MS120..HT..(SAL,SPE,SSL)198308-198604

COLD SPEC

sub67842-30100

main67842-30100iGS121,MS123,125..HT..ROY198308-198708

COLD SPEC

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iLS120..DLX,SDX;GS120..SED..(DLX,SDX);GS120,LS120..WG..(EFI,TDE)198308-198708

COLD SPEC

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30100iGS120,121,LS120,MS12#,YS120..SED198308-198708

main67871-30120iGS120,121,LS120,MS12#..HT198308-198708

main67871-91704iGS120,126,LS12#..V,WG198308-198708

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67868-30040iGS120,121,LS120,MS12#..HT198308-198708

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30100iGS120,121,LS120,MS12#,YS120..SED198308-198609

sub67872-30111

main67872-30111iGS120,121,LS120,MS12#,YS120..SED198609-198708

main67872-30120iGS120,121,LS120,MS12#..HT198308-198708

main67872-91704iGS120,126,LS12#..V,WG198308-198708

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-30020iGS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)198308-198509

DOUBLE WEATHERSTRIP

main67887-30040iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

main67887-30060iGS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)198509-198708

DOUBLE WEATHERSTRIP

main67887-30080iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

main67887-91701iGS120,126,LS12#..(V,WG)..(DLX,SDX,STD)198308-198509

DOUBLE WEATHERSTRIP

main67887-91703iGS120,LS120..WG..SAL198308-198509

main67887-91705iGS120,126,LS12#..(V,WG)..(DLX,SDX,STD)198509-198708

DOUBLE WEATHERSTRIP

main67887-91707iGS120,LS120..WG..SAL198509-198708

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main67869-30020iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

DOUBLE WEATHERSTRIP

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-30020iGS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)198308-198509

DOUBLE WEATHERSTRIP

main67888-30040iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

main67888-30060iGS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)198509-198708

DOUBLE WEATHERSTRIP

main67888-30080iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

main67888-91701iGS120,126,LS12#..(V,WG)..(DLX,SDX,STD)198308-198509

DOUBLE WEATHERSTRIP

main67888-91703iGS120,LS120..WG..SAL198308-198509

main67888-91705iGS120,126,LS12#..(V,WG)..(DLX,SDX,STD)198509-198708

DOUBLE WEATHERSTRIP

main67888-91707iGS120,LS120..WG..SAL198509-198708

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-30220iYS120..STD198308-198708

*TT,T=4.0

main68113-30230iGS120,LS120,YS120..STD198308-198708

*TEM,T=4.0

sub68113-30220

main68113-30240iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

BRONZE,*TT,T=4.0

main68113-30250iGS120,121,LS120,MS12#..HT198308-198708

*TT,T=5.0

main68113-30260iGS120,121,LS120,MS12#..HT198308-198708

BRONZE,*TT,T=5.0

main68113-91703iGS126,LS126..STD198308-198708

*TEM,T=4.0

sub68113-91704

main68113-91704iGS120,126,LS12#..(V,WG)..(DLX,SAL,SDX)198308-198708

*TT,T=4.0

main68113-91705iGS120,LS120..WG..SAL198308-198708

BRONZE,*TT,T=4.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-30140iGS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX)198308-198708

*TT,T=4.0

main68114-30150iGS120,LS120,YS120..STD198308-198708

*TEM,T=4.0

main68114-30160iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

BRONZE,*TT,T=4.0

main68114-30170iGS120,121,LS120,MS12#..HT198308-198708

*TT,T=5.0

main68114-30180iGS120,121,LS120,MS12#..HT198308-198708

BRONZE,*TT,T=5.0

main68114-91703iGS126,LS126..STD198308-198708

*TEM,T=4.0

sub68114-91704

main68114-91704iGS120,126,LS12#..(V,WG)..(DLX,SAL,SDX)198308-198708

*TT,T=4.0

main68114-91705iGS120,LS120..WG..SAL198308-198708

BRONZE,*TT,T=4.0

68123GLASS, REAR DOOR WINDOW, RH

main68123-30180iYS120..STD198308-198708

*TT,T=3.5

main68123-30190iGS120,LS120,YS120..STD198308-198708

*TEM,T=3.5

sub68123-30180

main68123-30200iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

BRONZE,*TT,T=3.5

main68123-91705iGS126,LS126..STD198308-198708

*TEM,T=3.5

sub68123-91706

main68123-91706iGS120,126,LS12#..(V,WG)..(DLX,SAL,SDX)198308-198708

*TT,T=3.5

main68123-91707iGS120,LS120..WG..SAL198308-198708

BRONZE,*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-30120iGS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX)198308-198708

*TT,T=3.5

main68124-30130iGS120,LS120,YS120..STD198308-198708

*TEM,T=3.5

main68124-30140iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

BRONZE,*TT,T=3.5

main68124-91705iGS126,LS126..STD198308-198708

*TEM,T=3.5

sub68124-91706

main68124-91706iGS120,126,LS12#..(V,WG)..(DLX,SAL,SDX)198308-198708

*TT,T=3.5

main68124-91707iGS120,LS120..WG..SAL198308-198708

BRONZE,*TT=T=3.5

68142RUN, REAR DOOR GLASS

main68142-30070iGS120,121,LS120,MS12#,YS120..SED,WG198308-198509

PLANT.A21-A26

main68142-30090iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198509

PLANT.M21-M22

main68142-30100iGS120,121,LS120,MS12#,YS120..SED,WG198509-198708

PLANT.A21-A26

main68142-30110iGS12#,LS12#,MS12#,YS120..SED,V,WG198509-198708

PLANT.M21-M22

sub68142-30100

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-30090iGS120,126,LS12#,YS120..STD198308-198708

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-30080iGS120,126,LS12#,YS120..STD198308-198708

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-30070iGS120,121,LS120,MS12#,YS120..SED198308-198708

main68188-91702iGS120,126,LS12#..V,WG198308-198708

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-30050iGS120,121,LS120,MS12#,YS120..SED198308-198708

main68189-91702iGS120,126,LS12#..V,WG198308-198708

68196SEAL, REAR DOOR BELT, RH

main68196-30030iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

68196ACLIP(FOR REAR DOOR BELT SEAL)

main67869-12010iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

sub90467-05045

68197SEAL, REAR DOOR BELT, LH

main68197-30030iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

68198SEAL, REAR DOOR BELT, REAR RH

main68198-30020iGS120,126,LS12#,YS120..STD198308-198708

68199SEAL, REAR DOOR BELT, REAR LH

main68198-30020iGS120,126,LS12#,YS120..STD198308-198708

68630CHECK ASSY, REAR DOOR

main68630-30040iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main68630-30050iGS120,121,LS120,MS12#..HT198308-198708

68630APIN(FOR REAR DOOR CHECK)

main68617-30010iGS12#,LS12#,MS12#,YS120198308-198507

sub68617-90K00

main68617-90K00iGS12#,LS12#,MS12#,YS120198507-198708

9014950030

main90149-50030

9017906070

main90179-06070

9095001229

main90950-01229

9165140612

main91651-40612

9354054008

main93540-54008

38 parts on this diagram · 4 diagrams in section
