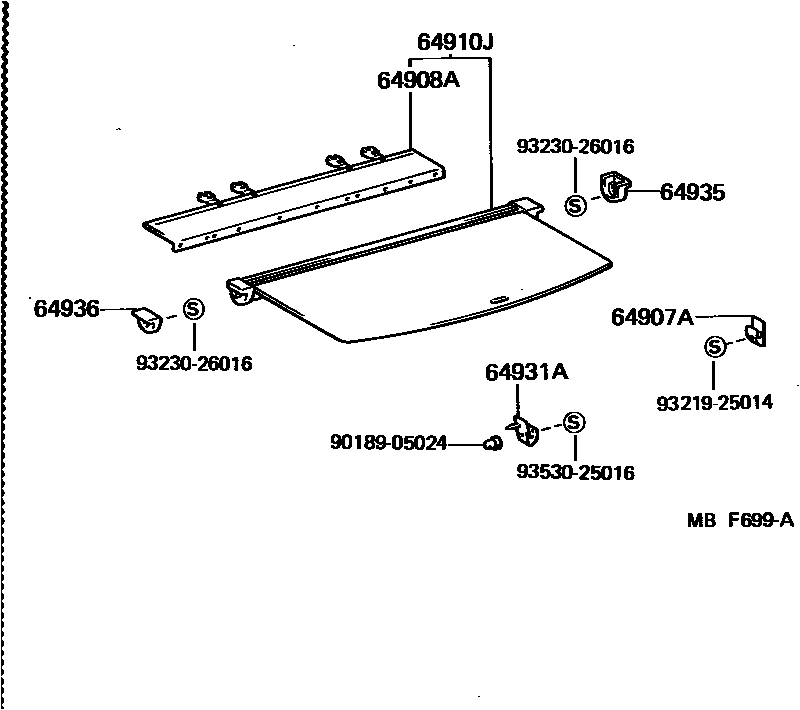

DECK BOARD & DECK TRIM COVER
64907AHOLDER SUB-ASSY, TONNEAU COVER
GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3#
sub74348-14020
64908ACOVER SUB-ASSY, TONNEAU SUB
GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
64910JCOVER ASSY, TONNEAU
GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3#
sub64910-91701
64931AHANGER, TONNEAU COVER
GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3#
sub74348-14020
64935HOLDER, TONNEAU COVER, RH
GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3#
sub64935-91701
64936HOLDER, TONNEAU COVER, LH
GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3#
sub64936-91701
9018905024
main90189-05024
9321925014
main93219-25014
9323026016
main93230-26016
9353025016
main93530-25016
10 parts on this diagram · 2 diagrams in section
