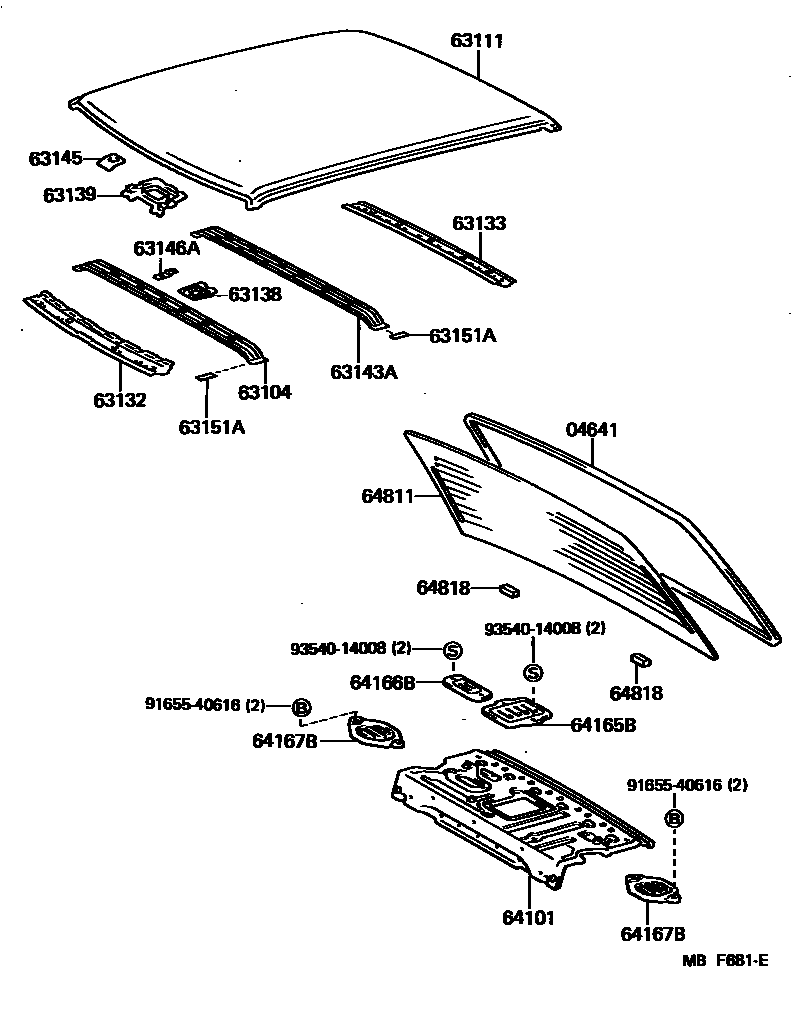

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iGS120,121,LS120,MS12#,YS120..HT,SED198308-198708

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-91704iGS120,126,LS126..(V,WG)..(DLX,SDX,STD)198308-198708

main63141-30050iGS120,121,LS120,MS12#,YS120..SED198308-198708

main63141-30080iGS120,121,LS120,MS12#..HT198308-198708

main63141-91704iGS120,LS120..WG198308-198708

W/SKY WINDOW

main63142-30020iGS121,MS123,125..SED198308-198509

W/MOON ROOF

63111PANEL, ROOF

main63111-30160iGS120,121,LS120,MS12#,YS120..SED198308-198708

main63111-30170iGS121,MS123,125..SED198308-198509

W/MOON ROOF

main63111-30180iGS120,121,LS120,MS12#..HT198308-198708

main63111-30190iGS120,121,LS120,MS12#..HT..(ROY,SAL)198308-198708

W/MOON ROOF

main63111-91704iGS120,126,LS126..(V,WG)..(DLX,SDX,STD)198308-198708

main63111-91705iGS120,LS120..WG198308-198708

W/SKY WINDOW

63132PANEL, WINDSHIELD HEADER, INNER

main63132-30120iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main63132-30130iGS120,121,LS120,MS12#..HT198308-198708

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-30110iGS120,121,LS120,MS12#,YS120..SED198308-198708

main63133-30120iGS120,121,LS120,MS12#..HT198308-198708

63138BRACKET, DOME LAMP, NO.2

main63138-30030iGS120,121,LS120,MS12#,YS120..SED198308-198708

main63138-30040iGS120,121,LS120,MS12#..HT198308-198708

main63138-91701iGS120,LS120..WG198308-198708

W/SKY WINDOW

63139BRACKET, DOME LAMP, NO.3

main63137-30070iMS120..(4H,4HC)..SDX198510-198708

Q PACKAGE

main63139-30040iLS120..4H..STD;MS120,YS120..LPG198412-198708

TAXI SPEC

63143AREINFORCEMENT, ROOF PANEL

main63143-30050iGS120,121,LS120,MS12#..HT198308-198708

main63143-30060iGS120,121,LS120,MS12#,YS120..SED198308-198708

main63148-91702iGS120,126,LS126..(V,WG)..(DLX,SDX,STD)198308-198708

63145REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

main63145-30040iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main63145-30050iGS120,121,LS120,MS12#..HT198308-198708

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-30050iGS121,MS12#..ROY,SAL198308-198708

63151ASPACER, ROOF REINFORCEMENT

main63159-91502×4iMS120,YS120..(4H,4HC)..(SDX,STD)198601-198708

BRIDAL PACKAGE

64101PANEL SUB-ASSY, UPPER BACK

main64101-30130iGS120,121,LS120,MS12#,YS120..SED198308-198509

main64101-30140iGS120,121,LS120,MS12#,YS120..SED198509-198708

main64101-30150iGS120,121,LS120,MS12#..HT198308-198708

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-30010iGS120,121,LS120,MS120..(HT,SED)..(DLX,SAL,SDX,SPE,STD)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-30010iGS120,LS120..HT,SED198509-198708

64167BCOVER, UPPER BACK PANEL HOLE, NO.3

main64167-30010×2iGS120,LS120..DLX,STD198308-198708

64811GLASS, BACK WINDOW

main64801-30200iYS120..STD198509-198708

*EHTT,T=4.0

main64801-30220iGS120,LS120,YS120..STD198308-198708

*EHT,T=4.0

sub64801-30210

main64801-30250iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

BRONZE,*EHTT,T=4.0

main64801-30260iGS120,121,LS120,MS12#..HT198308-198708

*EHTT,T=4.0

main64801-30270iGS120,121,LS120,MS12#..HT198308-198708

BRONZE,*EHTT,T=4.0

main64811-30400iGS120,LS120,YS120..STD198308-198708

*TEM,T=4.0

64818SPACER, BACK WINDOW GLASS

main64818-30050×2iGS120,121,LS120,MS12#,YS120..HT,SED198308-198708

9165540616

main91655-40616

9354014008

main93540-14008

19 parts on this diagram · 6 diagrams in section
