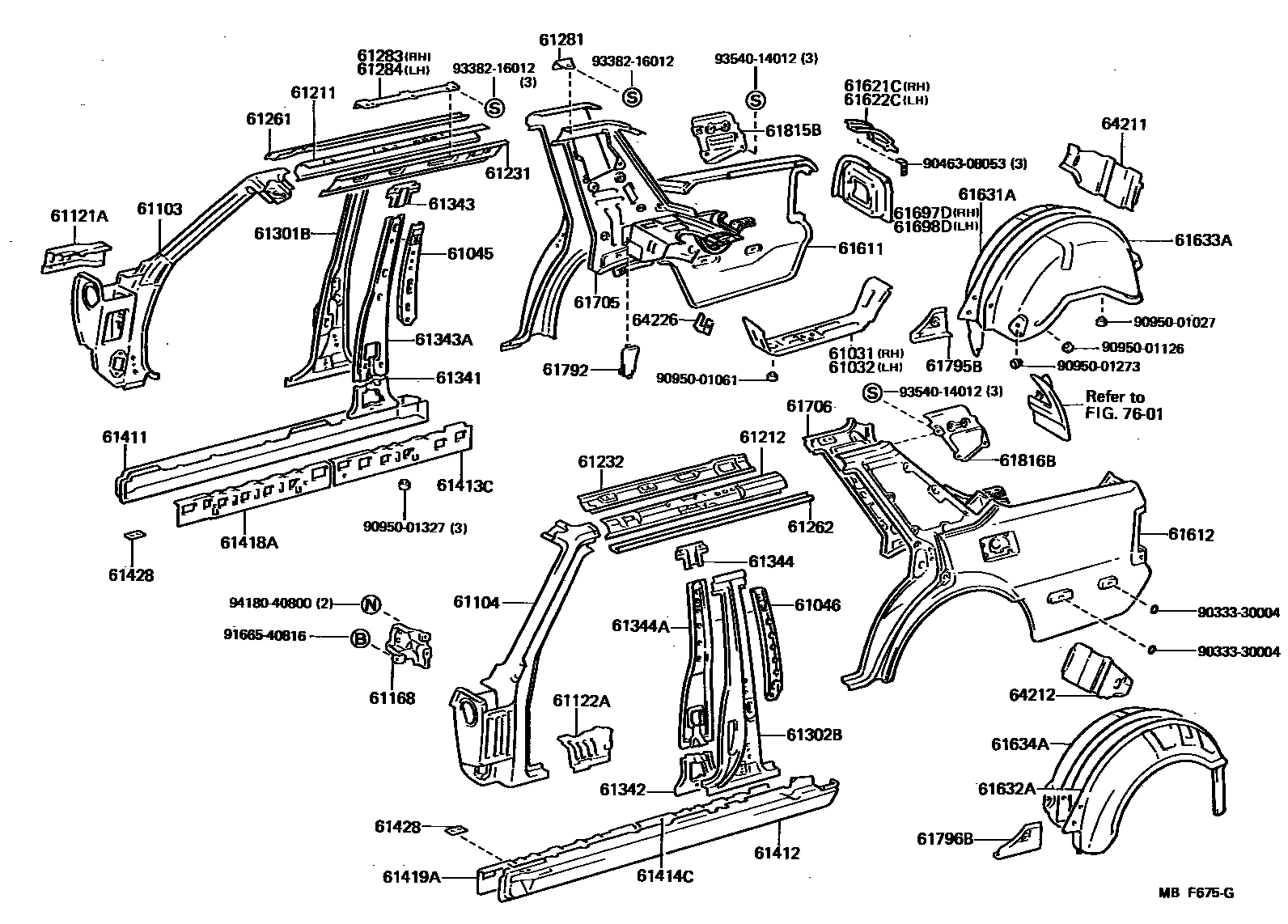

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH

main61031-30020iGS121,MS123,125..SED198308-198506

W/MOON ROOF

sub61031-30030

main61031-30030iGS120,121,LS120,MS12#..HT..(ROY,SAL)198506-198509

W/MOON ROOF

main61031-30030iGS120,121,LS120,MS12#,YS120..HT,SED198509-198708

main61031-30040iGS120,121,LS120,MS12#,YS120..HT,SED198308-198506

sub61031-30050

main61031-30050iGS120,121,LS120,MS12#,YS120..HT,SED198506-198509

sub61031-30030

61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH

main61628-30030iGS120,121,LS120,MS12#,YS120..HT,SED198308-198506

sub61628-30060

main61628-30060iGS120,121,LS120,MS12#,YS120..HT,SED198506-198708

61045REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH

main61045-30030iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main61045-30040iGS120,121,LS120,MS12#..HT198308-198708

61046REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH

main61046-30030iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main61046-30040iGS120,121,LS120,MS12#..HT198308-198708

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-30100iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

main61021-30110iMS120..SED..TBO198308-198708

main61021-30130iGS120,121,LS120,MS12#..HT198308-198708

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-30100iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

main61022-30110iMS120..SED..TBO198308-198708

main61022-30130iGS120,121,LS120,MS12#..HT198308-198509

sub61022-30131

sub74619-14010

sub90159-60273

main61022-30131iGS120,121,LS120,MS125..HT198509-198708

61121APANEL, COWL SIDE, OUTER UPPER RH

main61125-30030iGS12#,LS12#,MS12#,YS120198308-198708

61122APANEL, COWL SIDE, OUTER UPPER LH

main61126-30020iGS12#,LS12#,MS12#,YS120198308-198708

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-30060iMS120..TBO198308-198708

61211RAIL, ROOF SIDE, OUTER RH

main61211-30120iGS120,121,LS120,MS12#,YS120..SED198308-198708

main61211-30130iGS120,121,LS120,MS12#..HT198308-198708

main61211-91703iGS120,126,LS12#..V,WG198308-198708

61212RAIL, ROOF SIDE, OUTER LH

main61212-30120iGS120,121,LS120,MS12#,YS120..SED198308-198708

main61212-30130iGS120,121,LS120,MS12#..HT198308-198708

main61212-91703iGS120,126,LS12#..V,WG198308-198708

61231RAIL, ROOF SIDE, INNER RH

main61231-30130iGS120,LS120,YS120..STD198308-198708

main61231-30130iGS121,MS123,125..SED198308-198509

W/MOON ROOF

main61231-30130iGS120,YS120..(4FC,4H,5F)..DLX198310-198708

DX-A PACKAGE

main61231-30150iGS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX)198308-198708

main61231-30180iGS120,121,LS120,MS12#..HT198308-198509

main61231-30181iGS120,121,LS120,MS125..HT198509-198708

main61231-30190iGS120,121,LS120,MS12#..HT..(ROY,SAL)198308-198509

W/MOON ROOF

main61231-30191iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

W/MOON ROOF

main61231-91704iGS120,126,LS12#..V,WG198308-198708

61232RAIL, ROOF SIDE, INNER LH

main61232-30130iGS120,YS120..(4FC,4H,5F)..DLX198308-198708

DX-A PACKAGE

main61232-30130iGS121,MS123,125..SED198308-198509

W/MOON ROOF

main61232-30160iGS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX)198308-198708

main61232-30180iGS120,121,LS120,MS12#..HT198308-198509

main61232-30181iGS120,121,LS120,MS125..HT198509-198708

main61232-30190iGS120,121,LS120,MS12#..HT..(ROY,SAL)198308-198509

W/MOON ROOF

main61232-30191iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

W/MOON ROOF

main61232-91704iGS120,126,LS12#..V,WG198308-198708

61261CHANNEL, ROOF DRIP, RH

main61261-30090iGS120,121,LS120,MS12#,YS120..SED198308-198708

main61261-30120iGS120,121,LS120,MS12#..HT198308-198708

main61263-91701iGS120,126,LS12#..V,WG198308-198708

61262CHANNEL, ROOF DRIP, LH

main61262-30090iGS120,121,LS120,MS12#,YS120..SED198308-198708

main61262-30120iGS120,121,LS120,MS12#..HT198308-198708

main61264-91701iGS120,126,LS12#..V,WG198308-198708

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-30020iGS121,MS123,125..SED198308-198509

main61281-30030iGS120,121,LS120,MS12#..HT..(ROY,SAL)198308-198708

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-30020iGS120,121,LS120,MS12#..HT..(ROY,SAL)198308-198708

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-30020iGS120,121,LS120,MS12#..HT..(ROY,SAL)198308-198708

61301BPILLAR, CENTER BODY, OUTER RH

main61301-30070iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198506

sub61301-30080

main61301-30080iGS12#,LS12#,MS12#,YS120..SED,V,WG198506-198708

main61301-30090iGS120,121,LS120,MS12#..HT198308-198603

sub61301-30100

main61301-30100iGS120,121,LS120,MS125..HT198603-198708

61302BPILLAR, CENTER BODY, OUTER LH

main61302-30090iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198506

sub61302-30100

main61302-30100iGS12#,LS12#,MS12#,YS120..SED,V,WG198506-198708

main61302-30110iGS120,121,LS120,MS12#..HT198308-198708

61341PILLAR, CENTER BODY, INNER LOWER RH

main61345-30060iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main61345-30070iGS120,121,LS120,MS12#..HT198308-198708

61342PILLAR, CENTER BODY, INNER LOWER LH

main61346-30060iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main61346-30070iGS120,121,LS120,MS12#..HT198308-198708

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-30090iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main61341-30100iGS120,121,LS120,MS12#..HT198308-198708

61343APILLAR, CENTER BODY, INNER RH

main61343-30080iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main61343-30090iGS120,121,LS120,MS12#..HT198308-198708

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-30080iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main61342-30090iGS120,121,LS120,MS12#..HT198308-198708

61344APILLAR, CENTER BODY, INNER LH

main61344-30080iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main61344-30090iGS120,121,LS120,MS12#..HT198308-198708

61411PANEL, ROCKER, OUTER RH

main61411-30230iGS12#,LS12#,MS12#,YS120198308-198708

61412PANEL, ROCKER, OUTER LH

main61412-30230iGS12#,LS12#,MS12#,YS120198308-198708

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-30020iGS12#,LS12#,MS12#,YS120198308-198708

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-30020iGS12#,LS12#,MS12#,YS120198308-198708

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-30050iGS12#,LS12#,MS12#,YS120198308-198708

61428GUSSET, ROCKER OUTER PANEL

main61428-30040iGS12#,LS12#,MS12#,YS120198308-198708

61611PANEL, QUARTER, RH

main61601-30910iGS120,121,LS120,MS12#,YS120..SED198308-198708

main61601-30915iGS120,121,LS120,MS12#..HT198308-198510

sub61601-30916

main61601-30916iGS120,121,LS120,MS125..HT198510-198708

main61601-91709iGS126,LS126198308-198708

main61601-91710iGS120,LS120..WG198308-198509

sub61601-91711

main61601-91711iGS120,LS120..WG198509-198708

61612PANEL, QUARTER, LH

main61602-30910iGS120,121,LS120,MS12#,YS120..SED198308-198708

sub61602-30913

sub90333-25001

main61602-30914iGS120,121,LS120,MS12#..HT198308-198708

main61602-91710iGS126,LS126198308-198708

main61602-91711iGS120,LS120..WG198308-198509

sub61602-91713

main61602-91713iGS120,LS120..WG198509-198708

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-30070iGS120,121,LS120,MS12#,YS120..SED198308-198708

main61621-30080iGS120,121,LS120,MS12#..HT198308-198708

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-30060iGS120,121,LS120,MS12#,YS120..SED198308-198708

main61622-30070iGS120,121,LS120,MS12#..HT198308-198708

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-30090iGS120,121,LS120,MS12#,YS120..HT,SED198308-198708

main61631-91701iGS120,126,LS12#..V,WG198308-198708

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-30090iGS120,121,LS120,MS12#,YS120..HT,SED198308-198708

main61632-91701iGS120,126,LS12#..V,WG198308-198708

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-30910iGS120,LS120,MS120,YS120..HT,SED198308-198708

main61603-30911iGS121,MS123,125198308-198708

main61603-91590iGS126,LS126198308-198708

main61603-91591iGS120,LS120..WG..SDX198308-198708

main61603-91592iGS120,LS120..WG..SAL198308-198708

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-30909iGS120,LS120,MS120,YS120..HT,SED198308-198708

main61604-30910iGS121,MS123,125198308-198708

sub61604-30911

main61604-30911iGS121,MS123,125198308-198708

W/*AL

main61604-91590iGS126,LS126198308-198708

main61604-91591iGS120,LS120..WG..SDX198308-198708

main61604-91592iGS120,LS120..WG..SAL198308-198708

61697DHOUSING, QUARTER PANEL END, RH

main61697-30020iGS120,121,LS120,MS12#,YS120..SED198308-198708

main61697-30030iGS120,121,LS120,MS12#..HT198308-198708

61698DHOUSING, QUARTER PANEL END, LH

main61698-30020iGS120,121,LS120,MS12#,YS120..SED198308-198708

main61698-30030iGS120,121,LS120,MS12#..HT198308-198708

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61703-30900iGS120,LS120,MS120,YS120..SED198308-198708

main61703-30903iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

Q PACKAGE W/RR SLIDE SEAT

main61703-30903iMS120..4FC..SDX198510-198708

Q PACKAGE,W/RR SLIDE SEAT

main61703-30904iGS120,121,LS120,MS12#..HT..(ROY,SAL)198308-198506

W/RR SLIDE SEAT

sub61703-30906

main61703-30905iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

sub61703-30912

sub74619-14010

sub90159-60273

main61703-30906iGS120,121,LS120,MS12#..HT..(ROY,SAL)198308-198506

W/RR SLIDE,SEAT,MOON ROOF

sub61703-30909

sub74619-14010

sub90159-60273

main61703-30906iGS120,121,LS120,MS12#..HT..(ROY,SAL)198506-198509

W/RR SLIDE SEAT

sub61703-30909

sub74619-14010

sub90159-60273

main61703-30907iGS120,121,LS120..SPE,SSL198509-198708

sub61703-30912

main61703-30908iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

sub61703-30909

main61703-30909iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

W/MOON ROOF

main61705-91714iGS126,LS126198308-198708

main61705-91715iGS120,LS120..WG198308-198708

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61704-30900iGS120,LS120,MS120,YS120..SED198308-198708

main61704-30903iMS120..4FC..SDX198610-198708

Q PACKAGE,W/RR SLIDE SEAT

main61704-30903iMS120..(4H,4HC)..SDX198510-198708

Q PACKAGE W/RR SLIDE SEAT

main61704-30903iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

W/RR SLIDE SEAT

main61704-30904iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

sub61704-30911

sub74619-14010

sub90159-60273

main61704-30905iGS120,121,LS120,MS12#..HT..(ROY,SAL)198308-198509

W/RR SLIDE SEAT

sub61704-30908

sub74619-14010

sub90159-60273

main61704-30906iGS120,121,LS120..SPE,SSL198509-198708

sub61704-30911

main61704-30907iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198510

sub61704-30908

main61704-30908iGS120,121,LS120,MS125..HT..(ROY,SAL)198510-198708

main61704-30908iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198510

W/MOON ROOF

main61706-91719iGS126,LS126198308-198708

main61706-91720iGS120,LS120..WG198308-198708

61792COVER, ROOF SIDE INNER SERVICE HOLE

main61791-30030iGS120,121,LS120,MS12#,YS120..SED198308-198708

RH

main61791-30040iGS120,121,LS120,MS12#..HT198308-198708

RH

main61792-30030iGS120,121,LS120,MS12#,YS120..SED198308-198708

LH

main61792-30040iGS120,121,LS120,MS12#..HT198308-198708

LH

61795BEXTENSION, QUARTER WHEEL HOUSE, RH

main61797-30030iGS12#,LS12#,MS12#,YS120198308-198708

61796BEXTENSION, QUARTER WHEEL HOUSE, LH

main61798-30030iGS12#,LS12#,MS12#,YS120198308-198708

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-30040iGS120,121,LS120,MS12#,YS120..SED198308-198708

main61815-30050iGS120,121,LS120,MS12#..HT198308-198708

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61816-30040iGS120,121,LS120,MS12#,YS120..SED198308-198708

main61816-30050iGS120,121,LS120,MS12#..HT198308-198708

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-30070iGS120,121,LS120,MS12#,YS120..HT,SED198308-198708

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-30060iGS120,121,LS120,MS12#,YS120..HT,SED198308-198708

64226HANGER, REAR SEAT CUSHION SUPPORT

main64226-22010iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL)198308-198708

W/SLIDE SEAT

main64226-22010iMS120..(4H,4HC)..SDX198510-198708

Q PACKAGE,W/SLIDE SEAT

main64226-22010iMS120..4FC..SDX198610-198708

Q PACKAGE,W/RR SLIDE SEAT

7601

9033330004

main90333-30004

9046308053

main90463-08053

9095001027

main90950-01027

9095001061

main90950-01061

9095001126

main90950-01126

9095001273

main90950-01273

9095001327

main90950-01327

9166540816

main91665-40816

9338216012

main93382-16012

9354014012

main93540-14012

9418040800

main94180-40800

64 parts on this diagram · 4 diagrams in section
