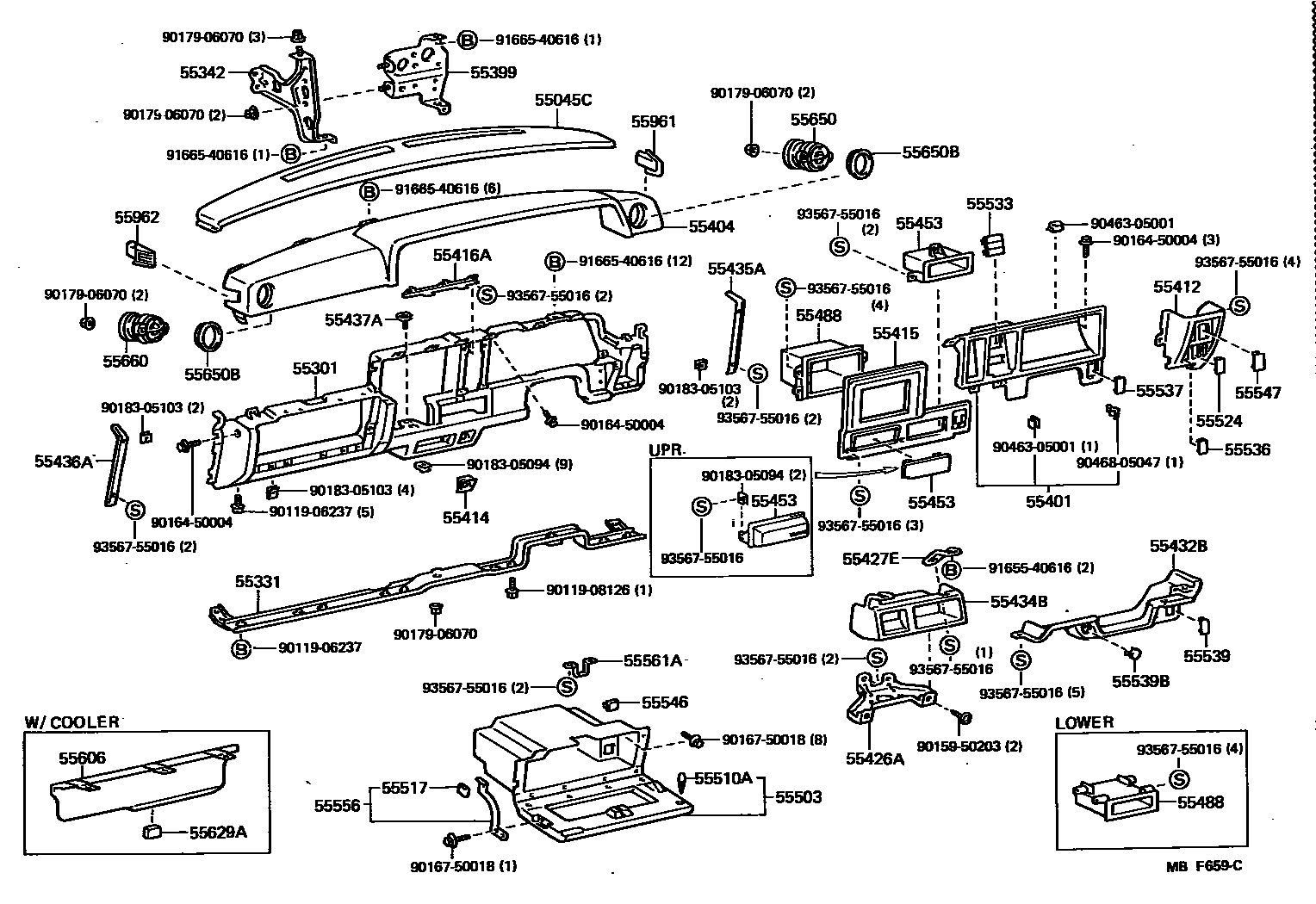

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0004 1 0006 1 0007 1

55045CPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

main55044-30120iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-30240-02iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub55301-30241

sub82351-30030

sub84242-20030

main55301-30240-04iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

BLUE,BLUE,TRIM8#

sub55301-30241

sub82351-30030

sub84242-20030

main55301-30240-05iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

sub55301-30241

sub82351-30030

sub84242-20030

main55301-30241-02iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

MAROON,MAROON,TRIM3#

sub55301-30241

main55301-30241-04iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

BLUE,BLUE,TRIM8#

sub55301-30241

main55301-30241-06iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

BROWN,BROWN,TRIM4#

sub55301-30241

main55311-30220-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198509

BLUE,BLUE,TRIM8#

sub55311-30H00

main55311-30221-04iLS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198509-198708

BLUE,BLUE,TRIM8#

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-30121iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

main55330-30020iGS120,126,LS12#..(V,WG)..(4FC,4HC,5F)198308-198509

sub55330-30040

main55330-30030iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

sub55330-30060

main55330-30040iGS120,121,MS125..HT..4HC198509-198708

main55330-30060iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

55342BRACE, INSTRUMENT PANEL, NO.2

main55306-30090iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

main55307-30040iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

main55307-30050iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198708

55399PLATE, TAXIMETER MOUNTING

main55399-30050iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-30540iGS126..4H;GS120,LS12#,YS120..STD198509-198708

DX-A PACKAGE

main55404-30540iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198509

main55404-30560iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198708

main55404-30570iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198308-198708

main55404-30580iMS125..HT..4FC198501-198509

THE 30TH LIMITED

main55404-30590iMS120,YS120..DLX,SDX;GS120,LS120..4H..(DLX,SDX)198509-198708

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-30260-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

sub55401-30260

main55401-30280-02iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub55401-30280

main55401-30280-04iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198708

BLUE,BLUE,TRIM8#

sub55401-30280

main55401-30280-05iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

sub55401-30280

main55401-30280-06iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

BROWN,BROWN,TRIM4#

sub55401-30280

main55401-30280-12iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

MAROON,MAROON,TRIM3#

sub55401-30280

main55401-30290-02iGS120,121,MS123,125..HT..4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main55401-30290-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main55401-30290-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

main55401-30290-05iGS120,126,LS12#..(V,WG)..(4FC,4HC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

main55401-30290-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main55401-30290-12iGS120,LS120..WG..SAL198509-198708

MAROON,MAROON,TRIM3#

55412PANEL, INSTRUMENT CLUSTER FINISH, END

main55414-30090-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-14050iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)198308-198708

main55477-30020iGS120,YS120..4H..DLX198310-198312

DX-A PACKAGE

sub55477-30030

main55477-30020iGS120,126,LS12#,YS120..STD198308-198612

sub55477-30030

main55477-30030iGS120,LS120..4H..(DLX,SDX);GS126,MS120,YS120..(4FC,4H,4HC)..(DLX,SDX)198308-198708

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-30250iMS120,YS120..DLX,SDX198509-198708

main55412-30190iGS120,YS120..4H..DLX198509-198708

DX-A PACKAGE

main55412-30190iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198509

main55412-30200-02iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main55412-30200-04iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198308-198708

BLUE,BLUE,TRIM8#

main55412-30200-05iGS120,121,MS123,125..HT..4HC198308-198509

BEIGE,BEIGE,TRIM4#

main55412-30200-06iGS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

main55412-30200-12iGS120,121,MS123,125..HT..4HC198308-198509

DEEP MAROON,DEEP MAROON,TRIM3#

main55412-30200-12iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,DEEP MAROON,TRIM3#

main55412-30230-02iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

MAROON,MAROON,TRIM3#

sub55412-30230

main55412-30230-04iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198708

BLUE,BLUE,TRIM8#

sub55412-30230

main55412-30230-05iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

sub55412-30230

main55412-30230-06iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

BROWN,BROWN,TRIM4#

sub55412-30230

main55412-30230-12iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

DEEP MAROON,DEEP MAROON,TRIM3#

sub55412-30230

55416ARETAINER, METER HOOD, NO.1

main55416-30070iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

55426ABRACKET, CLUSTER FINISH PANEL, NO.1

main55426-30010iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

55427EBRACKET, CLUSTER FINISH PANEL, NO.2

main55427-30100iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55045-30040-02iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

DEEP MAROON,MAROON,TRIM3#

sub55045-30040

main55045-30040-04iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198708

BLUE,BLUE,TRIM8#

sub55045-30040

main55045-30040-05iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

sub55045-30040

main55045-30040-06iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

BROWN,BEIGE,TRIM4#

sub55045-30040

main55045-30040-12iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

MAROON,MAROON,TRIM3#

sub55045-30040

main55432-30120-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55413-30070-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

sub55413-30070

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-30110-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-30060-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-30060iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

55453COVER, RADIO TUNER OPENING

main55522-14080iMS120..SDX198312-198708

UPR

sub55522-20070

main55522-30040iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

RH

main55522-30060iGS120,YS120..4H..DLX198308-198708

LH

main55522-30060iGS126..4H;GS120,LS12#..STD198509-198708

LH,DX-A PACKAGE

main55522-30070iGS120,LS120..4H..(DLX,SDX)198509-198708

LH

main55522-30080iMS120..SDX198509-198708

LWR

sub55522-20070

55488COVER, STEREO OPENING

main55521-16010iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX)198308-198708

LWR

sub55521-16030

main55521-30100iMS120,YS120..LPG;GS120,126,LS12#..STD198308-198708

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-30040iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198708

main55506-30050iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198308-198708

main55550-30190-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-30200-02iGS120,121,MS123,125..HT..4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub55550-30200

main55550-30200-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub55550-30200

main55550-30200-04iGS120,126,LS12#..(V,WG)..(4FC,4HC,5F)198308-198708

BLUE,BLUE,TRIM8#

sub55550-30200

main55550-30200-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

sub55550-30200

main55550-30200-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

sub55550-30200

main55550-30200-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub55550-30200

main55550-30210-02iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub55550-30210

main55550-30210-04iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198708

BLUE,BLUE,TRIM8#

sub55550-30210

main55550-30210-05iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

sub55550-30210

main55550-30210-06iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

BROWN,BROWN,TRIM4#

sub55550-30210

main55550-30210-12iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

MAROON,MAROON,TRIM3#

sub55550-30210

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)198308-198708

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iGS12#,LS12#,MS12#,YS120198308-198708

55524COVER, SWITCH BACE HOLE

main55527-30010-02iGS120..SED..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub55527-30010

main55527-30010-04iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX)198308-198708

BLUE,BLUE,TRIM8#

sub55527-30010

main55527-30010-05iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

sub55527-30010

main55527-30010-06iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

sub55527-30010

main55527-30010-12iGS120..SED..SAL198509-198708

MAROON,MAROON,TRIM3#

sub55527-30010

main55539-32010-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-32030

55533COVER, AUTO CLOCK HOLE

main55533-30090iGS120,YS120..4H..DLX198509-198708

DX-A PACKAGE

main55533-30090iYS120;GS120,126,LS12#..STD198310-198509

55536COVER, REAR WINDOW WIPER SWITCH HOLE

main55527-30010-02iGS120,121,MS123,125..HT..4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub55527-30010

main55527-30010-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub55527-30010

main55527-30010-04iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198308-198708

BLUE,BLUE,TRIM8#

sub55527-30010

main55527-30010-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

sub55527-30010

main55527-30010-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

sub55527-30010

main55527-30010-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub55527-30010

main55539-32010-04iMS120..(4H,4HC)..SDX198510-198708

Q PACKAGE,BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-32030

main55539-32010-04iGS126,LS126..4H;GS120,LS120..STD;GS120,LS120..4H..DLX198308-198708

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-32030

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55537-30060iGS126,LS126..(4FC,5F)..DLX198308-198708

main55539-32010-01iGS126..4H;GS120,LS12#,YS120..STD198308-198708

BLACK,BLACK

sub55539-32010

sub55539-32030

55539COVER, SPARE SWITCH HOLE

main55539-24010-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55531-30130-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

sub55531-30130

55546COVER, LUGGAGE COMPARTMENT OPENER SWITCH HOLE

main55546-30030iGS120,LS120..WG;GS120,LS120..STD;GS126,LS126,MS120,YS120..DSL,EFI,LPG198308-198708

55547COVER, REMOTE CONTROL MIRROR HOLE

main74267-24010-01iGS126,LS126..DLX,STD198308-198708

BLACK

sub74267-24010

main74267-24010-01iGS120,YS120..(4FC,4H,5F)..DLX198509-198708

DX-A PACKAGE,BLACK

sub74267-24010

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-30040iGS12#,LS12#,MS12#,YS120198308-198708

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12010iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

main55561-16020iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)198308-198708

sub55561-32010

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-30070iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)198308-198708

main55606-30080iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198509

main55641-30110iLS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198509-198708

55629ACUSHION, INSTRUMENT PANEL UNDER TRAY

main55629-30030iLS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198509-198708

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-30060iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

main55650-30100-02iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub55650-30100

main55650-30100-04iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198708

BLUE,BLUE,TRIM8#

sub55650-30100

main55650-30100-05iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

sub55650-30100

main55650-30100-06iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

BROWN,BROWN,TRIM4#

sub55650-30100

main55650-30100-12iGS120,121,LS120,MS125..HT..(4FC,5F)198509-198708

MAROON,MAROON,TRIM3#

sub55650-30100

main55650-30110iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198308-198708

55650BBEZEL, INSTRUMENT PANEL REGISTER

main55661-30080-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

sub55661-30080

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-30060iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

main55660-30100iMS123..SED198308-198509

W/*MPAAC

main55660-30110iGS120,121,LS120..SPE,SSL198308-198708

main55660-30120iGS121,MS125..HT..4FC..ROY198308-198509

W/*MPAAC

main55660-30130iGS120,121,MS123,125..HT..4HC198308-198708

main55660-30140iMS125..HT..4FC198501-198509

THE 30TH LIMITED

main55660-30150iMS125..SED198509-198708

W/*MPAAC

main55660-30170iMS125..HT..4FC198509-198708

W/*MPAAC

main55660-30180iGS120,121,MS125..HT..4HC198509-198708

*EXT

main55660-30190iGS120,121,LS120,MS125..HT..(4FC,5F)..(ROY,SAL)198509-198708

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30010-14iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198604

BLUE,BLUE,TRIM8#

main55961-30010-24iLS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198604-198708

BLUE,BLUE,TRIM8#

main55961-30030iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198708

main55961-30040-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub55961-30040

main55961-30040-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub55961-30040

main55961-30040-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

sub55961-30040

main55961-30040-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

sub55961-30040

main55961-30040-06iGS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

sub55961-30040

main55961-30040-12iGS120,LS120..WG..SAL198509-198708

MAROON,MAROON,TRIM3#

sub55961-30040

main55961-30050iMS125..HT..4FC198501-198509

THE 30TH LIMITED

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-30020-14iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

main55962-30010iGS120,121,LS120,MS12#..HT..(4FC,5F)198308-198708

main55962-30020-02iGS120,121,MS123,125..HT..4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub55962-30020

main55962-30020-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub55962-30020

main55962-30020-04iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198308-198604

BLUE,BLUE,TRIM8#

sub55962-30020

main55962-30020-05iGS120,121,MS123,125..HT..4HC198308-198509

BEIGE,BEIGE,TRIM4#

sub55962-30020

main55962-30020-06iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

sub55962-30020

main55962-30020-12iGS120,121,MS125..HT..4HC198509-198708

MAROON,MAROON,TRIM3#

sub55962-30020

main55962-30020-14iGS120,121,LS120,MS125..SED..(ROY,SAL)198604-198708

BLUE,BLUE,TRIM8#

sub55962-30020

main55962-30030iMS125..HT..4FC198501-198509

THE 30TH LIMITED

9011906237

main90119-06237

9011908126

main90119-08126

9015950203

main90159-50203

9016450004

main90164-50004

9016750018

main90167-50018

9017906070

main90179-06070

9018305094

main90183-05094

9018305103

main90183-05103

9046305001

main90463-05001

9046805047

main90468-05047

9165540616

main91655-40616

9166540616

main91665-40616

9356755016

main93567-55016

54 parts on this diagram · 5 diagrams in section
