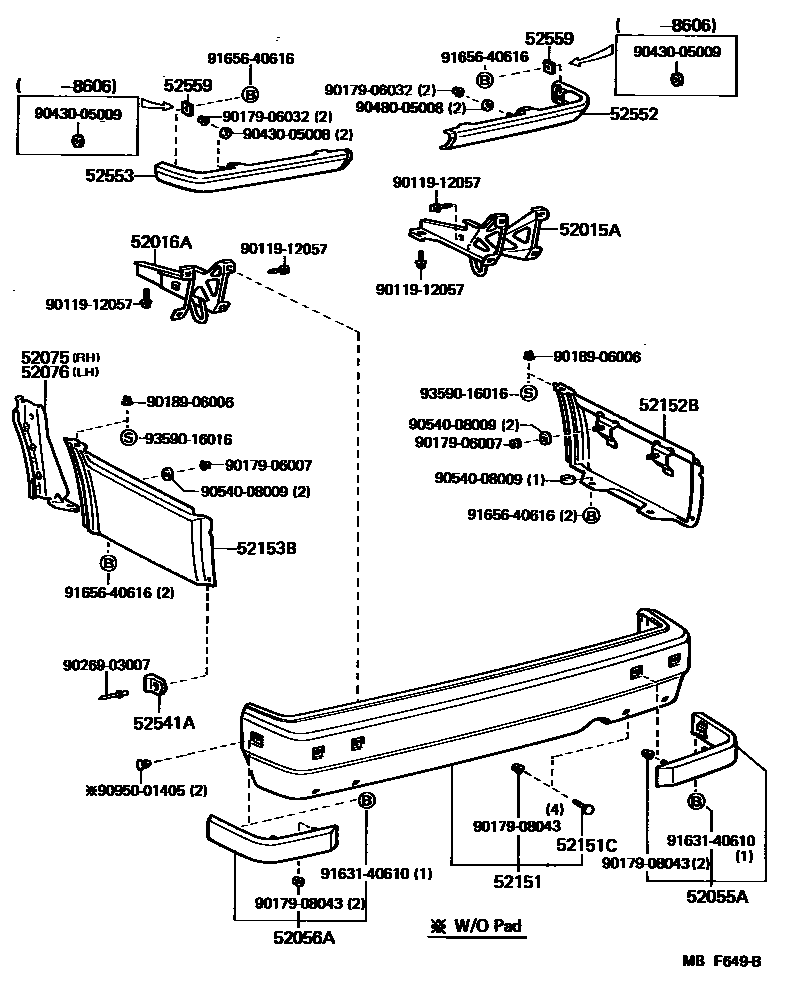

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-30070iGS120,LS120,MS120,YS120..DLX,STD198308-198708

main52015-91703iGS126,LS126198308-198708

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-30070iGS120,LS120,MS120,YS120..DLX,STD198308-198708

main52016-91703iGS126,LS126198308-198708

52055APAD SUB-ASSY, REAR BUMPER, RH

main52055-39055iGS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX198308-198708

52056APAD SUB-ASSY, REAR BUMPER, LH

main52056-39025iGS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX198308-198708

52075RETAINER SUB-ASSY, REAR BUMPER SIDE, RH

main52075-30010iGS120,121,LS120,MS12#,YS120..HT,SED198308-198708

main52075-91701iGS120,LS120..WG198308-198708

52076RETAINER SUB-ASSY, REAR BUMPER SIDE, LH

main52076-30010iGS120,121,LS120,MS12#,YS120..HT,SED198308-198708

main52076-91701iGS120,LS120..WG198308-198708

52151BUMPER ASSY, REAR

main52151-30180iGS126;GS120,LS12#,MS120,YS120..DLX,STD198611-198708

main52151-39125iGS126;GS120,LS12#,MS120,YS120..DLX,STD198308-198611

sub52151-30180

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-08031iGS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX198308-198708

52152BEXTENSION, REAR BUMPER, RH

main52106-30010iGS120,LS120,MS120,YS120..DLX,STD198308-198708

main52152-30070-01iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198509

BLACK,BLACK,202

sub52152-30902

main52152-30070-02iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198509

WINE RED-M,RED/MAROON,3E2

sub52152-30902

main52152-30070-03iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198509

SILVER-M,GRAY,150

sub52152-30902

main52152-30070-04iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198509

DARK BLUE-M,BLUE,869

sub52152-30902

main52152-30070-05iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198401

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R5

sub52152-30902

main52152-30070-06iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198509

DEEP BROWN-M,BROWN,490

sub52152-30902

main52152-30070-08iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198509

SUPER WHITE,IVORY,035

sub52152-30902

main52152-30070-15iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198401-198509

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R5

sub52152-30902

main52152-30071-01iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

BLACK,BLACK,202

sub52152-30902

main52152-30071-02iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

WINE RED-M,WINE RED METALLIC,3E2 ,2V6

sub52152-30902

main52152-30071-03iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

SUPER SILVER-M,SUPER SILVER M,103 ,150 ,606

sub52152-30902

main52152-30071-04iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

DARK BLUE-M,DARK BLUE METALLIC,869

sub52152-30902

main52152-30071-05iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

BEIGE-M,BEIGE METALLIC,4E6

sub52152-30902

main52152-30071-06iGS121..HT..4FC..ROY..SPC198608-198708

THE 40TH,BROWN-M,BLWN/BEIGE,29D

sub52152-30902

main52152-30071-08iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

SUPER WHITE 2,SUPER WHITE 2,040

sub52152-30902

main52152-30071-15iGS120,121,LS120..HT198509-198708

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,2U9

sub52152-30902

main52152-30080-01iMS123,125198308-198708

BLACK,BLACK,202

sub52152-30903

main52152-30080-02iMS123,125198308-198708

WINE RED-M,RED/MAROON,3E2

sub52152-30903

main52152-30080-03iMS123,125198308-198708

SILVER-M,GRAY,150

sub52152-30903

main52152-30080-04iMS123,125198308-198708

DARK BLUE-M,BLUE,869

sub52152-30903

main52152-30080-05iMS123198308-198401

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R5

sub52152-30903

main52152-30080-06iMS123,125198308-198509

DEEP BROWN-M,BROWN,490

sub52152-30903

main52152-30080-08iMS123,125198308-198509

SUPER WHITE,IVORY,035

sub52152-30903

main52152-30080-15iMS123,125198401-198708

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R5 ,2U9

sub52152-30903

main52152-30080-18iMS125198509-198708

SUPER WHITE 2,SUPER WHITE 2,040

sub52152-30903

main52152-30080-25iMS125198509-198708

BEIGE-M,BEIGE METALLIC,4E6

sub52152-30903

main52152-91702-02iGS120,LS120..WG198308-198509

WINE RED-M,RED/MAROON,3E2 ,2V6

sub52152-30916

main52152-91702-03iGS120,LS120..WG198308-198509

SILVER-M,GRAY,150

sub52152-30916

main52152-91702-04iGS120,LS120..WG198308-198509

DARK BLUE-M,BLUE,869

sub52152-30916

main52152-91702-05iGS120,LS120..WG198308-198401

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R3

sub52152-30916

main52152-91702-08iGS120,LS120..WG198308-198509

SUPER WHITE,IVORY,035

sub52152-30916

main52152-91702-15iGS120,LS120..WG198401-198509

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R5

sub52152-30916

main52152-91703-02iGS120,LS120..WG198509-198708

WINE RED-M,WINE RED,3E2 ,2V6

sub52152-30917

main52152-91703-03iGS120,LS120..WG198509-198708

SUPER SILVER-M,SUPER SILVER,150

sub52152-30917

main52152-91703-04iGS120,LS120..WG198509-198708

DARK BLUE-M,BLUE METALLIC,869

sub52152-30917

main52152-91703-05iGS120,LS120..WG198509-198708

BEIGE-M,BEIGE METALLIC,4E6

sub52152-30917

main52152-91703-08iGS120,LS120..WG198509-198708

SUPER WHITE 2,SUPER WHITE,040

sub52152-30917

52153BEXTENSION, REAR BUMPER, LH

main52107-30030iGS120,LS120,MS120,YS120..DLX,STD198308-198708

main52153-30010-01iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198509

BLACK,BLACK,202

sub52153-30902

main52153-30010-02iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198509

WINE RED-M,RED/MAROON,3E2

sub52153-30902

main52153-30010-03iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198509

SILVER-M,GRAY,150

sub52153-30902

main52153-30010-04iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198509

DARK BLUE-M,BLUE,869

sub52153-30902

main52153-30010-05iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198401

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R5

sub52153-30902

main52153-30010-06iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198509

DEEP BROWN-M,BROWN,490

sub52153-30902

main52153-30010-08iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198308-198509

SUPER WHITE,IVORY,035

sub52153-30902

main52153-30010-15iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)198401-198509

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R5

sub52153-30902

main52153-30011-01iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

BLACK,BLACK,202

sub52153-30902

main52153-30011-02iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

WINE RED-M,WINE RED METALLIC,3E2 ,2V6

sub52153-30902

main52153-30011-03iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

SUPER SILVER-M,SUPER SILVER M,103 ,150 ,606

sub52153-30902

main52153-30011-04iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

DARK BLUE-M,DARK BLUE METALLIC,869

sub52153-30902

main52153-30011-05iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

BEIGE-M,BEIGE METALLIC,4E6

sub52153-30902

main52153-30011-06iGS121..HT..4FC..ROY..SPC198608-198708

THE 40TH,BROWN-M,BLWN/BEIGE,29D

sub52153-30902

main52153-30011-08iGS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE,SSL)198509-198708

SUPER WHITE 2,SUPER WHITE 2,040

sub52153-30902

main52153-30011-15iGS120,121,LS120..HT198509-198708

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,2U9

sub52153-30902

main52153-30020-01iMS123,125198308-198708

BLACK,BLACK,202

sub52153-30903

main52153-30020-02iMS123,125198308-198708

WINE RED-M,RED/MAROON,3E2

sub52153-30903

main52153-30020-03iMS123,125198308-198708

SILVER-M,GRAY,150

sub52153-30903

main52153-30020-04iMS123,125198308-198708

DARK BLUM-M,BLUE,869

sub52153-30903

main52153-30020-05iMS123198308-198401

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R5

sub52153-30903

main52153-30020-06iMS123,125198308-198509

DEEP BROWN-M,BROWN,490

sub52153-30903

main52153-30020-08iMS123,125198308-198509

SUPER WHITE,IVORY,035

sub52153-30903

main52153-30020-15iMS123,125198401-198708

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R5 ,2U9

sub52153-30903

main52153-30020-18iMS125198509-198708

SUPER WHITE 2,SUPER WHITE 2,040

sub52153-30903

main52153-30020-25iMS125198509-198708

BEIGE-M,BEIGE METALLIC,4E6

sub52153-30903

main52153-91702-02iGS120,LS120..WG198308-198509

WINE RED-M,RED/MAROON,3E2 ,2V6

sub52153-30916

main52153-91702-03iGS120,LS120..WG198308-198509

SILVER-M,GRAY,150

sub52153-30916

main52153-91702-04iGS120,LS120..WG198308-198509

DARK BLUE-M,BLUE,869

sub52153-30916

main52153-91702-05iGS120,LS120..WG198308-198401

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R3

sub52153-30916

main52153-91702-08iGS120,LS120..WG198308-198509

SUPER WHITE,IVORY

sub52153-30916

main52153-91702-15iGS120,LS120..WG198401-198509

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R3

sub52153-30916

main52153-91703-02iGS120,LS120..WG198509-198708

WINE RED-M,WINE RED,3E2 ,2V6

sub52153-30917

main52153-91703-03iGS120,LS120..WG198509-198708

SUPER SILVER-M,SUPER SILVER,150

sub52153-30917

main52153-91703-04iGS120,LS120..WG198509-198708

DARK BLUE-M,DARK BLUE METALLIC,869

sub52153-30917

main52153-91703-05iGS120,LS120..WG198509-198708

BEIGE-M,BEIGE METALLIC,4E6

sub52153-30917

main52153-91703-08iGS120,LS120..WG198509-198708

SUPER WHITE 2,SUPER WHITE,040

sub52153-30917

52541APROTECTOR, REAR BUMPER

main52541-30030iGS120,LS120,MS120,YS120..DLX,STD198308-198708

52552FILLER, REAR BUMPER, RH

main52506-30010iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

main52506-30011iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

main52506-30020iGS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)198308-198708

main52506-30030iGS120,121,LS120,MS125..HT198509-198708

52553FILLER, REAR BUMPER, LH

main52507-30010iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

main52507-30011iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

main52507-30020iGS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)198308-198708

main52507-30030iGS120,121,LS120,MS125..HT198509-198708

52559SEAL, REAR BUMPER FILLER

main52559-30010iGS120,121,LS120,MS12#..HT198308-198509

main52559-30020iGS120,121,LS120,MS12#,YS120..HT,SED198606-198708

sub52559-30010

9011912057

main90119-12057

9017906007

main90179-06007

9017906032

main90179-06032

9017908043

main90179-08043

9018906006

main90189-06006

9026903007

main90269-03007

9043005008

main90430-05008

9043005009

main90430-05009

9048005008

main90480-05008

9054008009

main90540-08009

9095001405

main90950-01405

9163140610

main91631-40610

9165640616

main91656-40616

9359016016

main93590-16016
