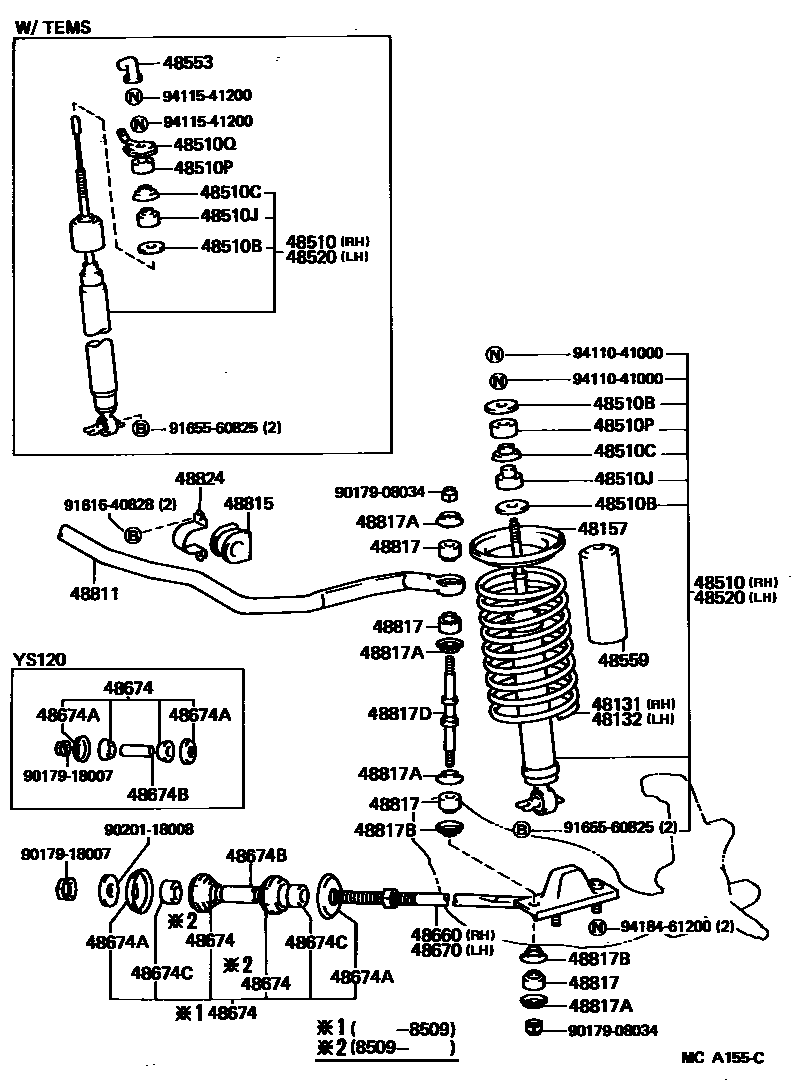

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-30510iGS121..SPE198308-198708

main48131-30520iLS120..(HT,SED)..(TD,TDE)198308-198509

sub48131-30570

main48131-30530iLS120..WG;LS120..STD;MS120..LPG198308-198708

main48131-30550iGS121..SPC198308-198708

sub48131-30740

main48131-30560iMS123,125..HT198308-198708

G SPEC

main48131-30570iLS120..TD198308-198708

main48131-30580iGS120,YS120..MTM;GS120..(SED,WG)..ATM198308-198708

48132SPRING, FRONT COIL, LH

main48131-30510iGS120..HT..ATM198308-198708

main48131-30520iLS120..(HT,SED)..(TD,TDE)198308-198509

sub48131-30570

main48131-30530iLS120..4FC..DSL198308-198708

main48131-30550iGS121..SPC198308-198708

sub48131-30740

main48131-30560iMS123,125..HT198308-198708

G SPEC

main48131-30570iLS120..TD198308-198708

main48131-30580iGS120,YS120..MTM;GS120..(SED,WG)..ATM198308-198708

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-30020iGS12#,LS12#,MS12#,YS120198308-198708

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-30410iMS125..4FC198509-198708

KYB,W/TEMS

sub48511-39585

main48511-30420iMS125..4FC198509-198708

TOKICO,W/TEMS

sub48511-39585

main48511-39375iLS120,MS120..(HT,SED)..(DSL,TBO,TD,TDE)198308-198708

sub48511-39376

main48511-39385iGS126,LS126198308-198708

sub48511-39386

main48511-39395iGS120,LS120..WG;GS121,MS123,125198308-198708

sub48511-39396

main48511-39405iGS120,MS120,YS120..(HT,SED)..(EFI,LPG)198308-198708

sub48511-39395

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02072iGS12#,LS12#,MS12#,YS120198308-198708

main90948-02091iMS125..4FC198509-198708

W/TEMS

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02073iGS12#,LS12#,MS12#,YS120198308-198708

sub90948-02058

main90948-02092iMS125..4FC198509-198708

W/TEMS

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01027iGS12#,LS12#,MS12#,YS120198308-198708

main90948-01033iMS125..4FC198509-198708

W/TEMS

48510PCUSHION, FRONT SHOCK ABSORBER, NO.2

main90948-01028iGS12#,LS12#,MS12#,YS120198308-198708

main90948-01034iMS125..4FC198509-198708

W/TEMS

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02093iMS125..4FC198509-198708

W/TEMS

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-30410iMS125..4FC198509-198708

KYB,W/TEMS

sub48511-39585

main48511-30420iMS125..4FC198509-198708

TOKICO,W/TEMS

sub48511-39585

main48511-39375iLS120,MS120..(HT,SED)..(DSL,TBO,TD,TDE)198308-198708

sub48511-39376

main48511-39385iGS126,LS126198308-198708

sub48511-39386

main48511-39395iGS120,LS120..WG;GS121,MS123,125198308-198708

sub48511-39396

main48511-39405iGS120,MS120,YS120..(HT,SED)..(EFI,LPG)198308-198708

sub48511-39395

48553CAP, SHOCK ABSORBER, UPPER

main48553-30010iMS125..4FC198509-198708

48559COVER, SHOCK ABSORBER, DUST

main48559-30020iGS120..4H..DLX;LS120..4H..STD198308-198708

TAXI SPEC

main48559-30020iMS120,YS120..LPG198308-198708

48660BAR ASSY, STRUT, RH

main48660-30050iLS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL198308-198708

W/POWER STEERING

main48660-30070iGS120..WG..MTM198308-198708

48670BAR ASSY, STRUT, LH

main48670-30050iLS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL198308-198708

W/POWER STEERING

main48670-30060iGS120..WG..MTM198308-198708

48674CUSHION, STRUT BAR

main48674-22020iYS120198703-198708

main48674-29025iYS120198308-198703

sub48674-22020

main48674-30031iGS12#,LS12#,MS12#198509-198708

main48674-39065iGS12#,LS12#,MS12#198308-198402

sub48674-39066

main48674-39066iGS12#,LS12#,MS12#198402-198509

sub48674-30031

sub90540-22006

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030iYS120198308-198708

main90948-02071iGS12#,LS12#,MS12#198308-198708

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18011iGS12#,LS12#,MS12#198308-198409

sub90387-18013

main90387-18013iGS12#,LS12#,MS12#198409-198708

main90387-18129iYS120198308-198708

48674CCUSHION(FOR STRUT BAR CUSHION)

main90540-22005iGS12#,LS12#,MS12#198308-198509

main90540-22006iGS12#,LS12#,MS12#198509-198708

48811BAR, STABILIZER, FRONT

main48811-30190iGS121,MS123,125198308-198708

OD=26

main48811-30200iGS120..WG..SDX198308-198708

OD=25

main48811-30200iGS120..WG..SAL198405-198509

GRAND SURF

main48811-30210iMS120..LPG;GS120,126..V,WG198308-198708

OD=24

main48811-30220iYS120198308-198502

OD=23

sub48811-30210

sub48815-30080

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30080iYS120198308-198708

STABILIZER BAR OD=24

main48815-30090iGS120..WG..SAL198405-198509

GRAND SURF

main48815-30090iLS120;GS120,LS126,MS120..(HT,SED,V)..(DSL,EFI,TBO)198308-198708

STABILIZER BAR OD=25

main48815-30100iGS121,MS123,125198308-198708

STABILIZER BAR OD=26

main48815-30120iYS120198308-198502

STABILIZER BAR OD=23

48817CUSHION, FRONT STABILIZER

main48817-30020iGS12#,LS12#,MS12#,YS120198308-198708

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iGS12#,LS12#,MS12#,YS120198308-198708

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iGS12#,LS12#,MS12#,YS120198308-198708

48817DBOLT(FOR FRONT STABILIZER)

main48819-30020iGS12#,LS12#,MS12#,YS120198308-198708

48824BRACKET, STABILIZER, FRONT

main48824-30050iGS12#,LS12#,MS12#,YS120198308-198708

9017908034

main90179-08034

9017918007

main90179-18007

9020118008

main90201-18008

9161640828

main91616-40828

9165560825

main91655-60825

9411041000

main94110-41000

9411541200

main94115-41200

9418461200

main94184-61200

33 parts on this diagram · 1 diagram in section
