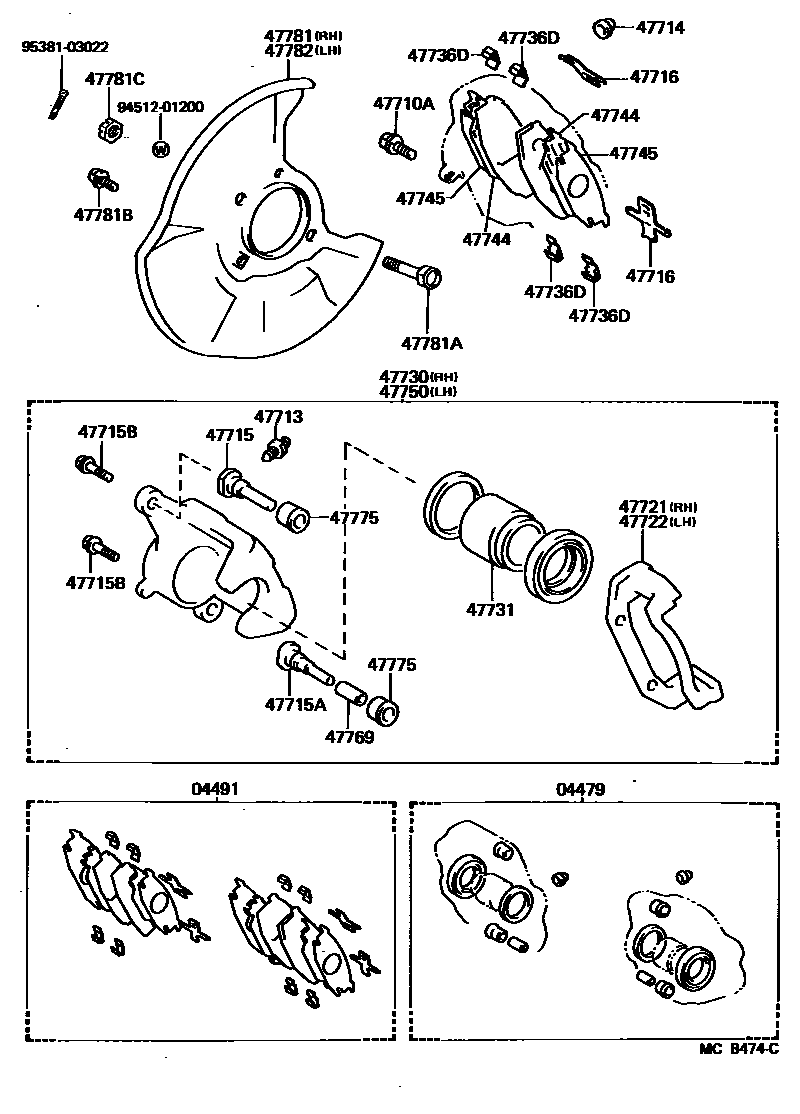

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30060iGS12#,LS12#,MS12#,YS120198308-198708

04491PAD KIT, DISC BRAKE, FRONT

main04491-30121iMS120,YS120..LPG198308-198406

TAXI SPEC

sub04491-30122

main04491-30122iMS120,YS120..LPG198406-198708

TAXI SPEC

sub04465-30021

main04491-30150iGS12#,LS12#,MS123,125198308-198501

sub04465-30021

main04491-30170iMS120..TBO198501-198604

sub04491-30171

main04491-30171iGS12#,LS12#,MS125198604-198708

sub04465-30021

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iGS12#,LS12#,MS12#,YS120198308-198708

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020iGS12#,LS12#,MS12#,YS120198308-198708

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGS12#,LS12#,MS12#,YS120198308-198708

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-30010iGS12#,LS12#,MS12#,YS120198308-198708

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-39015iGS12#,LS12#,MS12#,YS120198308-198708

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08019iGS12#,LS12#,MS12#,YS120198308-198708

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-30020iGS12#,LS12#,MS12#,YS120198308-198604

sub47716-30021

main47716-30021iGS12#,LS12#,MS12#,YS120198604-198708

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30030iGS12#,LS12#,MS12#,YS120198308-198708

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-30030iGS12#,LS12#,MS12#,YS120198308-198708

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30130iGS12#,LS12#,MS12#,YS120198308-198708

47731PISTON, FRONT DISC BRAKE

main47731-30050iGS12#,LS12#,MS12#,YS120198308-198708

47736DLINER, FRONT DISC BRAKE PAD

main47736-30030iGS12#,LS12#,MS12#,YS120198308-198604

main47736-30031iGS12#,LS12#,MS12#,YS120198604-198708

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-22050iLS120..4H..STD198406-198708

INNER

main47744-22050iGS120..4H..DLX;LS120..4H..STD198406-198708

INNER,TAXI SPEC

main47744-30110iLS120..4H..STD198604-198708

OUTER,TAXI SPEC

main47744-30110iGS12#,LS12#,MS12#,YS120198308-198708

OUTER

main47744-30140iGS12#,LS12#,MS125198604-198708

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47742-30040iGS12#,LS12#,MS125198604-198708

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30130iGS12#,LS12#,MS12#,YS120198308-198708

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-30010iGS12#,LS12#,MS12#,YS120198308-198708

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30010iGS12#,LS12#,MS12#,YS120198308-198708

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-30080iYS120198308-198509

W/POWER STEERING

sub47703-30110

main47703-30090iMS123,125198308-198708

W/ESC

main47703-30100iGS120..WG..MTM;GS126,LS126,YS120198308-198509

sub47703-30120

main47703-30110iLS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL198509-198708

W/POWER STEERING

main47703-30120iGS120,LS120,MS120..MTM..(DLX,STD)198509-198708

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12009iGS12#,LS12#,MS12#,YS120198308-198708

47781BBOLT(FOR DUST COVER SETTING)

main91611-60812iGS12#,LS12#,MS12#,YS120198308-198708

sub91611-B0812

main91611-60825iGS12#,LS12#,MS12#,YS120198308-198708

sub91611-B0825

main91611-60830iMS123198308-198407

main91615-60835iMS123,125198407-198708

sub91611-60835

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iGS12#,LS12#,MS12#,YS120198308-198708

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-30080iYS120198308-198509

W/POWER STEERING

sub47704-30110

main47704-30090iMS123,125198308-198708

W/ESC

main47704-30100iGS120..WG..MTM;GS126,LS126,YS120198308-198509

sub47704-30120

main47704-30110iLS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL198509-198708

W/POWER STEERING

main47704-30120iGS120,LS120,MS120..MTM..(DLX,STD)198509-198708

9451201200

main94512-01200

9538103022

main95381-03022

26 parts on this diagram · 2 diagrams in section
