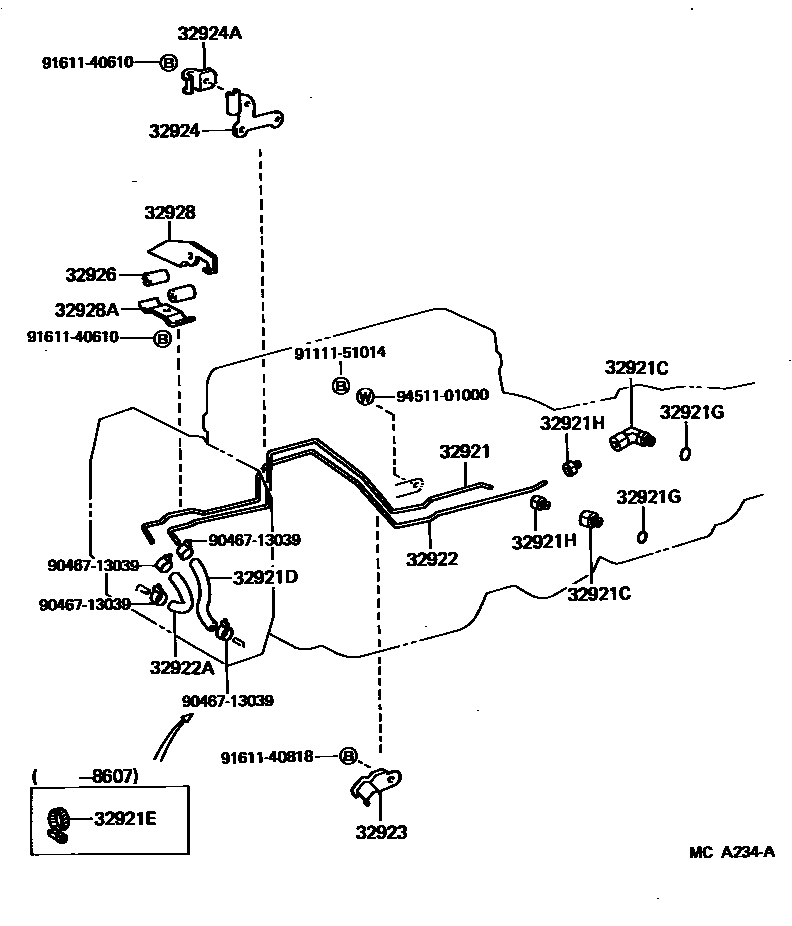

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-30270iMS120,123..ATM..(LPG,TWC)198308-198607

main32921-30280iGS120,121..ATM..(EFI,TWC)198308-198607

main32921-30290iMS120..TBO198308-198509

main32921-30300iLS12#..4FC..DSL198308-198607

main32921-30310iLS120..TDE198308-198607

main32921-30320iMS125198408-198708

main32921-30330iGS121..SPC198509-198708

main32921-30350iGS120,121..ATM..(EFI,TWC)198607-198708

main32921-30370iMS120..ATM198607-198708

main32921-30390iLS12#..4FC..DSL198607-198708

main32921-30400iLS120..TDE198607-198708

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

INLET

main90404-16020iMS125;GS121..SPC198408-198708

INLET

sub90404-16029

main90407-14003iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

OUTLET

main90407-16009iMS125;GS121..SPC198408-198708

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-22020iMS120,123..ATM198308-198607

main32941-30070iMS120..ATM198607-198708

sub32941-30071

main32942-22010iGS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC)198308-198607

main32942-22060iGS120,121,LS12#,MS125..ATM..(DSL,EFI,TDE,TWC)198607-198708

sub32942-22061

main32942-30030iMS125198408-198607

main90445-15032iGS121..SPC198607-198708

sub90445-15047

main90445-16021iGS121..SPC198509-198607

sub90445-16030

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085×4iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198607

sub90460-20004

main90460-18002×4iMS125;GS121..SPC198408-198607

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

main90301-11006×2iMS125;GS121..SPC198408-198708

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004×2iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-30270iMS120,123..ATM..(LPG,TWC)198308-198607

main32922-30280iGS120,121..ATM..(EFI,TWC)198308-198607

main32922-30290iMS120..TBO198308-198509

main32922-30300iLS12#..4FC..DSL198308-198607

main32922-30310iLS120..TDE198308-198607

main32922-30320iMS125198408-198708

main32922-30330iGS121..SPC198509-198708

main32922-30350iGS120,121..ATM..(EFI,TWC)198607-198708

main32922-30370iMS120198607-198708

main32922-30390iLS12#..4FC..DSL198607-198708

main32922-30400iLS120..TDE198607-198708

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-30050iGS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC)198308-198607

main32942-22010iMS120,123..ATM198308-198607

main32942-22060iMS120..ATM198607-198708

sub32942-22061

main32942-30050iGS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC)198607-198708

sub32942-30051

main90445-15015iGS121..SPC198607-198708

sub90445-15046

main90445-16022iMS125;GS121..SPC198408-198607

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-14010iMS120..TBO198308-198509

main32923-30080iGS120,121,MS120,123..ATM..(EFI,LPG,TWC)198308-198708

main32923-30090iLS12#..4FC198308-198708

main32923-30110iMS125198408-198410

main32923-30120iMS125;GS121..SPC198410-198609

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-22040iMS120,123..ATM198308-198708

main32924-30090iLS12#..4FC198308-198708

main32924-30100iGS120,121..ATM198308-198708

main32924-30120iMS125198408-198708

sub32924-30160

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-30060iMS120,123..ATM198308-198708

main32929-30090iGS120,121..ATM..(EFI,TWC)198308-198708

main32929-30110iMS125198408-198708

main32929-30120iGS121..SPC198509-198708

main90462-12085iLS12#..4FC198308-198708

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010×8iGS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC)198308-198708

main32926-30020×2iMS125;GS121..SPC198408-198708

32928CLAMP, FLEXIBLE HOSE, NO.1

main15781-42020iMS125198408-198708

main15781-45012iMS120,123..ATM198308-198708

main32928-24010iGS120..ATM198308-198708

main32928-30050iLS12#..4FC198308-198708

main32928-30080iGS121..SPC198509-198708

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32928-30060iLS12#..4FC198308-198708

main32929-30110iGS121..SPC198509-198708

main90461-12028iMS120,123..ATM198308-198708

main90462-12085iGS120,121..ATM..(EFI,TWC)198308-198708

main90929-01043iMS125198408-198708

9046713039

main90467-13039

9111151014

main91111-51014

9161140610

main91611-40610

9161140818

main91611-40818

9451101000

main94511-01000

19 parts on this diagram · 8 diagrams in section
