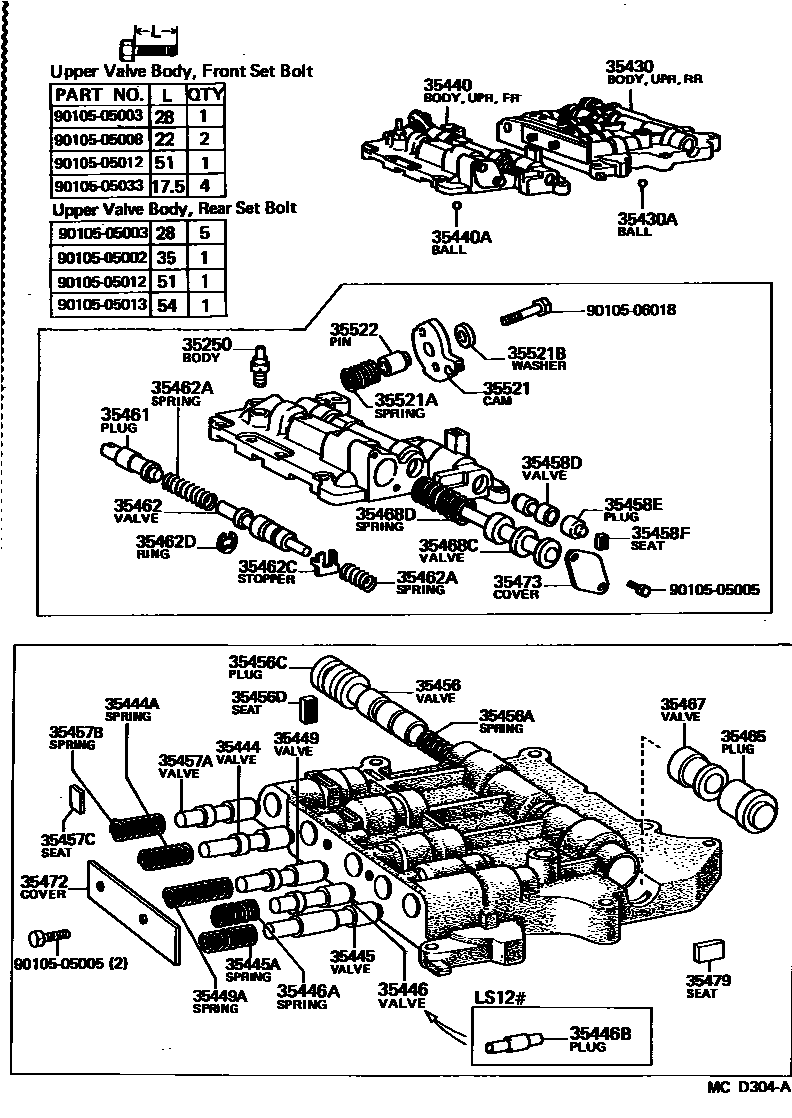

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0012 1 0014 1 0016 1

35250BODY ASSY, CHECK BALL

main35250-30010iLS12#,MS120..ATM..(DSL,LPG,TDE)198409-198708

35430BODY ASSY, REAR UPPER VALVE

main35430-20010iLS12#..4FC..DSL198308-198708

main35430-28030iGS120..ATM198511-198708

main35430-30090iMS120..ATM..LPG198308-198708

main35430-30110iLS120..TDE198308-198708

main35430-30120iGS121,MS120,123..ATM..(TBO,TWC)198308-198708

main35430-30130iGS120..ATM198308-198511

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010×3iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

sub35495-22020

main90360-06023×6iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

35440BODY ASSY, FRONT UPPER VALVE

main35440-14010iGS120..ATM198308-198511

main35440-22110iMS120..TBO198408-198509

main35440-22111iGS121..4FC..TWC198511-198708

main35440-28031iGS120..ATM198511-198708

main35440-30050iMS120..ATM..LPG198308-198409

main35440-30051iMS120..ATM..LPG198409-198708

main35440-30070iGS121..ATM..TWC198408-198511

main35440-30080iLS12#..4FC198308-198409

main35440-30081iLS12#..4FC198409-198708

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22010iLS12#,MS120..ATM..(DSL,LPG,TDE)198308-198708

sub35495-22020

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010×2iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-08725iGS121,MS120,123..ATM..(TBO,TWC)198308-198708

LWR

main90501-09686iGS121,MS120,123..ATM..(TBO,TWC)198312-198708

INTERMEDIATE

main90501-11001iMS123198308-198312

INTERMEDIATE

main90501-11009iGS120,LS120,MS120..ATM..(EFI,LPG,TDE)198308-198511

35445VALVE, LOW MODULATOR

main35445-22010iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

35446VALVE, GOVERNOR MODULATOR

main35446-22010iGS120,MS120..ATM..(EFI,LPG)198308-198511

35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)

main90501-07688iGS120,MS120..ATM..(EFI,LPG)198308-198511

35446BPLUG, GOVERNOR MODULATOR VALVE

main35446-20010iLS12#..4FC198308-198511

35449VALVE, SEQUENCE

main35447-22010iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

UPR VALVE BODY

main35449-22010iGS120..ATM198308-198708

LWR VALVE BODY

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12055iGS120..ATM198308-198708

UPR VALVE BODY

main90501-12726×2iGS120..ATM198308-198708

LWR VALVE BODY

35456VALVE, 2-3 SHIFT

main35456-22010iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

main35456-30050iGS121,MS120,123..ATM..(TBO,TWC)198308-198708

main35456-30060iMS125;GS121..SPC198408-198708

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08724iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

main90501-09028iGS121,MS120,123..ATM..(TBO,TWC)198308-198708

main90501-09053iMS125;GS121..SPC198408-198708

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

main35452-30010iGS121,MS120,123..ATM..(TBO,TWC)198308-198512

main90339-03004iMS125;GS121..SPC198408-198512

main90339-05014iGS121,MS125..ATM198512-198708

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

main35493-30030iGS121,MS120,123..ATM..(TBO,TWC)198308-198708

35457AVALVE, DETENT REGULATOR

main35457-22010iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09006iMS120..ATM..LPG198308-198708

main90501-09022iGS120..ATM198308-198708

main90501-09025iLS12#..4FC198308-198708

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

35458DVALVE, CUT BACK

main35458-22010iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

main35458-30020iGS121,MS120,123..ATM..(TBO,TWC)198308-198708

main35458-30030iMS125;GS121..SPC198408-198708

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

main90339-04002iMS125;GS121..SPC198408-198708

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

35461PLUG, DOWN SHIFT

main35408-30010iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

main35408-30020iGS121,MS120,123..ATM..(TBO,TWC)198308-198708

main35408-30040iMS125;GS121..SPC198408-198708

35462VALVE, THROTTLE

main35462-22011iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

main35462-30020iMS125;GS121..SPC198408-198708

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07051iMS125;GS121..SPC198408-198708

main90501-07680iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

main90501-11011iGS121,MS120,123..ATM..(TBO,TWC)198308-198708

PRIMARY

main90501-12011iMS120..ATM198511-198708

main90501-12045iLS12#..4FC198308-198708

main90501-12077iGS120..ATM198511-198708

35462CSTOPPER, VALVE VIBRATING

main35422-22010iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023×6iGS120,121,LS12#,MS12#..ATM198308-198708

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

35468CVALVE, SECONDARY REGULATOR

main35204-30010iGS120,121..ATM..(EFI,TWC)198605-198708

main35468-12020iMS125;GS121..SPC198408-198708

main35468-14010iGS120..ATM198508-198605

main35468-22010iLS12#,MS120..ATM..(DSL,LPG,TDE)198308-198708

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-15007iMS125;GS121..SPC198408-198708

main90501-19001iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

35472COVER, VALVE BODY, NO.2

main35472-22010iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

main35472-30010iGS121,MS120,123..ATM..(TBO,TWC)198308-198708

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

35521CAM, THROTTLE VALVE

main35521-20010iLS12#..4FC198308-198708

main35521-22040iGS121..4FC..TWC198511-198708

main35521-30010iGS120,MS120..ATM..(EFI,LPG)198308-198708

main35521-30030iMS125198511-198708

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-11007iMS125;GS121..SPC198408-198708

main90508-12331iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iGS120,121,LS12#,MS12#..ATM198308-198708

35522PIN, THROTTLE VALVE CAM

main35522-22010iGS120,121,LS12#,MS12#..ATM198308-198708

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505008

main90105-05008

9010505012

main90105-05012

9010505013

main90105-05013

9010505033

main90105-05033

9010506018

main90105-06018

48 parts on this diagram · 13 diagrams in section
