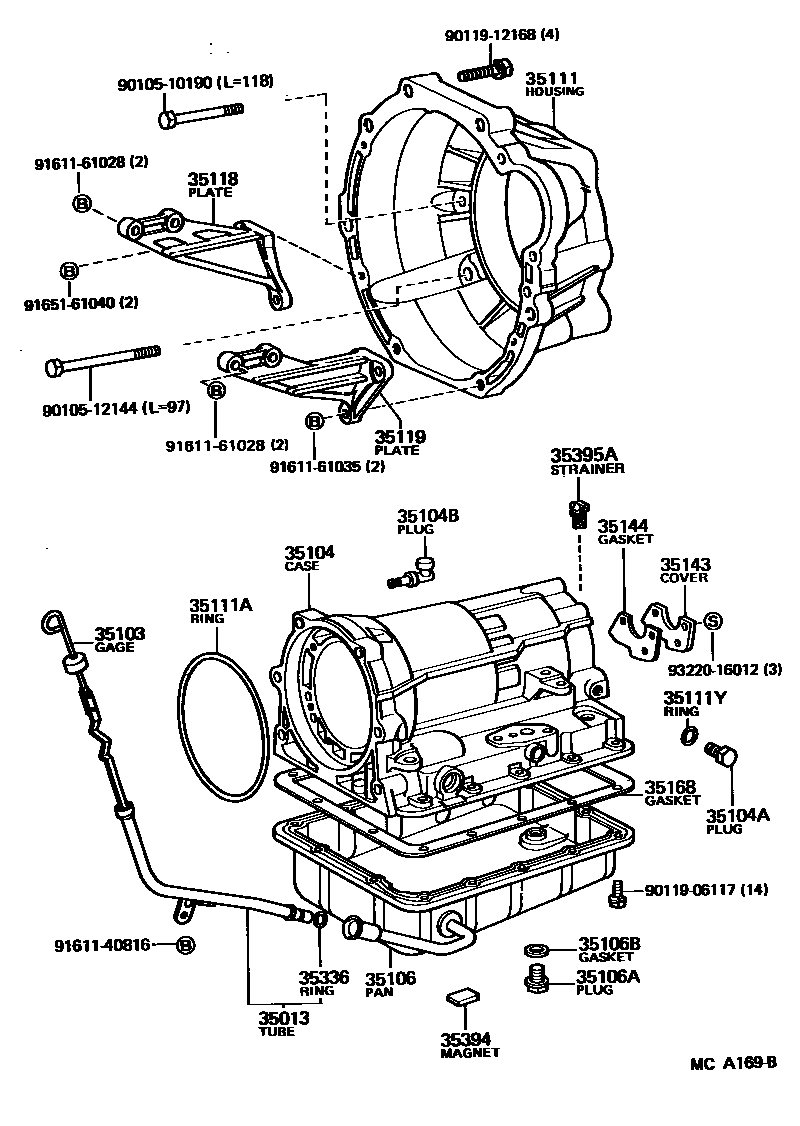

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-22120iGS120..ATM198308-198708

main35013-30071iMS120..ATM..LPG198308-198708

main35013-30080iLS12#..4FC198308-198610

main35013-30110iGS121..ATM198308-198708

main35013-30120iMS12#..TBO,TWC198308-198708

main35013-30160iLS12#..4FC198610-198708

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-30101iLS12#..4FC198308-198610

main35103-30111iGS121,MS120,123..ATM..(LPG,TBO,TWC)198308-198708

main35103-30131iGS120..ATM198308-198708

main35103-30150iMS125;GS121..SPC198408-198708

main35103-30190iLS12#..4FC198610-198612

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26020iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198410

sub35104-26030

main35104-26021iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198410-198708

main35104-30100iGS121,MS120,123..ATM..(TBO,TWC)198308-198410

sub35104-30150

main35104-30101iGS121,MS120..ATM..(TBO,TWC)198410-198708

main35104-30131iMS125;GS121..SPC198408-198601

main35104-30132iMS125;GS121..SPC198601-198604

main35104-30133iGS121..SPC198604-198708

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iGS120,121,LS12#,MS12#..ATM198308-198708

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03069iGS120,121,LS12#,MS12#..ATM198308-198608

main90930-03108iGS120,121,LS12#,MS12#..ATM198608-198708

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30040iLS12#..4FC198308-198708

sub35106-30041

main35106-30050iGS120,121,MS120,123..ATM..(EFI,LPG,TBO,TWC)198308-198708

sub35106-30051

main35106-30070iMS125;GS121..SPC198408-198704

main35106-30100iGS121,MS125198704-198708

sub35106-30101

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iGS120,121,LS12#,MS12#..ATM198308-198708

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGS120,121,LS12#,MS12#..ATM198308-198708

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-14070iMS120,123..ATM198308-198708

main35111-22060iLS12#..4FC198308-198708

sub35111-26030

main35111-24010iGS120,121..ATM..(EFI,TWC)198308-198708

main35111-24020iMS125198408-198708

sub35111-24021

main35111-24030iGS121..SPC198509-198511

main35111-24031iGS121..SPC198511-198708

sub35111-22100

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99006iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

sub90301-99054

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iGS120,121,LS12#,MS12#..ATM198308-198708

35118PLATE, STIFENER, RH (ATM)

main33118-22040iMS12#..ATM198308-198608

main33118-22050iGS120,121..ATM198308-198604

main33118-22051iGS120,121..ATM198604-198708

main33118-22060iMS12#..ATM198608-198708

main33118-25020iLS12#..4FC198308-198708

35119PLATE, STIFENER, LH (ATM)

main33119-22030iMS12#..ATM198308-198708

main33119-22041iGS120,121..ATM198308-198604

main33119-22042iGS120,121..ATM198604-198708

main33119-25020iLS12#..4FC198308-198708

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

sub35144-28010

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGS120,121,LS12#,MS12#..ATM198308-198708

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iGS120,121,LS12#,MS12#..ATM198308-198708

35395ASTRAINER, GOVERNOR OIL

main35395-40010iGS120,MS120..ATM..(EFI,LPG)198309-198708

9010510190

main90105-10190

9010512144

main90105-12144

9011906117

main90119-06117

9011912168

main90119-12168

9161140816

main91611-40816

9161161028

main91611-61028

9161161035

main91611-61035

9165161040

main91651-61040

9322016012

main93220-16012

28 parts on this diagram · 5 diagrams in section
