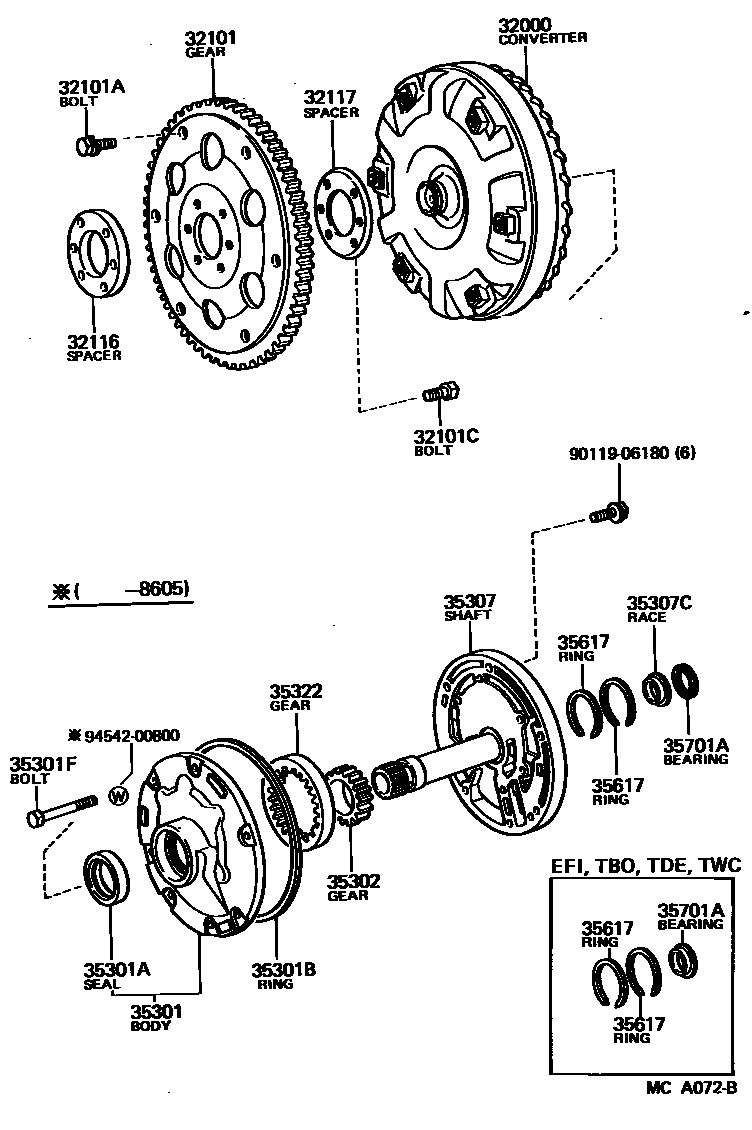

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-14070iMS123198308-198408

sub32000-14071

main32000-14090iLS12#,MS120..ATM..(DSL,LPG)198308-198407

sub32000-14091

main32000-14091iLS12#,MS120..ATM..(DSL,LPG)198407-198708

main32000-14100iLS120..TDE198308-198407

sub32000-14101

main32000-14101iLS120..TDE198407-198708

main32000-24010iGS120,121..ATM198308-198408

sub32000-24011

main32000-24011iGS120,121..ATM..(EFI,TWC)198408-198708

main32000-30110iMS120..TBO198308-198408

sub32000-30111

main32000-30111iMS120..TBO198408-198509

main32000-30120iMS125198408-198708

main32000-30130iGS121..SPC198509-198708

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14030iGS120..ATM198308-198311

sub32101-22030

main32101-22030iGS120,121..ATM198308-198708

sub32101-22031

main32101-30040iMS12#..ATM198308-198408

main32101-30051iLS12#..4FC198308-198708

main32101-30060iMS12#..ATM198408-198708

sub32101-30061

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iGS120,121,LS12#,MS12#..ATM198308-198408

main90109-08113iGS120,121,LS12#,MS12#..ATM198408-198708

main90119-08498iGS120,121,LS12#,MS12#..ATM198408-198708

main91611-60812iGS120,121,LS12#,MS12#..ATM198308-198408

sub91611-B0812

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046iGS120,121..ATM198308-198708

main90105-12014iLS12#..4FC198308-198708

main90109-10037iMS12#..ATM198308-198708

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iGS120,121..ATM198308-198708

main32116-30011iMS12#..ATM198308-198708

main32116-30020iLS12#..4FC198308-198708

32117SPACER, DRIVE PLATE, REAR

main32117-14011iGS120,121..ATM198308-198708

main32117-30011iMS12#..ATM198308-198708

main32117-30020iLS12#..4FC198308-198708

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iGS120,121,MS120,123..ATM..(EFI,TBO,TWC)198308-198708

main35301-30030iLS12#,MS120..ATM..(DSL,LPG,TDE)198308-198708

main35301-30040iMS125;GS121..SPC198408-198708

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198312-198708

main90311-38029iMS125;GS121..SPC198408-198708

sub90311-38020

main90311-38129iGS120,121,LS12#,MS12#..ATM198308-198312

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

main90301-99033iMS125;GS121..SPC198408-198708

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90101-08042iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198605

sub90105-08137

main90105-08091iMS125;GS121..SPC198408-198708

main90105-08137iGS120,121,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE,TWC)198605-198708

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-14010iGS120,121,MS120,123..ATM..(EFI,TBO,TWC)198308-198708

sub35321-22020

sub35321-22030

sub35321-22040

sub35321-22050

sub35321-22060

main35321-22010iLS12#,MS120..ATM..(DSL,LPG,TDE)198308-198708

sub35321-22090

35307SHAFT SUB-ASSY, STATOR

main35370-14011iGS120,121,MS120,123..ATM..(EFI,TBO,TWC)198308-198412

sub35370-14012

main35370-14012iGS120,121,MS120..ATM..(EFI,TBO,TWC)198412-198708

main35370-22030iLS12#,MS120..ATM..(DSL,LPG)198308-198412

sub35370-22031

main35370-22031iLS12#,MS120..ATM..(DSL,LPG)198412-198708

main35370-30022iLS120..TDE198308-198412

sub35370-30023

main35370-30023iLS120..TDE198412-198708

main35370-30030iMS125198408-198412

sub35370-30031

main35370-30031iMS125;GS121..SPC198412-198708

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main35789-30020iMS125;GS121..SPC198408-198708

sub35789-30340

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iGS120,121,MS120,123..ATM..(EFI,TBO,TWC)198308-198708

sub35322-22020

sub35322-22030

sub35322-22040

sub35322-22050

sub35322-22060

main35322-22010iLS12#,MS120..ATM..(DSL,LPG,TDE)198308-198708

sub35322-22090

main35322-32020iMS125;GS121..SPC198408-198610

sub35322-32050

main35322-32050iMS125198610-198708

sub35322-12080

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

main35617-30020iMS125;GS121..SPC198408-198708

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main90374-25003iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

9011906180

main90119-06180

9454200800

main94542-00800
