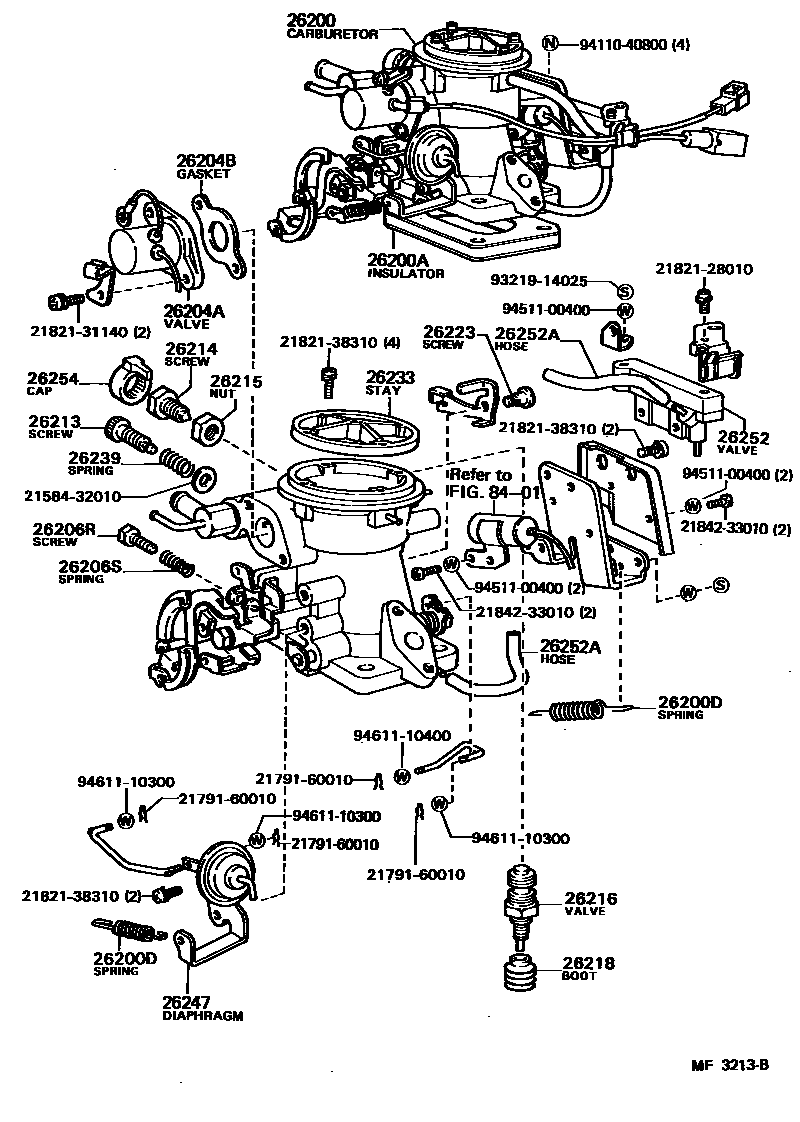

LPG CARBURETOR
26200CARBURETOR ASSY, LPG
26200AINSULATOR, LPG CARBURETOR HEAT
sub21912-41061
26200DSPRING, BACK(FOR LPG)
26204AVALVE, THROTTLE SOLENOID(FOR LPG)
26204BGASKET, SOLENOID VALVE(FOR LPG)
26206RSCREW, THROTTLE ADJUST(FOR LPG)
26206SSPRING, IDLE ADJUST SCREW(FOR LPG)
26213SCREW, ADJUST
sub26214-10010
26214SCREW, POWER ADJUST
26215NUT, POWER ADJUST
26218BOOT(FOR POWER VALVE)
26223SCREW, SET(FOR POWER VALVE CAM)
26233STAY, STUD
26239SPRING
26247DIAPHRAGM
26252VALVE, THERMOSTATIC
26252AHOSE, CONNECTING
sub90079-71001
26254CAP, POWER SCREW LIMIT
8401
2158432010SHIM, CHOKE ROD BELLCRANK SHAFT
main21584-32010
2179160010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-60010
2182128010SCREW, 2ND THROTTLE VALVE SET
main21821-28010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2184233010SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-33010
9321914025
main93219-14025
9411040800
main94110-40800
9451100400
main94511-00400
9461110300
main94611-10300
9461110400
main94611-10400
31 parts on this diagram · 3 diagrams in section
