EXHAUST GAS RECIRCULATION SYSTEM

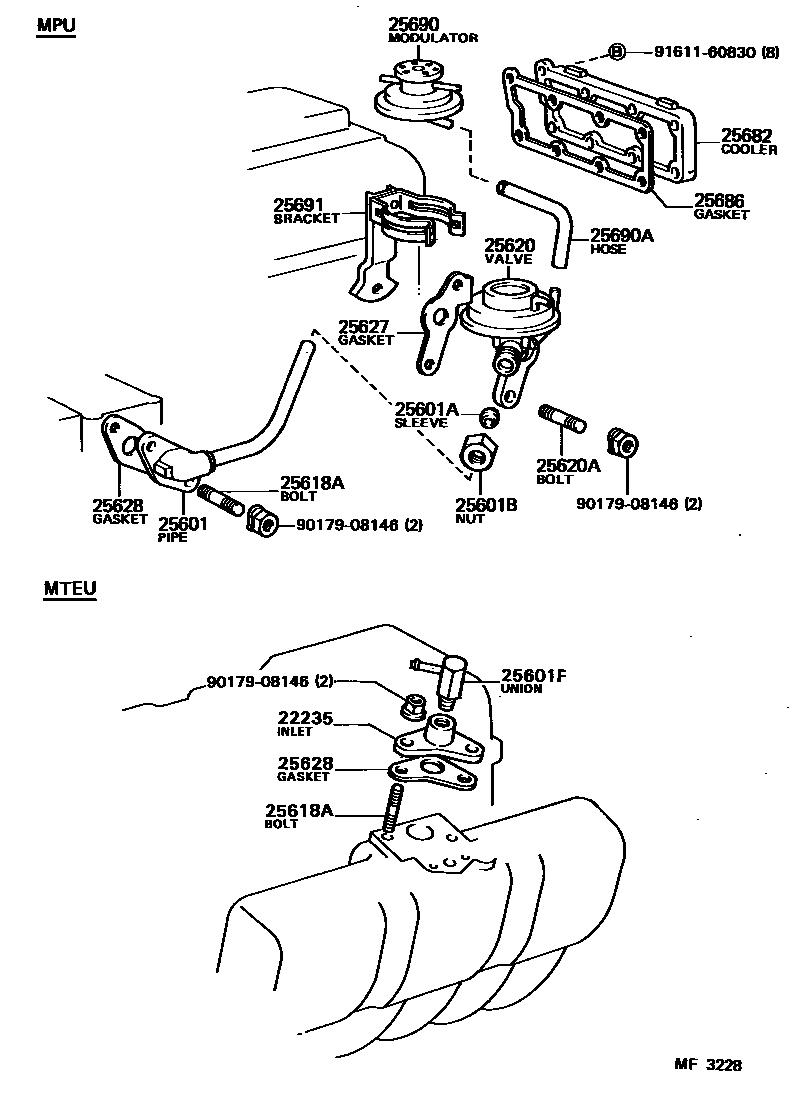

Parts diagram
22235INLET, AUXILIARY AIR
main22235-43010i198308-198509
25601PIPE SUB-ASSY, EGR, NO.1
main25601-41040i198308-198708
main25611-72010i198308-198708
25601ASLEEVE, BALL, EGR PIPE, NO.1
main90410-12042i198308-198708
VALVE SIDE
main90410-14001i198308-198708
sub90410-14003
main90410-16001i198308-198708
UNION SIDE
25601BNUT, UNION, EGR PIPE, NO.1
main90402-20073i198308-198708
VALVE SIDE
main90402-22010i198308-198708
UNION SIDE
main90402-22076i198308-198708
25601FUNION(FOR EGR PIPE, NO.1)
main90404-22003i198308-198708
main90404-53027i198308-198708
25618ABOLT, STUD(FOR EGR INLET)
main90116-08025i198308-198708
25620VALVE ASSY, EGR
main25620-41160i198308-198708
main25620-72010i198308-198708
sub25620-72011
sub90445-11078
25620ABOLT, STUD(FOR EGR VALVE)
main90116-08008i198308-198512
main90116-08025i198308-198708
L=34,S=16&11
main92112-40820i198512-198708
25627GASKET, EGR VALVE
main25627-31020i198308-198708
main25627-43020i198308-198408
SURGE TANK
sub25627-43100
main25627-43030i198308-198610
HEAD
sub25627-42040
main25627-45011i198308-198708
sub25627-43130
25628GASKET, EGR INLET
main25628-45011i198308-198708
sub25628-43020
main25628-45020i198308-198509
25682COOLER, EGR, NO.2
main25682-45020i198308-198708
25686GASKET, EGR COOLER, NO.2
main25686-45010i198308-198708
sub25686-43010
25690MODULATOR ASSY, EGR VACUUM
main25870-41010i198308-198708
main25870-72010i198308-198708
sub25870-71011
25690AHOSE(FOR EGR VACUUM MODULATOR)
main90445-11017i198308-198708
main90910-05137i198308-198708
sub90910-05128
25691BRACKET, EGR VACUUM MODULATOR
main25691-41030i198308-198708
main25691-72010i198308-198706
main25691-73030i198706-198708
9017908146
main90179-08146
9161160830
main91611-60830
