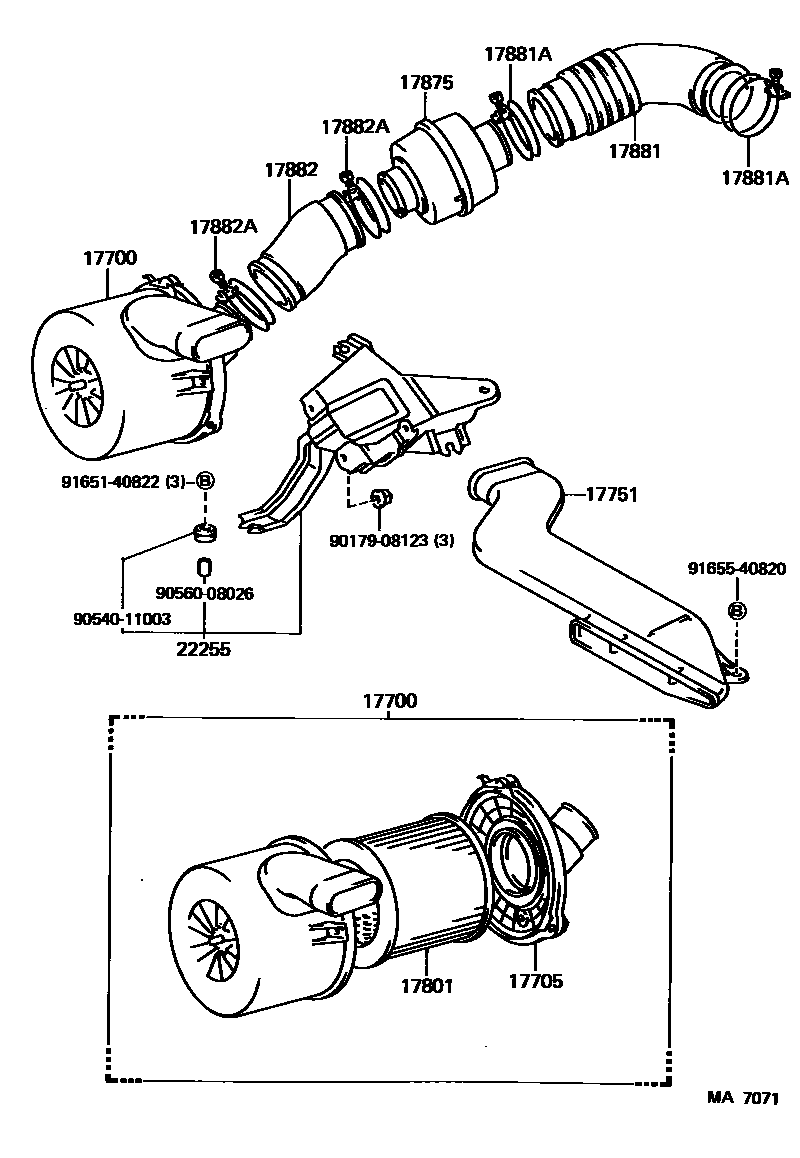

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

17700CLEANER ASSY, AIR

main17700-41600iMTEU..MS120198308-198509

main17700-41610iMPU..MS120198308-198708

main17700-42190i6MGEU..MS125198408-198708

main17700-42200i6MGEU..MS125198509-198708

main17700-43090i5MGEU..MS123198308-198509

main17700-43100i1GEJ..GS126198308-198509

main17700-43140i1GEJ..GS126198509-198708

main17700-54280i2L,2LT..LS12#198308-198708

main17700-54290i2LTE,2LTHE..LS120198308-198708

main17700-70020i1GEU..GS120198308-198708

main17700-70070i1GGZEU..GS121198607-198708

main17700-72012i3YPU..YS120198308-198608

sub17700-72013

sub12262-73020

main17700-72013i3YPU..YS120198608-198708

17705CAP SUB-ASSY, AIR CLEANER

main17705-41190iMTEU..MS120198308-198509

main17705-41200iMPU..MS120198308-198708

main17705-42070i6MGEU..MS125198509-198708

main17705-43050i1GGEU..GS121198308-198708

main17705-43060i1GEJ..GS126198308-198708

main17705-54090i2L,2LT..LS12#198308-198708

main17705-54100i2LTE,2LTHE..LS120198308-198708

main17705-70020i1GEU..GS120198308-198708

main17705-72011i3YPU..YS120198308-198608

sub17705-73060

sub12262-73020

main17705-73060i3YPU..YS120198608-198708

17751INLET, AIR CLEANER, NO.1

main53207-30120i3YPU..YS120198308-198708

main53299-30120iMPU..MS120198308-198708

main53299-30130iMTEU..MS120198308-198708

main53299-30150i1GG#,1GEJ..GS121,126198408-198708

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-41060iMPU..MS120198308-198708

main17801-41110i1GEU,1GG#,1GEJ..GS12#198308-198708

main17801-44040i3YPU..YS120198308-198708

main17801-54060i2L,2LT#..LS12#198308-198708

17875PIPE, INTAKE AIR CONNECTOR

main17875-43060i1GG#..GS121198308-198708

main17875-70040i1GEU..GS120198308-198708

17881HOSE, AIR CLEANER, NO.1

main17349-54010i2LT#..LS120198308-198708

main17349-54020i2L..LS12#198308-198708

main17881-41070iMTEU..MS120198308-198509

main17881-43060i5MGEU,6MGEU..MS123,125198308-198708

main17881-70060i1GEU..GS120198308-198708

main17881-70070i1GEJ..GS126198308-198509

main17881-70080i1GGEU..GS121198308-198708

main17881-70140i1GGZEU..GS121198509-198708

main17881-70150i1GEJ..GS126198509-198708

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-75001iMTEU..MS120198308-198509

main96111-10630i2LT#..LS120198308-198708

main96111-10670i2L..LS12#198308-198708

FLANGE SIDE

main96111-10710i1GEJ..GS126198308-198708

HOSE SIDE

main96111-10710i2L..LS12#198308-198708

THROTTLE BODY SIDE

main96111-10800i1GEJ..GS126198308-198708

AIR FLOW METER SIDE

main96111-10830i1GG#..GS121198308-198708

PIPE SIDE

main96111-10830i5MGEU,6MGEU..MS123,125198309-198708

main96111-10950i1GG#..GS121198308-198708

THROTTLE BODY SIDE

17882HOSE, AIR CLEANER, NO.2

main17881-54220i2L..LS12#198308-198708

AIR CLEANER SIDE

main17881-54230i2LT#..LS120198308-198708

main17882-30010i3YPU..YS120198308-198708

main17882-30020iMPU..MS120198308-198708

main17882-41110iMTEU..MS120198308-198509

main17882-43080i5MGEU,6MGEU..MS123,125198308-198708

main17882-54140i2L..LS12#198308-198708

INTAKE PIPE SIDE

main17882-70050i1GEU..GS120198308-198509

main17882-70060i1GG#..GS121198308-198708

main17882-70100i1GEU..GS120198509-198708

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main53297-30080i3YPU..YS120198308-198708

BODY SIDE

main90460-01017i3YPU..YS120198308-198708

AIR CLEANER SIDE

main96111-10670iMPU..MS120198308-198708

main96111-10710iMTEU..MS120198308-198509

TURBO SIDE

main96111-10710i2L,2LT#..LS12#198308-198708

main96111-10800iMTEU..MS120198308-198509

AIR FLOW METER SIDE

main96111-10830i1GG#..GS121198308-198708

PIPE SIDE

main96111-10900i1GG#..GS121198308-198708

AIR FLOW METER SIDE

22255BRACKET, AIR FLOW METER

main22209-41050iMTEU..MS120198308-198708

main22209-43020i5MGEU,6MGEU..MS123,125198308-198708

9017908123

main90179-08123

9054011003

main90540-11003

9056008026

main90560-08026

9165140822

main91651-40822

9165540820

main91655-40820

15 parts on this diagram · 12 diagrams in section
