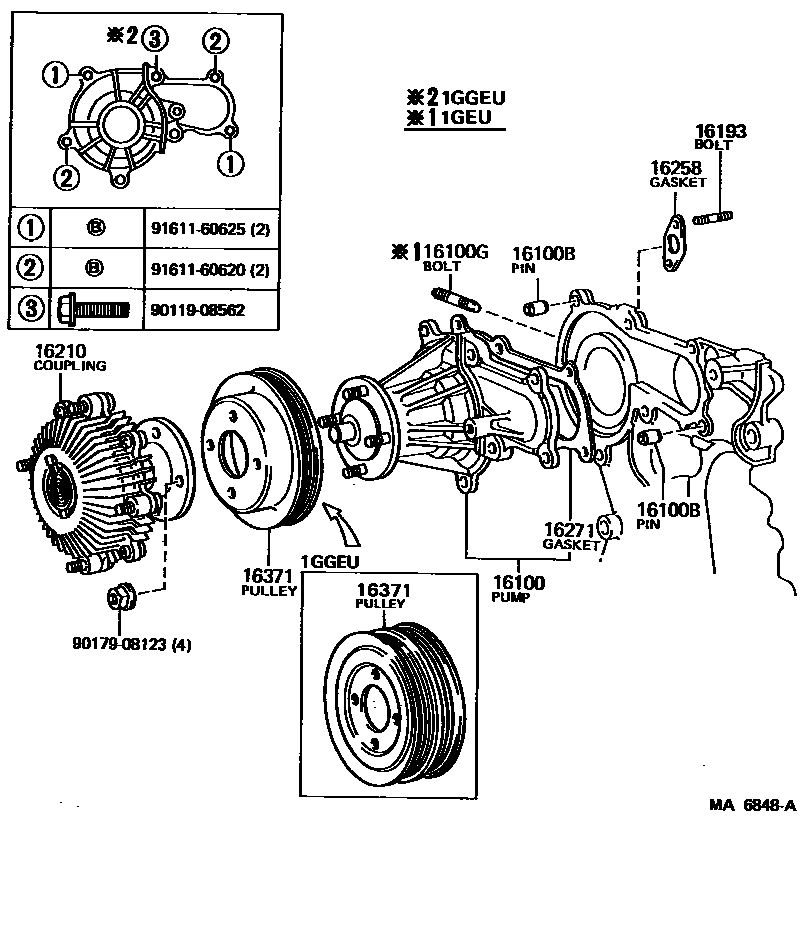

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16100PUMP ASSY, ENGINE WATER

main16100-49655i5MGEU,6MGEU..MS123,125198308-198708

sub16100-49656

main16100-49705iMPU..MS120198308-198708

sub16100-49706

main16100-49725iMTEU..MS120198308-198509

sub16100-49726

main16100-59137i2L,2LT#..LS12#198308-198708

sub16100-59138

main16100-79015i1GE#..GS120,126198308-198708

main16100-79025i1GGEU..GS121198308-198708

main16100-79035i3YPU..YS120198308-198704

sub16100-79036

main16100-79036i3YPU..YS120198704-198708

sub16100-79037

main16100-79055i1GGZEU..GS121198509-198708

16100BPIN, RING(FOR WATER PUMP SET)

main16159-71010i1GGZEU..GS121198509-198708

main16185-70010i1GEU,1GGEU,1GEJ..GS12#198308-198708

16100GBOLT, STUD(FOR WATER PUMP SET)

main16194-70010i1GE#..GS120,126198308-198708

main90116-08111iMPU,MTEU..MS120198308-198708

L=57,S=13&13

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010i1GEU,1GG#,1GEJ..GS12#198308-198708

main16193-41031iMPU,MTEU..MS120198308-198708

L=42,S=16&20

main16193-45100iMPU,MTEU..MS120198308-198708

16210COUPLING ASSY, FLUID

main16210-41190iMPU..MS120198608-198708

main16210-45100i6MGEU..MS125198308-198708

main16210-45110i1GGEU..GS121198308-198708

main16210-54060i2L,2LT#..LS12#198308-198708

main16210-70020i1GE#..GS120,126198308-198408

sub16210-70021

main16210-70021i1GE#..GS120,126198408-198506

sub16210-70022

main16210-70022i1GE#..GS120,126198506-198708

main16210-70030i1GGZEU..GS121198509-198708

main16210-72010i3YPU..YS120198308-198708

16258GASKET(FOR HEATER RETURN)

main16258-15011i1GEU,1GGEU,1GEJ..GS12#198308-198708

16271GASKET, WATER PUMP

main16124-70010i1GE#..GS120,126198308-198708

sub16124-70011

main16124-70030i1GGZEU..GS121198509-198708

main16124-88300i1GGEU..GS121198308-198708

sub16124-70041

main16271-41011iMPU,MTEU..MS120198308-198708

sub16271-43010

main16271-54012i2L,2LT#..LS12#198308-198708

sub16271-54013

16371PULLEY, FAN

main16173-43030i5MGEU,MPU,MTEU..MS12#198308-198309

NO.1

sub16173-43040

sub16171-43040

sub16178-43040

sub16198-43040

main16173-43040i5MGEU,6MGEU,MPU,MTEU..MS12#198309-198708

main16174-43030i5MGEU,MPU,MTEU..MS12#198308-198309

NO.2

sub16178-43H00

main16371-54020i2L,2LT#..LS12#198308-198708

main16371-70020i1GE#..GS120,126198308-198708

main16371-70040i1GGZEU..GS121198509-198708

main16371-73011i3YPU..YS120198308-198708

main16371-88301i1GGEU..GS121198308-198708

9011908562

main90119-08562

9017908123

main90179-08123

9161160620

main91611-60620

9161160625

main91611-60625

12 parts on this diagram · 6 diagrams in section
