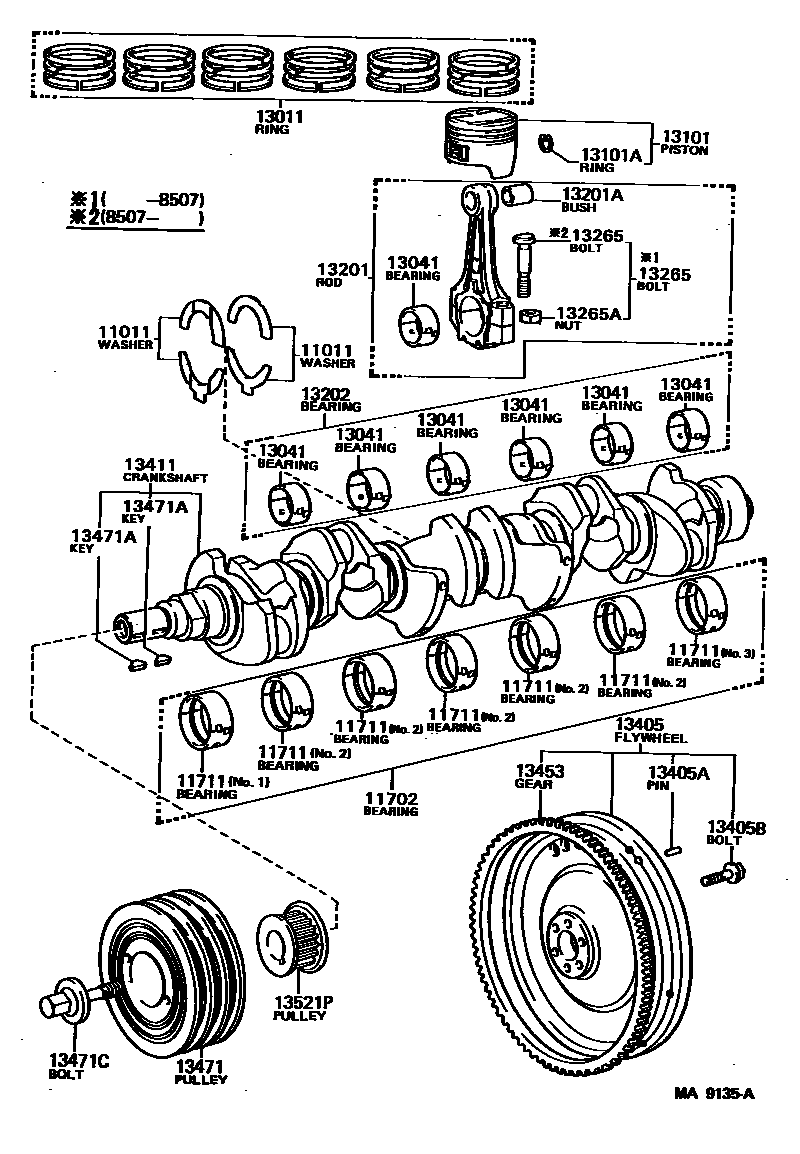

CRANKSHAFT & PISTON

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-25010i198308-198708
main11011-43010i198308-198708
main11011-54010i198308-198708
sub11011-54020
main11011-70010i198308-198708
main11012-43010i198308-198708
main11012-54010i198308-198708
sub11012-54020
main11013-43010i198308-198708
main11013-54010i198308-198708
sub11013-54020
11702BEARING SET, CRANKSHAFT
main11702-45011i198308-198408
main11703-45011i198308-198408
main11704-43010i198408-198708
main11704-45011i198308-198408
main11704-54060i198308-198708
sub11704-54061
main11704-70012i198308-198502
main11704-70020i198502-198708
sub11704-70021
main11704-71020i198603-198708
main11705-43010i198408-198708
main11705-45011i198308-198408
main11705-54060i198308-198708
sub11705-54061
11711BEARING, CRANKSHAFT
main11071-43010-01i198408-198708
NO.1,MARK"1",MARK 1
main11071-43010-02i198408-198708
NO.1,MARK"2",MARK 2
main11071-43010-03i198408-198708
NO.1,MARK"3",MARK 3
main11071-43010-04i198408-198708
NO.1,MARK"4",MARK 4
main11071-43010-05i198408-198708
NO.1,MARK"5",MARK 5
main11071-70010-01i198503-198708
NO.1,MARK"1",MARK 1
sub11071-70011
main11071-70010-02i198503-198708
NO.1,MARK"2",MARK 2
sub11071-70011
main11071-70010-03i198503-198708
NO.1,MARK"3",MARK 3
sub11071-70011
main11071-70010-04i198608-198708
NO.1,MARK"4",MARK 4
sub11071-70011
main11071-70010-05i198608-198708
NO.1,MARK"5",MARK 5
sub11071-70011
main11071-88300-01i198604-198708
NO.1,MARK"1",MARK 1
main11071-88300-02i198604-198708
NO.1,MARK"2",MARK 2
main11071-88300-03i198604-198708
NO.1,MARK"3",MARK 3
main11071-88300-04i198608-198708
NO.1,MARK"4",MARK 4
main11071-88300-05i198608-198708
NO.1,MARK"5",MARK 5
main11701-43010-01i198408-198708
NO.2,MARK"1",MARK 1
main11701-43010-02i198408-198708
NO.2,MARK"2",MARK 2
main11701-43010-03i198408-198708
NO.2,MARK"3",MARK 3
main11701-43010-04i198408-198708
NO.2,MARK"4",MARK 4
main11701-43010-05i198408-198708
NO.2,MARK"5",MARK 5
main11701-54060-01i198308-198708
MARK"1",MARK 1
sub11701-54061
main11701-54060-02i198308-198708
MARK"2",MARK 2
sub11701-54061
main11701-54060-03i198308-198708
MARK"3",MARK 3
sub11701-54061
main11701-70012-01i198308-198503
MARK"1",MARK 1
sub11701-63021
main11701-70012-02i198308-198503
MARK"2",MARK 2
sub11701-63021
main11701-70012-03i198308-198503
MARK"3",MARK 3
sub11701-63021
main11701-70020-01i198503-198708
NO.2,3,MARK"1",MARK 1
sub11701-63021
main11701-70020-02i198503-198708
NO.2,3,MARK"2",MARK 2
sub11701-63021
main11701-70020-03i198503-198708
NO.2,3,MARK"3",MARK 3
sub11701-63021
main11701-70020-04i198608-198708
NO.2,3,MARK"4",MARK 4
sub11701-63021
main11701-70020-05i198608-198708
NO.2,3,MARK"5",MARK 5
sub11701-63021
main11701-71020-01i198308-198708
MARK"1",MARK 1
main11701-71020-02i198308-198708
MARK"2",MARK 2
main11701-71020-03i198308-198708
MARK"3",MARK 3
main11701-88300-01i198308-198604
MARK"1",MARK 1
sub11701-88360
main11701-88300-02i198308-198604
MARK"2",MARK 2
sub11701-88360
main11701-88300-03i198308-198604
MARK"3",MARK 3
sub11701-88360
main11701-88360-01i198604-198708
NO.2,3,MARK"1",MARK 1
main11701-88360-02i198604-198708
NO.2,3,MARK"2",MARK 2
main11701-88360-03i198604-198708
NO.2,3,MARK"3",MARK 3
main11701-88360-04i198608-198708
NO.2,3,MARK"4",MARK 4
main11701-88360-05i198608-198708
NO.2,3,MARK"5",MARK 5
13011RING SET, PISTON
main13011-41015i198308-198708
main13011-42040i198602-198708
sub13011-42060
main13011-43050i198308-198602
STD
sub13011-42040
main13011-54060i198308-198509
sub13011-54061
main13011-54061i198509-198708
sub13011-54062
main13011-70010i198308-198708
main13011-70080i198509-198708
sub13011-70081
main13011-71030i198509-198702
sub13011-71031
main13011-71031i198702-198707
main13011-71060i198707-198708
main13011-72020i198308-198509
STD
sub13011-71060
main13011-88300i198308-198507
main13011-88301i198507-198708
main13013-41015i198308-198708
main13013-42040i198602-198708
sub13013-42060
main13013-43050i198308-198602
O/S 0.50
sub13013-42040
main13013-54060i198308-198509
O/S 0.50
sub13013-54061
main13013-54061i198509-198708
sub13013-54062
main13013-70010i198308-198708
main13013-70080i198509-198708
sub13013-70081
main13013-71030i198509-198702
sub13013-71031
main13013-71031i198702-198707
sub13013-71032
main13013-71060i198707-198708
main13013-72020i198308-198509
O/S 0.50
sub13013-71060
main13013-88300i198308-198507
main13013-88301i198507-198708
main13014-41015i198308-198708
main13014-42040i198602-198708
sub13014-42060
main13014-43050i198308-198602
O/S 0.75
sub13014-42040
main13014-70010i198308-198708
main13014-71030i198509-198702
O/S 0.75
sub13014-71031
main13014-71031i198702-198707
sub13014-71032
main13014-71060i198707-198708
main13014-72020i198308-198509
O/S 0.75
sub13014-71060
main13015-41015i198308-198708
main13015-42040i198602-198708
sub13015-42060
main13015-43050i198308-198602
O/S 1.00
sub13015-42040
main13015-70010i198308-198708
main13015-71030i198509-198702
sub13015-71031
main13015-71031i198702-198707
sub13015-71032
main13015-71060i198707-198708
main13015-72020i198308-198509
O/S 1.00
sub13015-71060
13041BEARING, CONNECTING ROD
main13041-42010-01i198407-198708
MARK"1",MARK 1
main13041-42010-02i198407-198708
MARK"2",MARK 2
main13041-42010-03i198407-198708
MARK"3",MARK 3
main13041-42010-04i198407-198708
MARK"4",MARK 4
main13041-42010-05i198407-198708
MARK"5",MARK 5
main13041-54012-01i198308-198310
MARK"1",MARK 1
sub13041-54024
sub13041-54013
main13041-54012-02i198308-198310
MARK"2",MARK 2
sub13041-54024
sub13041-54013
main13041-54012-03i198308-198310
MARK"3",MARK 3
sub13041-54024
sub13041-54013
main13041-54013-01i198310-198708
MARK"1",MARK 1
sub13041-54024
main13041-54013-02i198310-198708
MARK"2",MARK 2
sub13041-54024
main13041-54013-03i198310-198708
MARK"3",MARK 3
sub13041-54024
main13041-54040-01i198308-198708
MARK"1",MARK 1
sub13041-54041
main13041-54040-02i198308-198708
MARK"2",MARK 2
sub13041-54041
main13041-54040-03i198308-198708
MARK"3",MARK 3
sub13041-54041
main13041-70010-03i198308-198708
MARK"3",MARK 3
main13041-70010-04i198308-198708
MARK"4",MARK 4
main13041-70010-05i198308-198708
MARK"5",MARK 5
main13041-71021-06i198308-198708
MARK"6",MARK 6
sub13041-71011
main13041-71021-07i198308-198708
MARK"7",MARK 7
sub13041-71011
main13041-71021-08i198308-198708
MARK"8",MARK 8
sub13041-71011
main13041-88300-03i198308-198708
MARK"3",MARK 3
main13041-88300-04i198308-198708
MARK"4",MARK 4
main13041-88300-05i198308-198708
MARK"5",MARK 5
13101PISTON SUB-ASSY, W/PIN
main13101-41060i198308-198407
STD
sub13101-41061
main13101-41061i198407-198509
STD
main13101-41070i198308-198407
STD
sub13101-41071
main13101-41071i198407-198708
main13101-43041i198408-198708
main13101-43050i198308-198407
STD
sub13101-43051
main13101-43051i198407-198408
main13101-54030i198308-198708
main13101-54060i198308-198708
main13101-54080i198408-198708
main13101-70010i198308-198708
main13101-70040i198509-198708
main13101-73010i198308-198708
main13101-88300i198308-198507
main13101-88301i198507-198708
sub13101-70033
main13103-41060i198308-198407
O/S 0.50
sub13103-41061
main13103-41061i198407-198509
O/S 0.50
main13103-41070i198308-198407
O/S 0.50
sub13103-41071
main13103-41071i198407-198708
main13103-43051i198408-198708
main13103-43060i198308-198407
O/S 0.50
sub13103-43061
main13103-43061i198407-198408
main13103-54030i198308-198708
main13103-54060i198308-198708
main13103-54080i198408-198708
main13103-70010i198308-198708
main13103-70040i198509-198708
main13103-73010i198308-198708
main13103-88300i198308-198507
main13103-88301i198507-198708
sub13103-70033
main13104-41060i198308-198407
O/S 0.75
sub13104-41061
main13104-41061i198407-198509
O/S 0.75
main13104-41070i198308-198407
O/S 0.75
sub13104-41071
main13104-41071i198407-198708
main13104-43051i198408-198708
main13104-43060i198308-198407
O/S 0.75
sub13104-43061
main13104-43061i198407-198408
main13104-70010i198308-198708
main13104-73010i198308-198708
main13105-41060i198308-198407
O/S 1.00
sub13105-41061
main13105-41061i198407-198509
O/S 1.00
main13105-41070i198308-198407
O/S 1.00
sub13105-41071
main13105-41071i198407-198708
main13105-43051i198408-198708
main13105-43060i198308-198407
O/S 1.00
sub13105-43061
main13105-43061i198407-198408
main13105-70010i198308-198708
main13105-73010i198308-198708
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90521-20002i198308-198507
main90521-21088i198308-198708
main90521-23002i198509-198708
main90521-25001i198407-198708
main90521-25052i198308-198407
main90521-29003i198308-198708
main90521-31001i198308-198708
13201ROD SUB-ASSY, CONNECTING
main13201-41011i198308-198708
main13201-42010i198408-198503
sub13201-49035
main13201-43010i198401-198407
sub13201-49025
main13201-43011i198407-198408
sub13201-49025
main13201-45010i198308-198401
sub13201-49015
main13201-49035i198503-198708
main13201-59016i198308-198708
sub13201-59017
main13201-59025i198308-198408
sub13201-59026
main13201-59026i198408-198708
sub13201-59027
main13201-79025i198308-198410
sub13201-79026
main13201-79026i198410-198708
main13201-79045i198308-198708
sub13201-79046
main13201-79055i198308-198410
sub13201-79056
main13201-79056i198410-198708
main13201-79075i198509-198708
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73066i198308-198708
main90999-73070i198308-198708
main90999-73083i198308-198708
main90999-73094i198308-198708
sub90999-73118
main90999-73107i198509-198708
13202BEARING SET, CONNECTING ROD
main13202-45011i198308-198708
main13203-45011i198308-198708
main13204-42010i198407-198708
main13204-45011i198308-198708
main13204-54012i198308-198310
U/S 0.25
sub13204-54013
main13204-54013i198310-198708
sub13204-54024
main13204-54040i198308-198708
sub13204-54041
main13204-70010i198308-198708
main13204-71021i198603-198708
sub13204-71011
main13205-42010i198407-198708
main13205-45011i198308-198708
main13205-54012i198308-198310
U/S 0.50
sub13205-54013
main13205-54013i198310-198708
sub13205-54024
main13205-54040i198308-198708
sub13205-54041
13265BOLT, CONNECTING ROD
main13265-29015i198308-198507
sub13265-70010
sub90170-09001
main13265-29025i198308-198708
main13265-49025i198308-198708
main13265-54011i198308-198708
sub13265-54020
main13265-70010i198507-198708
sub13265-70020
main90910-02044i198308-198708
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i198308-198708
main90170-09195i198308-198708
main90170-10005i198308-198708
sub90179-10123
13405FLYWHEEL SUB-ASSY
main13405-49116i198308-198708
N=115
main13405-59066i198308-198708
main13405-79015i198308-198708
main13405-79025i198308-198708
main13405-79065i198308-198708
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i198308-198708
13405BBOLT, FLYWHEEL SETTING
main90105-10042i198308-198708
*10-1.25PX26-18
main90105-12011i198308-198501
main90105-12109i198501-198708
13411CRANKSHAFT
main13401-54020i198308-198408
sub13401-54021
main13401-54021i198408-198708
main13401-54030i198308-198708
main13411-41015i198308-198408
sub13411-41016
sub90280-05003
main13411-41016i198408-198708
main13411-42030i198408-198708
main13411-45012i198308-198408
sub13411-45013
sub90280-05003
main13411-45013i198408-198408
main13411-70011i198308-198408
sub13411-70012
main13411-70012i198408-198512
sub13411-70902
main13411-70020i198308-198408
sub13411-70021
main13411-70021i198408-198512
sub13411-70903
main13411-70901i198509-198608
sub13411-70905
main13411-70902i198512-198608
sub13411-70906
main13411-70903i198512-198608
sub13411-70904
main13411-70904i198608-198708
sub13411-70905
main13411-70905i198608-198708
main13411-70906i198608-198708
sub13411-70904
main13411-73010i198308-198708
sub13411-73900
13453GEAR, FLYWHEEL RING
main13453-20010i198308-198708
N=115
main13453-54010i198308-198708
13471PULLEY, CRANKSHAFT
main13407-41030i198308-198708
main13407-42020i198408-198708
main13407-43020i198308-198408
main13407-70060i198308-198706
sub13407-70050
main13407-70070i198509-198708
main13407-88301i198308-198509
main13407-88302i198509-198708
main13408-54020i198308-198708
main13408-54050i198509-198708
main13408-73010i198308-198708
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05001i198308-198408
main90280-05003i198408-198708
main90280-05010i198308-198609
main95161-10519i198308-198708
main95161-20622i198308-198708
sub95161-30622
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-14013i198308-198708
sub90105-14069
main90105-16011i198308-198708
main90105-18001i198308-198708
*18-1.5PX40-20
main90105-18002i198408-198602
sub90105-18003
main90105-18003i198602-198708
main90119-14005i198308-198708
*14-1.5PX40-31
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-33010i198308-198708
main13521-41011i198308-198708
N=20
13521PPULLEY, CRANKSHAFT TIMING
main13521-42010i198408-198708
main13521-43020i198308-198408
main13521-54020i198308-198708
main13521-70010i198308-198405
sub13521-70011
main13521-70011i198405-198407
main13521-70030i198407-198708
main13521-88300i198308-198505
main13521-88340i198505-198708

22 parts on this diagram · 6 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
