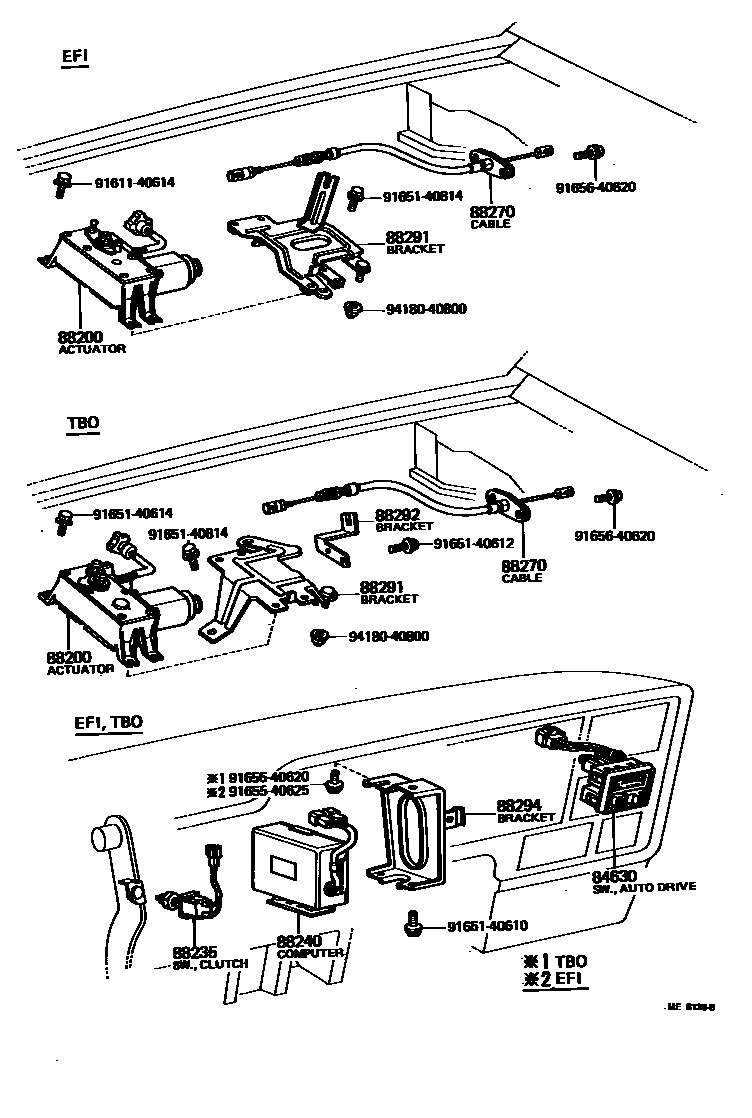

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1

84630SWITCH ASSY, CRUISE CONTROL MAIN

main88230-30020iMS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)197909-198108

88200CRUISE CONTROL ASSY

main88200-30050iMS110,112..(ROY,SAL,SDX,SPE)..EFI197909-198005

main88200-30051iMS110,112..(ROY,SAL,SDX,SPE)..EFI198005-198108

main88200-30060iMS110..TBO198010-198108

main88200-30070iGS110,MS112..ROY,SAL198108-198307

sub88200-30071

main88200-30080iMS110..SAL198108-198307

main88200-30090iLS111..SAL198208-198307

sub88200-30091

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-14010iMS110,112..MTM..(ROY,SAL,SDX,SPE)..EFI197909-198108

sub88280-35010

88240COMPUTER ASSY, CRUISE CONTROL

main88240-30040iMS110,112..(ROY,SAL,SDX,SPE)..EFI197909-198005

main88240-30041iMS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)198005-198108

main88240-30050iGS110,MS112..ROY,SAL198108-198210

main88240-30060iMS110..SAL198108-198307

main88240-30070iLS111..SAL198208-198307

88270CABLE ASSY, CRUISE CONTROL(AUTO DRIVE)

main83731-30010iMS110,112..(ROY,SAL,SDX,SPE)..EFI197909-198108

main83731-30020iMS110..TBO198010-198108

main83731-30030iGS110,MS112..ROY,SAL198108-198307

main83731-30040iMS110..SAL198108-198307

main83731-30050iLS111..SAL198208-198307

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-30030iMS110,112..(ROY,SAL,SDX,SPE)..EFI197909-198108

main88291-30040iMS110..TBO198010-198102

main88291-30041iMS110..SAL198102-198307

88292BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2

main88292-30030iMS110..TBO198010-198108

main88292-30040iMS110..SAL198108-198307

88294BRACKET, CRUISE CONTROL(AUTO DRIVE) MAIN SWITCH

main88294-30021iMS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)197909-198108

9161140614

main91611-40614

9165140610

main91651-40610

9165140612

main91651-40612

9165140614

main91651-40614

9165140814

main91651-40814

9165540620

main91655-40620

9165540625

main91655-40625

9165640620

main91656-40620

9418040800

main94180-40800

17 parts on this diagram · 3 diagrams in section
