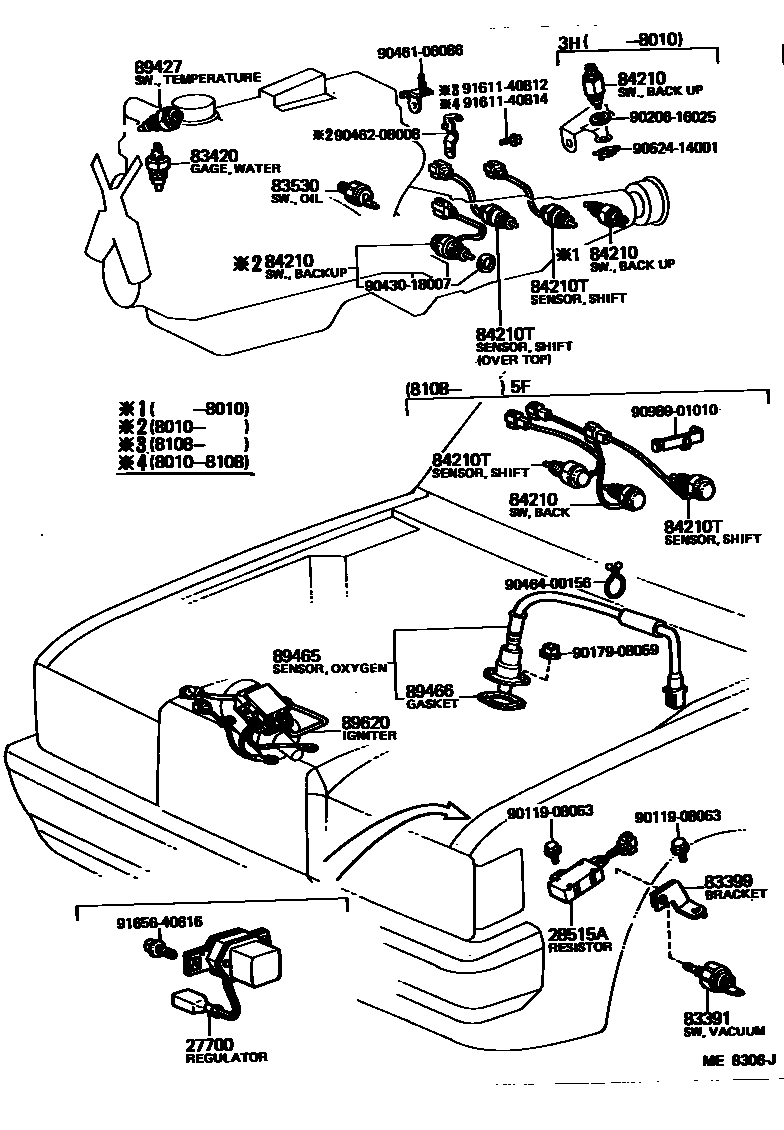

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

27700REGULATOR ASSY, GENERATOR

main27700-44010iL,MJ,5RU..LS11#,MS117,RS110197909-198108

STADARD REGULATOR

main27700-44010iL,MJ..LS110,117,MS117198108-198307

STANDARD REGULATOR

main27700-54020iL..LS11#197909-198108

IC REGULATOR

28515ARESISTOR, SOLENOID

main28515-20010i5RU,MU..MS110,RS110..LPG197909-198008

sub28515-41030

main28515-41030i5RU,MU..MS110,RS110..LPG198008-198307

83391SWITCH, VACUUM

main83391-20021iMS110,RS110..LPG197909-198307

main83391-22020iMS110..CBR197909-198307

N0.1

main83391-22030iMS110..CBR197909-198307

N0.2

83399BRACKET, VACUUM SWITCH

main83399-22011iMS110,RS110..LPG197909-198307

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iGS11#,LS11#,MS11#,RS110197909-198307

DENSO

sub83420-20020

main83420-20020iGS11#,LS11#,MS11#,RS110197909-198307

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iRS110198004-198307

sub83530-14030

main83530-30030iRS110197909-198004

sub83530-14010

main83530-30042iGS11#197909-198307

sub83530-30050

main83530-30050iMS11#198206-198307

sub83530-30051

main83530-36011iLS11#197909-198307

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-14010iLS11#,MS11#,RS110..4F,4H,5F197909-198108

main84210-30050iRS110..3H197909-198010

main84210-60010iLS11#,MS110,117,RS110..3H,4H198010-198307

84210TSENSOR ASSY, SHIFT POINT

main84220-20050iRS110..3H197909-198010

main84220-20060iRS110..4H197909-198010

main84220-20070iRS110..4H197909-198010

OVER TOP

main84220-20080iRS110..5F198010-198307

main84220-20090iRS110..4H198010-198307

OVER TOP

89427SWITCH, TEMPERATURE DETECT

main83430-30010iGS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)197909-198307

NO.1(MARK=30)

main83430-30020iGS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)197909-198307

NO.2(MARK=50)

main89427-14020iMS110..LPG197912-198307

main89428-30020iMS110..CBR197909-198307

89465SENSOR, OXYGEN

main89465-29026iGS11#198108-198307

main89465-29055iRS110198010-198307

main89465-29065iMS110,112..CBR,EFI198010-198307

main89465-29085iMS110..LPG198010-198307

main89465-29115iMS110..TBO198212-198306

sub89465-29116

main89465-29116iMS110..TBO198306-198307

main89465-39025iMS110..CBR197909-198010

main89465-39035iRS110197909-198010

main89465-39045iMS110,112..EFI197909-198010

main89465-39055iMS110..LPG197912-198010

main89465-39065iMS110..TBO198010-198212

main89465-39075iMS112..TWC198108-198307

89466GASKET, OXYGEN SENSOR

main89466-30010iGS11#,MS110,112,RS110197909-198307

sub89466-20020

89620IGNITER ASSY

main89620-30080iMS110,112..CBR,EFI197909-198307

main89620-30090iMS110..LPG197912-198307

main89620-30100iRS110197909-198108

sub89620-30H90

main89620-30110iMS110..TBO198010-198307

main89620-30120iRS110198108-198307

sub89620-26H91

main89620-30130iMS112..TWC198108-198307

main89620-30140iGS110198108-198307

sub89620-30H92

main89620-30150iGS117198208-198307

sub89620-30H92

9011908063

main90119-08063

9017908059

main90179-08059

9020616025

main90206-16025

9043018007

main90430-18007

9046106086

main90461-06086

9046208008

main90462-08008

9046400156

main90464-00156

9052414001

main90524-14001

9098901010

main90989-01010

9161140812

main91611-40812

9161140814

main91611-40814

9165640616

main91656-40616

24 parts on this diagram · 13 diagrams in section
