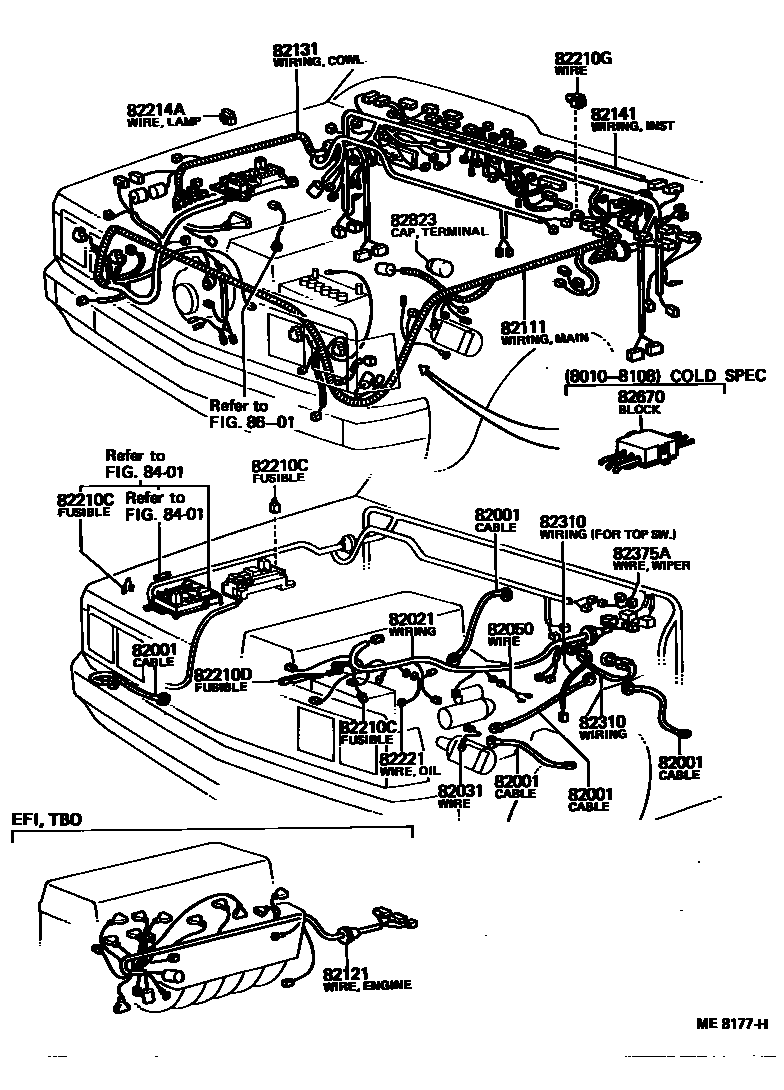

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

82001CABLE, BOND, NO.1

main90980-07033iGS11#,MS11#,RS110197909-198307

L=510

main90980-07061iLS110,MS110,RS110..STD,TAX197909-198307

L=300

main90980-07064iGS11#,MS11#,RS110197909-198307

L=170

main90980-07083iMS11#,RS110197909-198307

L=350

main90980-07109iGS11#198108-198307

main90980-07119iGS11#,MS11#,RS110197909-198307

L=320

82021WIRING ASSY, STARTER

main82021-30270iMS110..LPG197912-198307

main82021-30280iMS110..CBR197909-198307

main82021-30300iMS117197909-198208

main82021-30310iLS11#198010-198108

COLD SPEC

main82021-30320iLS11#197909-197911

main82021-30321iLS11#197911-198010

main82021-30330iLS11#198010-198108

82031WIRE SUB-ASSY, IGNITION COIL

main82031-12060iMS110,112..CBR,EFI197909-198307

main82031-12490iRS110197909-198108

82050WIRE ASSY, ENGINE

main82121-22010iLS11#198010-198108

82111WIRE, ENGINE ROOM MAIN

main82020-30630iLS117;LS110..STD,TAX197909-197911

main82020-30631iLS117;LS110..STD,TAX197911-198002

sub82241-30040

main82020-30632iLS117;LS110..STD,TAX198002-198108

main82020-30640iLS110..BTP,CTE,DLX,SDX197909-197911

main82020-30641iLS110..BTP,CTE,DLX,SDX197911-198002

sub82241-30040

main82020-30642iLS110..BTP,CTE,DLX,SDX198002-198108

main82020-30650iRS110..STD,TAX197909-198002

sub82241-30060

main82020-30651iRS110..STD,TAX198002-198108

main82020-30660iRS110..BTP,DLX197909-198002

sub82241-30060

main82020-30661iRS110..BTP,DLX198002-198108

main82020-30670iMS110..LPG198002-198108

main82020-30680iMS110..STD197909-198002

sub82241-30060

main82020-30681iMS110..STD198002-198108

main82020-30690iMS110..(BTP,CTE,DLX,SDX)..CBR197909-198002

sub82241-30060

main82020-30691iMS110..(BTP,CTE,DLX,SDX)..CBR198002-198108

main82020-30700iMS110,112..EFI197909-198002

sub82241-30080

main82020-30701iMS110,112..EFI198002-198108

main82020-30710iMS117..DLX,STD197909-198002

sub82241-30060

main82020-30711iMS117..DLX,STD198002-198108

main82020-30840iMS110,112..ROY,SAL197909-198002

W/ESC

sub82241-30080

main82020-30841iMS110,112..ROY,SAL198002-198108

W/ESC

main82111-30010iGS110198108-198307

main82111-30020iLS117;LS110..STD,TAX198108-198307

main82111-30030iLS117;LS110..STD,TAX198108-198307

COLD SPEC

main82111-30040iLS110..4FC,4HC,5F198108-198307

main82111-30050iLS110..4FC,4HC,5F198108-198307

COLD SPEC

main82111-30100iMS110..LPG198108-198307

main82111-30110iMS110..TBO198108-198307

main82111-30120iMS110..CBR198108-198307

main82111-30140iMS112..EFI198108-198307

main82111-30160iMS112..TWC198108-198307

main82111-30250iMS117198108-198208

main82111-30260iRS110..BTP,DLX198108-198307

main82111-30270iRS110..STD,TAX198108-198307

main82111-30320iLS111..TD198208-198307

main82111-30330iLS111..TDE198208-198307

main82111-30340iGS117198208-198307

main82210-3A020iLS110..BTP,CTE,DLX,SDX197909-197911

COLD SPEC

main82210-3A021iLS110..BTP,CTE,DLX,SDX197911-198002

COLD SPEC

sub82241-30040

main82210-3A022iLS110..BTP,CTE,DLX,SDX198002-198010

COLD SPEC

main82210-3A023iLS110..BTP,CTE,DLX,SDX198010-198108

COLD SPEC

main82210-3A030iLS117;LS110..STD,TAX197909-197911

COLD SPEC

main82210-3A031iLS117;LS110..STD,TAX197911-198002

COLD SPEC

sub82241-30040

main82210-3A032iLS117;LS110..STD,TAX198002-198010

COLD SPEC

main82210-3A033iLS117;LS110..STD,TAX198010-198108

COLD SPEC

main82210-3A080iMS117..SDX197909-198002

sub82241-30060

main82210-3A081iMS117..SDX198002-198108

main82210-3A140iMS110..TBO198010-198108

82121WIRE, ENGINE

main82121-30010iGS11#198108-198307

main82121-30020iMS112..TWC198108-198307

main82121-30030iMS110..TBO198108-198307

main82121-30040iMS112..EFI198108-198307

main82291-30130iMS110,112..EFI197909-198108

main82291-30140iMS110..TBO198010-198108

82131WIRE, COWL

main82131-30010iGS110..SDX,SPE198108-198307

main82131-30020iGS110..SAL198108-198307

main82131-30030iGS110..CTE,DLX198108-198307

main82131-30040iGS110..SAL198108-198307

*EXT

main82131-30050iGS110..SAL198108-198307

*EXT,W/*AD OR *CC;W/*AD OR *CC

main82131-30060iLS110..TAX198108-198307

main82131-30070iLS110..CTE,DLX198108-198307

main82131-30080iLS110..SAL,SDX,SPE198108-198307

main82131-30120iMS110..LPG198108-198307

main82131-30130iMS110..(BTP,DLX)..CBR198108-198307

main82131-30140iMS110..SED..TBO198108-198307

main82131-30150iMS110..SED..TBO198108-198307

W/*AD

main82131-30160iMS110..SPE198108-198307

main82131-30170iMS112..EFI198108-198307

main82131-30180iMS112..EFI198108-198307

W/*AD OR ESC

main82131-30190iMS112..TWC198108-198307

main82131-30200iMS112..4HC..TWC198108-198307

W/*MPAAC

main82131-30210iMS112..4HC..TWC198108-198307

W/ESC & *MPAAC

main82131-30340iMS117..DLX,STD198108-198208

main82131-30350iRS110..BTP,DLX198108-198307

main82131-30360iRS110..TAX198108-198307

main82131-30410iMS110..STD198108-198307

main82131-30420iRS110..STD198108-198307

main82131-30430iMS112..TWC198108-198307

W/ESC

main82131-30440iMS112..4HC..EFI198108-198307

W/*MPAAC

main82131-30450iMS112..4HC..EFI198108-198307

W/*AD & *MPAAC,W/ESC & *MPAAC

main82131-30470iMS110..HT..SAL198108-198307

main82131-30480iMS117..SDX198108-198208

main82131-30490iLS117;LS110..STD198108-198307

main82131-30510iLS111..(SDX,SPE)..TD198208-198307

main82131-30520iLS111..SAL..TD198208-198307

main82131-30530iLS111..SAL..TD198208-198307

W/*AD

main82131-30540iLS111..(SDX,SPE)..TDE198208-198307

main82131-30550iLS111..SAL..TDE198208-198307

main82131-30560iLS111..SAL..TDE198208-198307

W/*AD

main82131-30570iGS117..DLX,STD198208-198307

main82131-30580iGS117..SDX198208-198307

main82131-30600iGS110..SPE198206-198307

W/DIGITAL SPEEDOMETER

main82220-3A140iLS110..TAX197909-197910

main82220-3A141iLS110..TAX197910-197911

main82220-3A142iLS110..TAX197911-198002

sub82241-30050

main82220-3A143iLS110..TAX198002-198010

main82220-3A145iLS110..TAX198010-198108

main82220-3A150iLS11#..BTP,CTE,DLX,STD197909-197911

main82220-3A151iLS11#..BTP,CTE,DLX,STD197911-198002

sub82241-30050

main82220-3A152iLS11#..BTP,CTE,DLX,STD198002-198010

main82220-3A154iLS11#..BTP,CTE,DLX,STD198010-198108

main82220-3A160iLS110..SDX197909-197911

main82220-3A161iLS110..SDX197911-198002

sub82241-30050

main82220-3A162iLS110..SDX198002-198010

main82220-3A164iLS110..SDX198010-198108

main82220-3A170iRS110..TAX197909-197910

main82220-3A171iRS110..TAX197910-198002

sub82241-30070

main82220-3A172iRS110..TAX198002-198010

main82220-3A173iRS110..TAX198010-198108

main82220-3A180iRS110..BTP,DLX,STD197909-198002

sub82241-30070

main82220-3A181iRS110..BTP,DLX,STD198002-198010

main82220-3A182iRS110..BTP,DLX,STD198010-198108

main82220-3A190iMS110..LPG198002-198010

main82220-3A191iMS110..LPG198010-198108

main82220-3A200iMS110..(BTP,CTE,DLX,STD)..CBR197909-198002

sub82241-30070

main82220-3A201iMS110..(BTP,CTE,DLX,STD)..CBR198002-198010

main82220-3A202iMS110..(BTP,CTE,DLX,STD)..CBR198010-198108

main82220-3A210iMS110..SDX..CBR197909-198002

sub82241-30070

main82220-3A211iMS110..SDX..CBR198002-198010

main82220-3A212iMS110..SDX..CBR198010-198108

main82220-3A220iMS110..(SDX,SPE)..EFI197909-198002

sub82241-30090

main82220-3A221iMS110..(SDX,SPE)..EFI198002-198010

main82220-3A222iMS110..(SDX,SPE)..EFI198010-198108

main82220-3A230iMS110,112..SAL197909-198002

sub82241-30090

main82220-3A231iMS110,112..SAL198002-198010

main82220-3A232iMS110,112..SAL..EFI198010-198108

main82220-3A240iMS112..ROY197909-198002

sub82241-30090

main82220-3A241iMS112..ROY198002-198010

main82220-3A242iMS112..ROY198010-198108

main82220-3A250iMS117..DLX,STD197909-198002

sub82241-30070

main82220-3A251iMS117..DLX,STD198002-198108

main82220-3A380iMS110,112..(ROY,SAL,SDX,SPE)..EFI197909-198002

W/ESC OR *AD

sub82241-30090

main82220-3A381iMS110,112..(ROY,SAL,SDX,SPE)..EFI198002-198010

W/ESC OR *AD

main82220-3A382iMS110,112..(ROY,SAL,SDX,SPE)..EFI198010-198108

W/ESC OR *AD

main82220-3A430iMS117..SDX197909-198002

sub82241-30070

main82220-3A431iMS117..SDX198002-198108

main82220-3A460iMS110..CTE..EFI197909-198002

sub82241-30090

main82220-3A461iMS110..CTE..EFI198002-198010

main82220-3A462iMS110..CTE..EFI198010-198108

main82220-3A540iMS110..SPE..TBO198010-198108

main82220-3A600iMS110..SAL..TBO198010-198108

main82220-3A610iMS110..TBO198010-198108

W/*AD

main82220-3A620iMS112..4HC..ROY198010-198108

W/*MPAAC

main82220-3A630iMS112..4HC..ROY198010-198108

W/*MPAAC & ESC,W/*MPAAC & *AD

main82220-3A660iLS110..TAX198010-198108

COLD SPEC

main82220-3A670iLS11#..BTP,CTE,DLX198010-198108

COLD SPEC

main82220-3A680iLS110..SDX198010-198108

COLD SPEC

main82220-3A720iMS110..3FC..DLX198010-198010

25TH ANNIVERSARY

82141WIRE, INSTRUMENT PANEL

main82141-30020iGS110,MS110..ATM..(EFI,TBO)198108-198307

W/*AD

main82141-30030iLS110,RS110..TAX198108-198307

main82141-30040iGS11#,LS11#,MS110,117,RS110..(3FC,3HC,4F,4H,5F)..(BTP,CTE,DLX,SAL,SDX,SPE,STD)198108-198307

main82141-30080iMS112..TWC198108-198307

main82141-30100iLS11#,MS112..ATM..(DSL,EFI,TDE)198108-198307

main82201-30290iLS11#,MS112..ATM197909-198108

main82201-30300iMS110..ATM..(EFI,TBO)197909-198108

main82201-30310iLS110,RS110..TAX197909-198108

main82201-30320iLS11#,RS110..MTM..(BTP,CTE,DLX,SDX,STD)197909-198108

82210CFUSIBLE LINK

main90982-08109iLS11#,MS11#,RS110197909-198108

L=110,1.25,BLACK

main90982-08110iGS11#,LS11#,MS11#,RS110197909-198307

L=110,0.5,GREEN

main90982-08112iGS11#,LS11#,MS11#,RS110197909-198307

L=110,0.3,PINK

main90982-08123iLS11#197909-198108

L=110,0.5,GREEN

main90982-08127iGS11#,LS11#,MS11#,RS110197909-198307

L=110,0.85,RED

main90982-08128iLS111198208-198307

L=110,1.0,YELLOW

main90982-08129iGS11#,MS110,112..EFI,TWC197909-198307

L=110,0.3,PINK

main90982-08130iGS11#,LS11#,MS11#,RS110197909-198307

L=110,0.5,GREEN

82210DFUSIBLE LINK

main90982-08160iLS11#198010-198108

COLD SPEC,1.25B,1.25B & 2L

main90982-08181iLS11#198108-198307

1.25B & 2L

main90982-08182iGS11#,LS11#,MS11#,RS110198010-198307

0.5G,0.5G & 2L

82210GWIRE, SHORT

main82213-30020iRS110;MS110..DLX..LPG;LS110,MS110..BTP,STD197909-198307

W/*IT

82214AWIRE, LAMP

main82214-30070iGS110,LS110,111..CTE,DLX,SDX,SPE198108-198307

82221WIRE, OIL PRESSURE SWITCH

main82221-30030iMS110..TBO198010-198307

82310WIRING ASSY, TO BACK UP LAMP SWITCH

main82125-30010iRS110..5F198108-198307

main82310-30170iRS110..3H197909-198010

main82310-30230iMS110,117..4H197909-198010

main82310-30250iRS110..4H197909-198010

main82310-30260iRS110..3H197909-198010

TOP SWICH

main82310-30270iLS11#,MS11#..4F,5F198010-198108

main82310-30290iGS11#,LS110,117,MS110,117..4H198010-198307

main82310-30300iGS11#,LS11#,MS110,117..4F,5F198108-198307

main82310-30310iRS110..3H,4H198010-198307

82375AWIRE, WIPER MOTOR

main82375-24010iGS110,LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE198108-198204

COLD SPEC

main82375-30030iLS110,MS110,112..ROY,SAL,SDX,SPE197909-198108

COLD SPEC

82670BLOCK ASSY, JUNCTION, NO.1

main82670-30050iLS11#198010-198108

COLD SPEC

main82671-30040iLS11#198108-198307

82823CAP, TERMINAL, NO.1

main82823-14040iMS112..TWC198108-198307

2POLE

main82823-30010iGS110,MS110,112,RS110197909-198307

8401

8601

19 parts on this diagram · 10 diagrams in section
