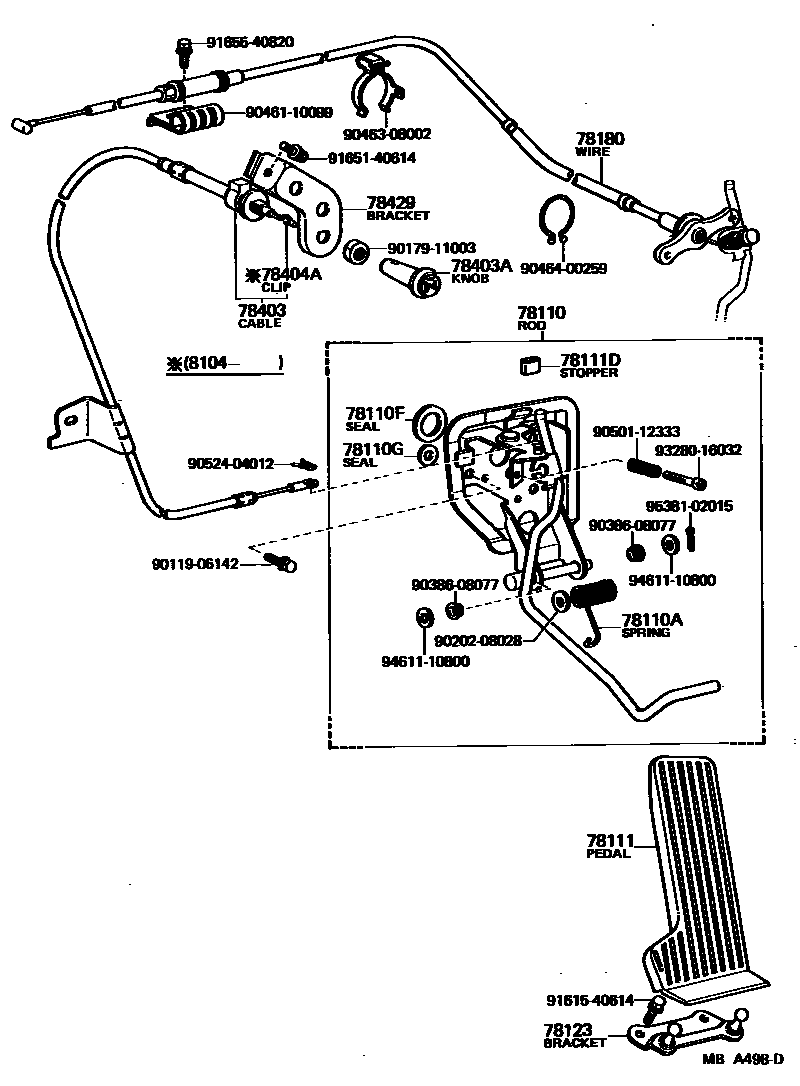

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-30210iGS11#,MS11#..MTM..(CBR,EFI)197909-198307

main78120-30220iMS110,112..MTM..(ROY,SAL,SDX,SPE)..EFI197909-198108

W/AUTO DRIVE

main78120-30221iGS110..(HT,SED)..MTM..(SAL,SDX,SPE)198108-198111

W/AUTO DRIVE

main78120-30222iGS110..(HT,SED)..MTM..(SAL,SDX,SPE)198111-198307

W/AUTO DRIVE

main78120-30230iMS110,RS110..MTM..LPG197909-198307

main78120-30260iGS110,LS11#,MS110,112..ATM197909-198307

COLD SPEC

main78120-30270iMS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)197909-198108

W/AUTO DRIVE,COLD SPEC

main78120-30271iGS110,MS110,112..ROY,SAL198108-198111

W/AUTO DRIVE,COLD SPEC

main78120-30272iGS110,LS111,MS110,112..ROY,SAL198111-198307

W/AUTO DRIVE,COLD SPEC

main78120-30280iGS11#,LS11#,MS11#,RS110..MTM197909-198307

COLD SPEC

main78120-30300iLS111;GS110,MS110,112..ATM..(CBR,EFI,TBO,TWC)197909-198307

main78120-30310iMS110,112..ATM..(ROY,SAL,SDX,SPE)..(EFI,TBO)197909-198108

W/AUTO DRIVE

main78120-30311iGS110,MS110,112..ATM..(ROY,SAL)198108-198111

W/AUTO DRIVE

main78120-30312iGS110,LS111,MS110,112..ATM..(ROY,SAL)198111-198307

W/AUTO DRIVE

main78120-30320iLS110,117..ATM197909-198307

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18016iGS110,LS110,117,MS110,112..ATM197909-198307

main90508-23026iMS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)197909-198108

W/AUTO DRIVE,COLD SPEC

main90508-29010iMS110,112..MTM..(ROY,SAL,SDX,SPE)..EFI197909-198108

W/AUTO DRIVE

main90508-29011iGS11#,LS11#,MS11#,RS110..MTM197909-198307

COLD SPEC

78110FSEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)

main78129-30050iGS11#,LS11#,MS11#,RS110197909-198307

78110GSEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)

main78139-30050×3iGS11#,LS11#,MS11#,RS110197909-198307

78111PEDAL, ACCELERATOR

main78111-12100iGS11#,LS11#,MS11#,RS110197909-198307

COLD SPEC

main78111-30080iGS11#,LS11#,MS11#,RS110197909-198307

sub78111-30081

78111DSTOPPER (FOR ACCELERATOR PEDAL)

main78119-30050iGS11#,LS11#,MS11#,RS110197909-198307

78123BRACKET, ACCELERATOR PEDAL SUPPORT

main78114-30040iGS11#,LS11#,MS11#,RS110197909-198307

78180WIRE ASSY, ACCELERATOR

main78180-30030iMS110,117..CBR197909-198307

main78180-30040iMS110,112..EFI197909-198108

main78180-30041iMS112..EFI198108-198307

main78180-30130iLS11#197909-198010

main78180-30131iLS110,117198010-198307

main78180-30180iMS110..SED..(3HC,4H)..(DLX,STD)..CBR197909-198108

TAXI SPEC

main78180-30200iRS110197909-198307

main78180-30270iGS11#198108-198307

main78180-30330iMS110..TBO198010-198108

main78180-30331iMS110..TBO198108-198307

main78180-30350iLS111198208-198307

sub78180-30360

main78180-30380iMS112..TWC198108-198307

78403CABLE SUB-ASSY, THROTTLE CONTROL

main78401-30020iLS110,117197909-198307

main78401-30050iMS110,RS110..LPG197909-198104

main78401-30051iMS110,RS110..LPG198104-198307

78403AKNOB, THROTTLE CONTROL

main78411-30030iMS110,RS110..LPG197909-198104

main78411-30031iMS110,RS110..LPG198104-198307

main78411-30040iLS110,117197909-198307

78404ACLIP, THROTTLE FLEXIBLE WIRE

main78312-12010iMS110,RS110..LPG198104-198307

78429BRACKET, THROTTLE ROD

main78371-30030iLS110,117,MS110,RS110..(BTP,DLX,SDX,STD)..(DSL,LPG)197909-198307

main78371-30050iLS110,RS110..TAX197909-198307

9011906142

main90119-06142

9017911003

main90179-11003

9020208028

main90202-08028

9038608077

main90386-08077

9046110099

main90461-10099

9046308002

main90463-08002

9046400259

main90464-00259

9050112333

main90501-12333

9052404012

main90524-04012

9161540614

main91615-40614

9165140614

main91651-40614

9165540820

main91655-40820

9328016032

main93280-16032

9461110800

main94611-10800

9538102015

main95381-02015

27 parts on this diagram · 12 diagrams in section
