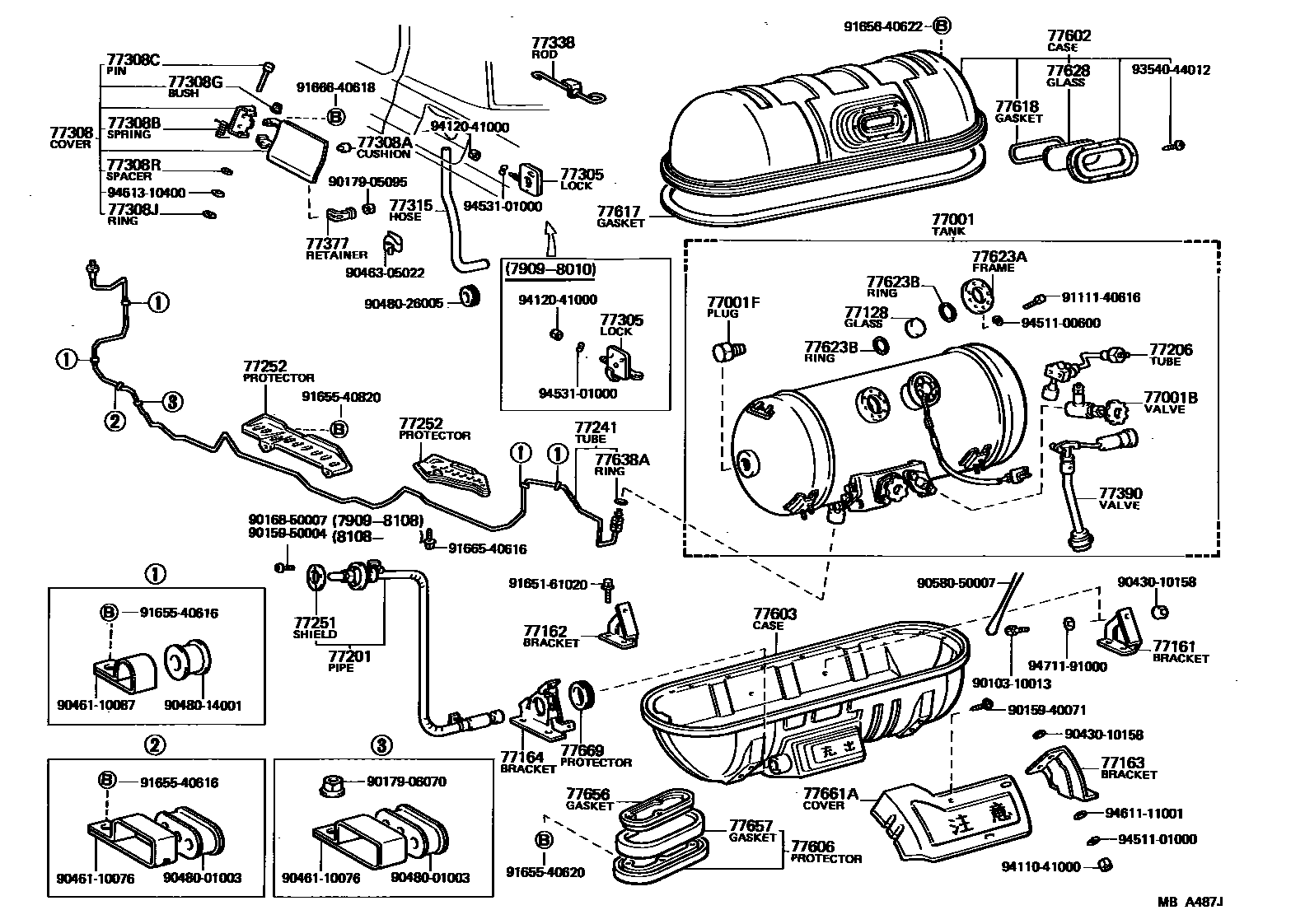

FUEL TANK & TUBE
77001TANK ASSY, FUEL (LPG)
77001BVALVE (FOR LPG TANK)
77001FPLUG, LPG TANK
77128GLASS, FUEL TANK WINDOW
77161BRACKET, FUEL TANK, FRONT RH
77162BRACKET, FUEL TANK, FRONT LH
77163BRACKET, FUEL TANK, REAR RH
77164BRACKET, FUEL TANK, REAR LH
77201PIPE SUB-ASSY, FUEL TANK INLET
77241TUBE, FUEL MAIN, NO.1
77251SHIELD, FUEL TANK, INLET, NO.1
77252PROTECTOR, FUEL TUBE
RR
FR
RR
77305LOCK SUB-ASSY, FUEL TANK CAP
77308COVER SUB-ASSY, FUEL INLET BOX
77308ACUSHION(FOR FUEL INLET BOX COVER)
77308BSPRING, TORSION(FOR FUEL INLET BOX COVER)
77308CPIN, STRAIGHT(FOR FUEL INLET BOX COVER)
77308GBUSH(FOR FUEL INLET BOX COVER)
77308JRING(FOR FUEL INLET BOX COVER)
77308RSPACER(FOR FUEL INLET BOX COVER)
77315HOSE, FUEL FILLER OPENING
77338ROD, FUEL TANK CAP LOCK
77377RETAINER, FUEL FILLER OPENING LID LOCK
77390VALVE ASSY, FUEL TANK INLET
sub77390-30040
77602CASE SUB-ASSY, FUEL TANK, UPPER
77603CASE SUB-ASSY, FUEL TANK, LOWER
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
main77606-30090iGS110,LS110,111,MS110,112..SED..(BTP,DLX,SAL,SDX,STD,TAX)..(CBR,DSL,EFI,TBO,TD,TDE)197909-198307
77617GASKET, FUEL TANK CASE COVER
77618GASKET, CASE WINDOW
77623AFRAME, TANK COVER WINDOW GLASS
77623BRING, O (FOR TANK COVER WINDOW GLASS FRAME)
INNER,ID=34.4
OUTER,ID=39.4
77628GLASS, CASE COVER WINDOW
77656GASKET, BREATHER COVER, UPPER
77657GASKET, BREATHER COVER, LOWER
77661ACOVER, FUEL TANK FILLER HOSE
77669PROTECTOR, FUEL TANK REAR MOUNTING BRACKET EDGE
9010310013
main90103-10013
9015940071
main90159-40071
9015950004
main90159-50004
9016850007
main90168-50007
9017905095
main90179-05095
9017906070
main90179-06070
9043010158
main90430-10158
9046110076
main90461-10076
9046110087
main90461-10087
9046305022
main90463-05022
9048001003
main90480-01003
9048014001
main90480-14001
9048026005
main90480-26005
9058050007
main90580-50007
9111140616
main91111-40616
9165161020
main91651-61020
9165540616
main91655-40616
9165540620
main91655-40620
9165540820
main91655-40820
9165640622
main91656-40622
9166540616
main91665-40616
9166640618
main91666-40618
9354044012
main93540-44012
9411041000
main94110-41000
9412041000
main94120-41000
9451100600
main94511-00600
9451101000
main94511-01000
9453101000
main94531-01000
9461111001
main94611-11001
9461310400
main94613-10400
9471191000
main94711-91000
69 parts on this diagram · 16 diagrams in section
