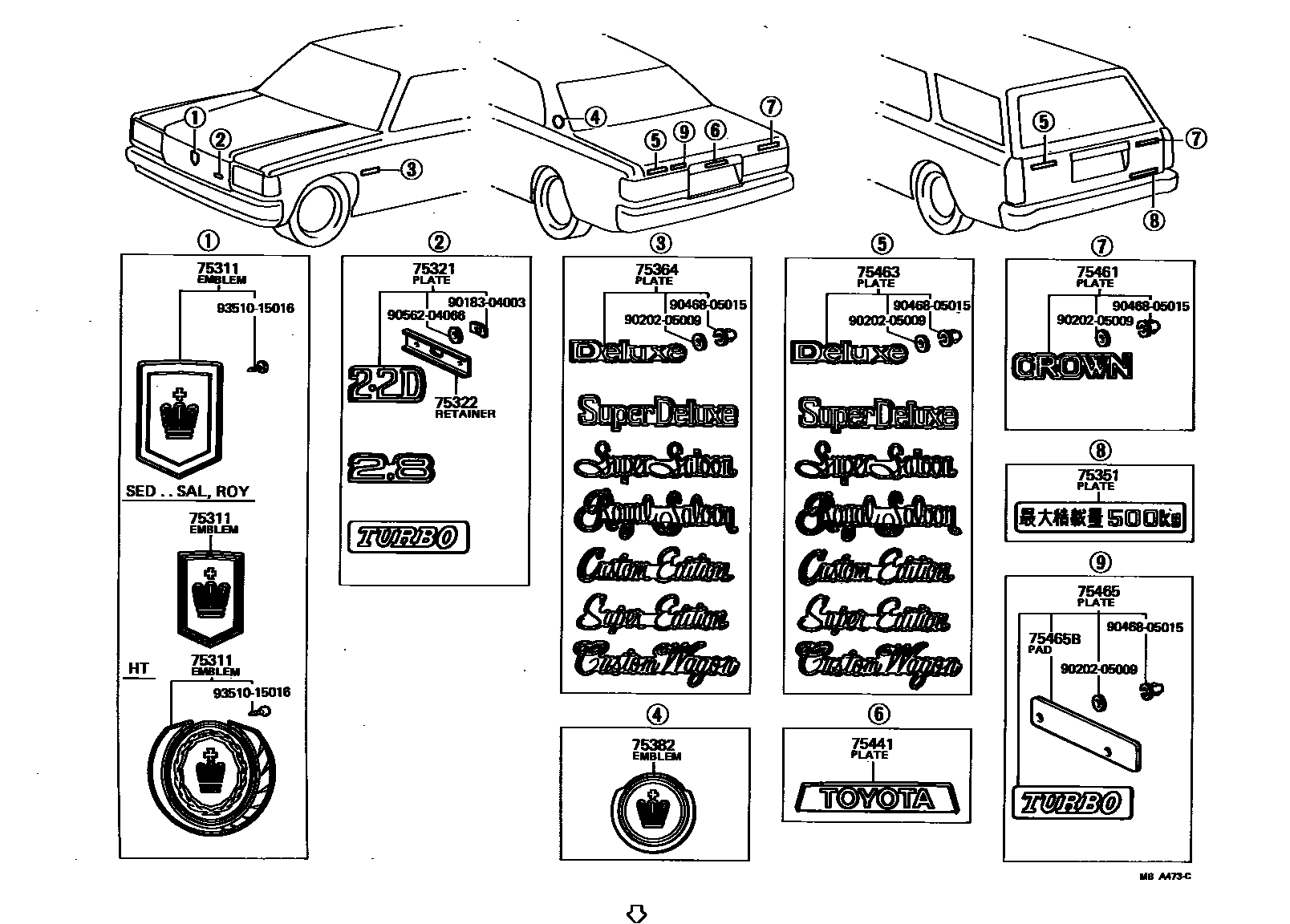

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-30110iMS110,112..SED..(ROY,SAL)197909-198108

main75311-39055iLS11#,MS110,117,RS110..(SED,V,WG)..(BTP,DLX,SDX)197909-198108

main75311-39065iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE197909-198307

sub75311-39085

main75311-39075iLS11#,MS110,117,RS110..STD,TAX197909-198108

sub75311-39055

main75311-39095iGS117,LS110,117,MS110,117,RS110..STD,TAX198108-198307

sub75311-39085

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-39065iLS11#197909-198108

2.2D

main75321-39075iMS112197909-198108

2.8

main75321-39105iMS110..TBO198010-198108

TURBO

main75321-39115iLS110,117198108-198307

2.2D

main75321-39125iMS112..SED198108-198307

2.8

main75321-39145iMS110..TBO198108-198307

TURBO

main75321-39155iLS111198208-198307

TURBO-D

main75322-39015iMS112..TWC198108-198307

DOHC

75322RETAINER, RADIATOR GRILLE NAME PLATE

main75324-30030iMS112;LS11#,MS110..DSL,TBO197909-198108

main75324-30060iLS110,117,MS110,112..DSL,EFI,TBO,TWC198108-198307

main75324-30071iLS111198208-198307

75351PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)

main75471-21010iGS117,LS117,MS117197909-198307

75364PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)

main75361-30120iGS110,LS110,MS110,RS110..SED..DLX197909-198307

DELUXE

main75361-30130iGS11#,LS110,111,MS110,117..(SED,V)..SDX197909-198307

SUPER DELUXE

main75361-30140iGS110,LS110,111,MS110,112..SAL197909-198307

SUPER SALOON

main75361-30150iMS112..ROY197909-198212

ROYAL SALOON

sub75361-30151

main75361-30151iMS112198212-198307

ROYAL SALOON

main75361-30160iGS110,LS110,MS110..CTE197909-198307

CUSTOM EDITION

main75361-30170iGS110,LS110,111,MS110..SPE197909-198212

SUPER EDITION

sub75361-30171

main75361-30171iGS110,LS111,MS110..SPE198212-198307

SUPER EDITION

main75441-91701iGS110,LS110,MS110..WG..DLX197909-198307

CUSTOM WAGON

main75441-91702iGS110..WG..SDX198108-198307

SUPER CUSTOM WAGON

75382EMBLEM, QUARTER PANEL OR SIDE PANEL

main75371-30060iMS112..4DH..ROY197909-198307

main75371-30070iGS110,LS111,MS110..SAL198108-198307

EXTRA MARK

sub75351-30010

75441PLATE, REAR NAME, NO.1

main75431-30140iLS110,MS110,RS110..STD,TAX197909-198108

TOYOTA

main75431-30150iLS110,MS110,RS110..STD,TAX198108-198307

TOYOTA

sub75431-30160

main75431-30160iGS110,LS110,111,MS110,RS110..SED..(BTP,DLX,SDX)198108-198307

TOYOTA

main75431-30170iGS110,LS110,111,MS110,112..CTE,ROY,SAL,SPE198108-198307

TOYOTA

75461PLATE, REAR NAME, NO.2 (MODEL MARK)

main75442-30090iGS11#,LS11#,MS11#,RS110197909-198307

CROWN

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75361-30120iGS11#,LS110,117,MS110,117,RS110..(HT,SED,V)..(BTP,DLX)197909-198307

DELUXE

main75361-30130iGS11#,LS110,111,MS110,117..(SED,V)..SDX197909-198307

SUPER DELUXE

main75361-30140iGS110,LS110,111,MS110,112..SAL197909-198307

SUPER SALOON

main75361-30150iMS112..ROY197909-198212

ROYAL SALOON

sub75361-30151

main75361-30151iMS112198212-198307

ROYAL SALOON

main75361-30160iGS110,LS110,MS110..CTE197909-198307

CUSTOM EDITION

main75361-30170iGS110,LS110,111,MS110..SPE197909-198212

SUPER EDITION

sub75361-30171

main75361-30171iGS110,LS111,MS110..SPE198212-198307

SUPER EDITION

main75441-91701iGS110,LS110,MS110..WG..DLX197909-198307

CUSTOM WAGON

main75441-91702iGS110..WG..SDX198108-198307

SUPER CUSTOM WAGON

75465PLATE, REAR NAME, NO.5 (MECHANISM)

main75441-30110iMS110..TBO198010-198307

TURBO

main75441-30120iLS111198208-198307

TURBO-D

75465BPAD, REAR NAME, NO.5 PLATE

main75446-30010iMS110..TBO198010-198307

9018304003

main90183-04003

9020205009

main90202-05009

9046805015

main90468-05015

9056204066

main90562-04066

9351015016

main93510-15016

16 parts on this diagram · 2 diagrams in section
