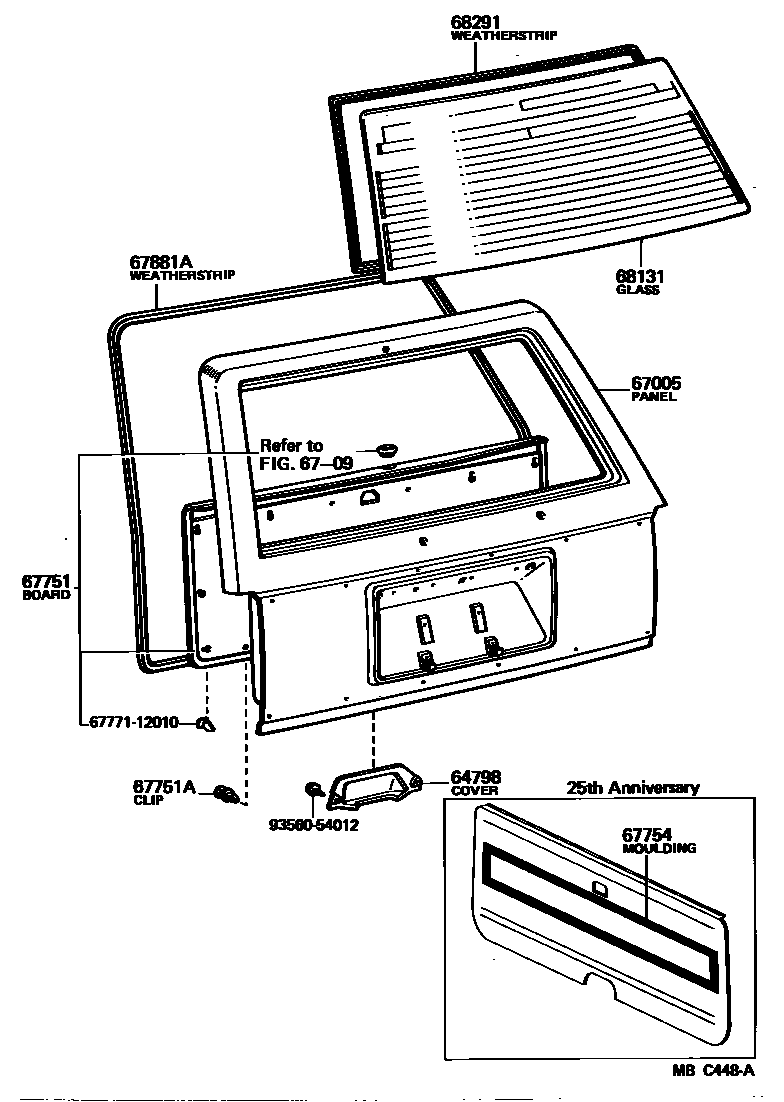

BACK DOOR PANEL & GLASS

64798COVER, BACK DOOR LOCK

main64798-91701-04iGS11#,LS110,117,MS117..V,WG198108-198307

BLUE,BLUE,TRIM8#

main64798-91701-05iLS11#,MS110,117..V,WG197909-198108

GREIGE,BEIGE,TRIM4#

main64798-91701-15iGS11#,LS110,117,MS117..V,WG198108-198307

BEIGE,BEIGE,TRIM4#

67005PANEL SUB-ASSY, BACK DOOR

main67005-91718iLS117,MS117..DLX,STD197909-198111

main67005-91719iGS110,LS110,MS110..WG197909-198111

main67005-91725iLS117,MS117..DLX197909-198111

W/RR WIPER

main67005-91731iGS117,LS117,MS117..DLX,STD198111-198307

sub67005-91772

main67005-91732iGS117,MS117..SDX198111-198307

sub67005-91773

main67005-91737iGS117,LS117,MS117..DLX198111-198307

W/RR WIPER

sub67005-91775

6709

67751BOARD, BACK DOOR TRIM

main64780-91705-04iLS117,MS117..DLX197909-198108

BLUE,BLUE,TRIM8#

main64780-91705-05iLS117,MS117..DLX197909-198108

GREIGE,BEIGE,TRIM4#

main64780-91705-14iLS117,MS117..DLX198108-198111

BLUE,BLUE,TRIM8#

main64780-91705-15iLS117,MS117..DLX198108-198111

BEIGE,BEIGE,TRIM4#

main64780-91706iLS117,MS117..STD197909-198108

GREIGE

main64780-91706-15iLS117,MS117..STD198108-198111

BEIGE,BEIGE,TRIM4#

main64780-91707-04iLS110,MS110..WG197909-198108

BLUE,BLUE,TRIM8#

main64780-91707-05iLS110,MS110..WG197909-198108

GREIGE,BEIGE,TRIM4#

main64780-91707-14iGS110,LS110..WG..DLX198108-198111

BLUE,BLUE,TRIM8#

main64780-91707-15iGS110,LS110..WG..DLX198108-198111

BEIGE,BEIGE,TRIM4#

main64780-91708-04iMS117..SDX197909-198108

BLUE,BLUE,TRIM8#

main64780-91708-05iMS117..SDX197909-198108

GREIGE,BEIGE,TRIM4#

main64780-91708-14iMS117..SDX198108-198111

BLUE,BLUE,TRIM8#

main64780-91708-15iMS117..SDX198108-198111

BEIGE,BEIGE,TRIM4#

main64780-91709iMS110..3FC..DLX198011-198011

25TH ANNIVERSARY

main64780-91710-14iGS110..WG..SDX198108-198111

BLUE,BLUE,TRIM8#

main64780-91710-15iGS110..WG..SDX198108-198111

BEIGE,BEIGE,TRIM4#

main64780-91711-14iGS117,LS117,MS117..DLX198111-198307

BLUE,BLUE,TRIM8#

main64780-91711-15iGS117,LS117,MS117..DLX198111-198307

BEIGE,BEIGE,TRIM4#

main64780-91712-15iGS117,LS117,MS117..STD198111-198307

BEIGE,BEIGE,TRIM4#

main64780-91713-14iGS110,LS110..WG..DLX198111-198307

BLUE,BLUE,TRIM8#

main64780-91713-15iGS110,LS110..WG..DLX198111-198307

BEIGE,BEIGE,TRIM4#

main64780-91714-14iGS117,MS117..SDX198111-198307

BLUE,BLUE,TRIM8#

main64780-91714-15iGS117,MS117..SDX198111-198307

BEIGE,BEIGE,TRIM4#

main64780-91715-14iGS110..WG..SDX198111-198307

BLUE,BLUE,TRIM8#

main64780-91715-15iGS110..WG..SDX198111-198307

BEIGE,BEIGE,TRIM4#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08114-05×4iLS11#,MS117..V,WG197909-197910

GREIGE,BEIGE,TRIM4#

main90467-08114-24×4iLS11#,MS117..V,WG197909-197910

BLUE,BLUE,TRIM8#

main90467-10005-04×6iGS11#,LS110,117,MS117..V,WG198111-198307

BLUE,BLUE,TRIM8#

sub90467-06017

main90467-10005-05×4iLS11#,MS110,117..V,WG197910-198108

GREIGE,BEIGE,TRIM4#

sub90467-06017

main90467-10005-25×4iGS110,LS11#,MS117..V,WG198108-198111

BEIGE,BEIGE,TRIM4#

sub90467-06017

67754MOULDING, BACK DOOR TRIM

main64083-91701iMS110..3FC..DLX198011-198011

25TH ANNIVERSARY

67881AWEATHERSTRIP, BACK DOOR

main67881-91702iGS11#,LS110,117,MS110,117..V,WG197909-198307

68131GLASS, BACK DOOR

main68105-91704iGS117,LS117,MS117..DLX197909-198307

*TT,T=4.0,W/ANTENA

main68105-91707iGS11#,LS110,117,MS110,117..(V,WG)..(DLX,SDX)197909-198307

*EHTT,T=4.0,W/ANTENA

main68105-91709iGS117,LS117,MS117..STD197909-198307

*EHT,T=4.0

sub68105-91708

main68131-91709iGS117,LS117,MS117..STD197909-198307

*TEM,T=4.0

sub68131-91708

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-91702iGS117,LS117,MS117..DLX,STD197909-198307

W/O MOULDING

main68291-91703iGS11#,LS110,117,MS110,117..(V,WG)..(DLX,SDX)197909-198307

W/MOULDING

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

9356054012

main93560-54012

11 parts on this diagram · 1 diagram in section
