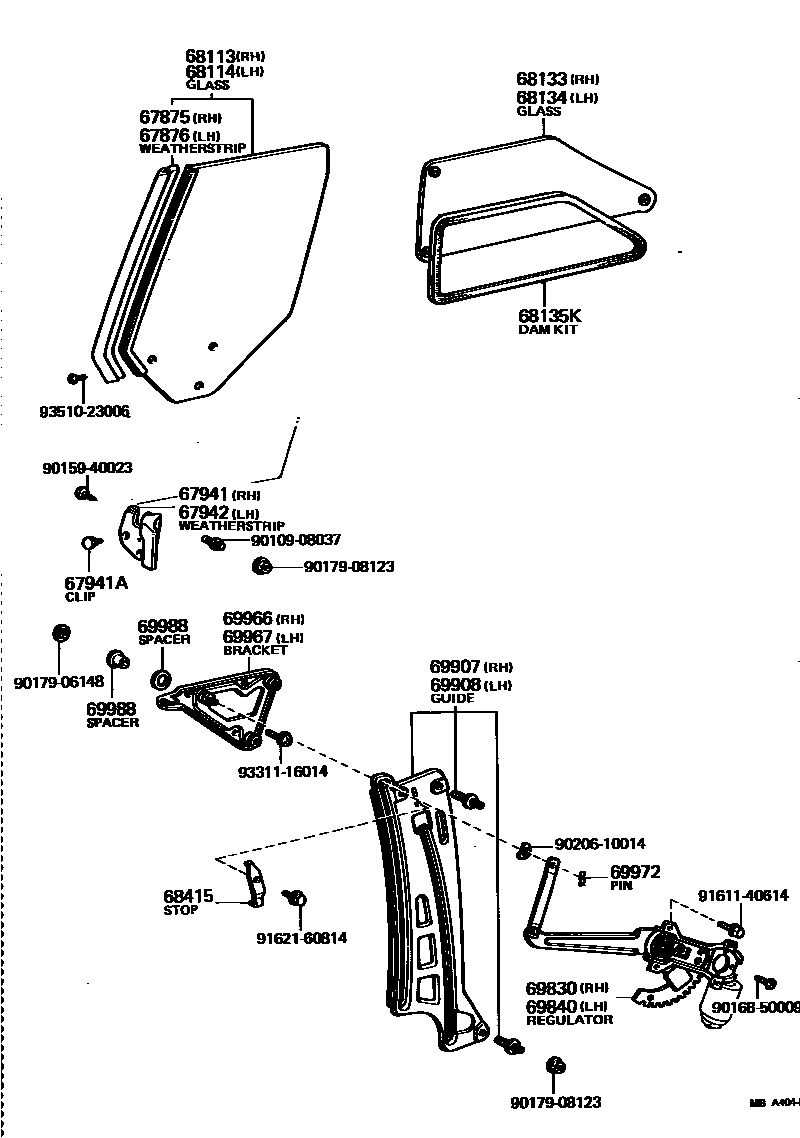

QUARTER WINDOW
67875WEATHERSTRIP, REAR QUARTER WINDOW GLASS, RH
67876WEATHERSTRIP, REAR QUARTER WINDOW GLASS, LH
67941WEATHERSTRIP, QUARTER LOCK PILLAR, RH
67941ACLIP(FOR QUARTER LOCK PILLAR WEATHERSTRIP)
67942WEATHERSTRIP, QUARTER LOCK PILLAR, LH
68113GLASS, QUARTER WINDOW, RH
*TT,T=4.0
*TT,T=4.0,BRONZE
68114GLASS, QUARTER WINDOW, LH
*TT,T=4.0
*TT,T=4.0,BRONZE
68133GLASS, QUARTER WINDOW, NO.2 RH
*TT,T=4.0
*TT,T=4.0
*TT,T=4.0,BRONZE
*TT,T=4.0,BRONZE
68134GLASS, QUARTER WINDOW, NO.2 LH
*TT,T=4.0
*TT,T=4.0
*TT,T=4.0,BRONZE
*TT,T=4.0,BRONZE
68135KDAM KIT, QUARTER WINDOW NO.2 GLASS
sub04681-30020
68415STOPPER, REAR QUARTER GLASS, UPPER
69830REGULATOR ASSY, REAR QUARTER WINDOW, RH
69840REGULATOR ASSY, REAR QUARTER WINDOW, LH
69907GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, RH
69908GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, LH
69966BRACKET, REAR QUARTER WINDOW GLASS, RH
69967BRACKET, REAR QUARTER WINDOW GLASS, LH
69972PIN, QUARTER GLASS CHANNEL SETTING
69988SPACER, QUARTER WINDOW GLASS
INNER
OUTER
9010908037
main90109-08037
9015940023
main90159-40023
9016850009
main90168-50009
9017906148
main90179-06148
9017908123
main90179-08123
9020610014
main90206-10014
9161140614
main91611-40614
9162160814
main91621-60814
9331116014
main93311-16014
9351023006
main93510-23006
29 parts on this diagram · 2 diagrams in section
