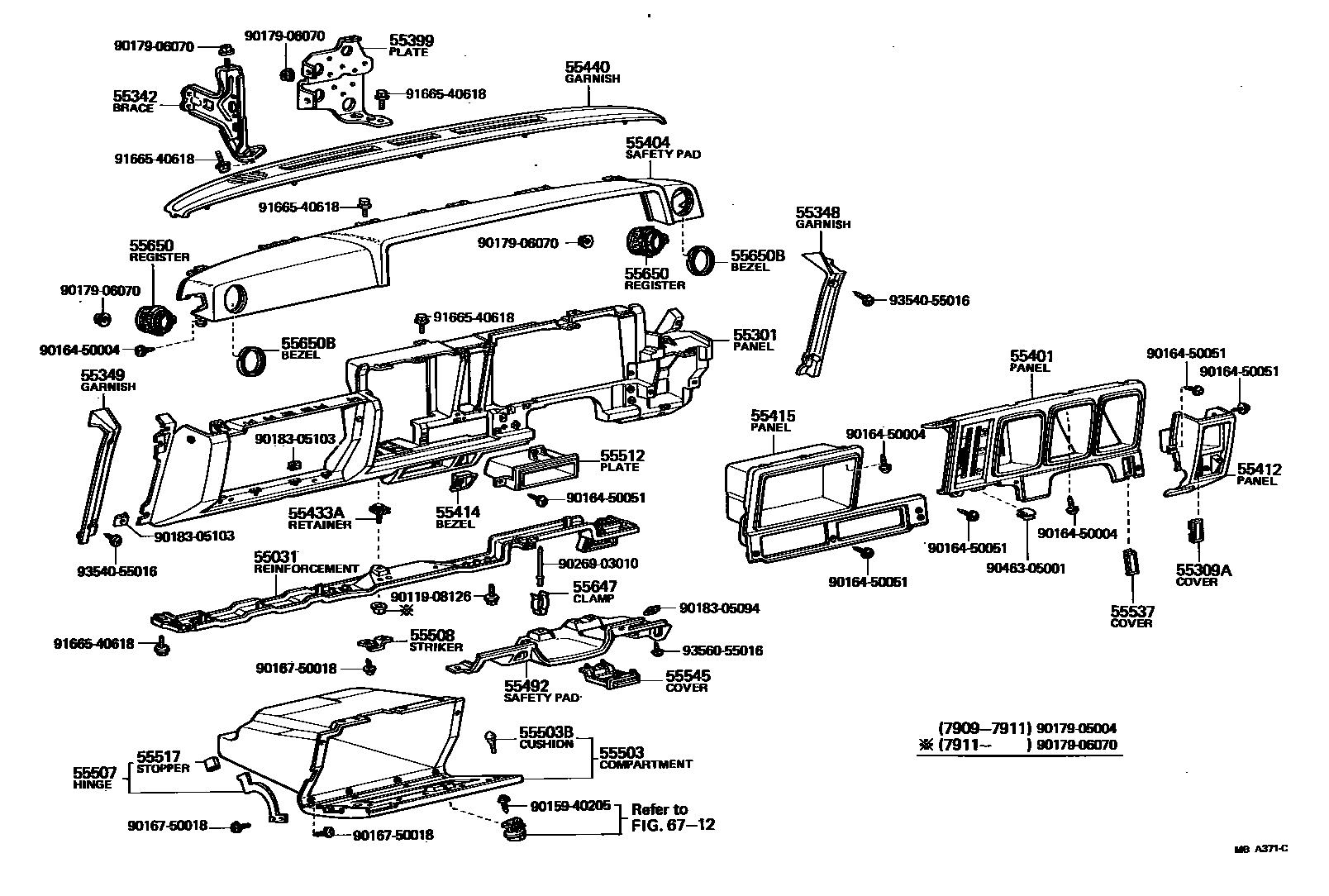

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1

55031REINFORCEMENT, INSTRUMENT PANEL, NO.1

main55305-30100iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198107

main55305-30101iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198107-198307

main55305-30120iLS110,RS110..TAX197909-198307

55301PANEL SUB-ASSY, INSTRUMENT

main55301-30220-02iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198108

DARK WINE,RED/MAROON,TRIM3#

main55301-30220-03iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198108-198307

GRAY,GRAY,TRIM1#

main55301-30220-04iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198108-198307

BLUE,BLUE,TRIM8#

main55301-30220-05iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198108

GREIGE,BEIGE,TRIM4#

main55301-30220-15iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198108-198307

BEIGE,BEIGE,TRIM4#

main55311-30210iLS110,RS110..TAX197909-198307

sub55311-30220

55309ACOVER, BASE SWITCH HOLE, NO.1

main55384-20011-01iLS110..4H..STD197909-198108

BLACK

55342BRACE, INSTRUMENT PANEL, NO.2

main55306-30070iGS11#,LS11#,MS11#,RS110197909-198307

55348GARNISH, INSTRUMENT PANEL SIDE, RH

main55435-30090-01iGS11#,LS11#,MS11#,RS110..SED,V,WG198108-198307

BLACK,BLACK,TRIM1#

main55435-30090-02iLS11#,MS11#,RS110..SED,V,WG197909-198108

DARK WINE,RED/MAROON,TRIM3#

main55435-30090-03iGS11#,LS11#,MS11#,RS110..SED,V,WG198108-198307

GRAY,GRAY,TRIM1#

main55435-30090-04iGS11#,LS11#,MS11#,RS110..SED,V,WG198108-198307

BLUE,BLUE,TRIM8#

main55435-30090-05iLS11#,MS11#,RS110..SED,V,WG197909-198108

GREIGE,BEIGE,TRIM4#

main55435-30090-15iGS11#,LS11#,MS11#,RS110..SED,V,WG198108-198307

BEIGE,BEIGE,TRIM4#

main55435-30100-02iLS110,MS110,112..HT197909-198108

DARK WINE,RED/MAROON,TRIM3#

main55435-30100-03iGS110,LS110,111,MS110,112..HT198108-198307

GRAY,GRAY,TRIM1#

main55435-30100-04iLS110,MS110,112..HT197909-198108

BLUE,BLUE,TRIM8#

main55435-30100-05iLS110,MS110,112..HT197909-198108

GREIGE,BEIGE,TRIM4#

main55435-30100-15iGS110,LS110,111,MS110,112..HT198108-198307

BEIGE,BEIGE,TRIM4#

55349GARNISH, INSTRUMENT PANEL SIDE, LH

main55436-30040-01iGS11#,LS11#,MS11#,RS110..SED,V,WG198108-198307

BLACK,BLACK,TRIM1#

main55436-30040-02iLS11#,MS11#,RS110..SED,V,WG197909-198108

DARK WINE,RED/MAROON,TRIM3#

main55436-30040-03iGS11#,LS11#,MS11#,RS110..SED,V,WG198108-198307

GRAY,GRAY,TRIM1#

main55436-30040-04iGS11#,LS11#,MS11#,RS110..SED,V,WG198108-198307

BLUE,BLUE,TRIM8#

main55436-30040-05iLS11#,MS11#,RS110..SED,V,WG197909-198108

GREIGE,BEIGE,TRIM4#

main55436-30040-15iGS11#,LS11#,MS11#,RS110..SED,V,WG198108-198307

BEIGE,BEIGE,TRIM4#

main55436-30050-02iLS110,MS110,112..HT197909-198108

DARK WINE,RED/MAROON,TRIM3#

main55436-30050-03iGS110,LS110,111,MS110,112..HT198108-198307

GRAY,GRAY,TRIM1#

main55436-30050-04iLS110,MS110,112..HT197909-198108

BLUE,BLUE,TRIM8#

main55436-30050-05iLS110,MS110,112..HT197909-198108

GREIGE,BEIGE,TRIM4#

main55436-30050-15iGS110,LS110,111,MS110,112..HT198108-198307

BEIGE,BEIGE,TRIM4#

55399PLATE, TAXIMETER MOUNTING

main55399-30040iLS110,RS110..TAX197909-198307

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-30370iLS117,MS117..DLX,STD197909-198108

sub55404-30480

main55404-30390iLS110,MS110,112..ROY,SAL,SDX,SPE197909-198108

sub55404-30490

main55404-30430iMS117..SDX197909-198108

sub55404-30500

main55404-30440iLS110,RS110..TAX197909-198307

main55404-30460iGS110,LS110,MS110,RS110..BTP,CTE,DLX,STD198108-198307

main55404-30470iGS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE198108-198307

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-30260iLS110,RS110..TAX197909-198307

55412PANEL, INSTRUMENT CLUSTER FINISH, END

main55414-30060iLS110,RS110..TAX197909-198307

55414BEZEL, CIGAR LIGHTER HOLE

main55477-30010iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198307

main55477-30020iLS110,RS110..TAX197909-198307

sub55477-30030

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-30180iLS110,RS110..TAX197909-198307

55433ARETAINER, SAFETY PAD SET PLATE

main55437-30050iLS110,RS110..TAX197909-197911

main55437-30060iLS110,RS110..TAX197911-198307

55440GARNISH, INSTRUMENT PANEL, CENTER

main55044-30080-01iGS117,LS110,117,MS110,117,RS110..STD,TAX198108-198307

BLACK,BLACK,TRIM1#

main55044-30080-03iGS117,LS110,117,MS110,117,RS110..STD,TAX198108-198307

GRAY,GRAY,TRIM1#

main55044-30080-05iLS11#,MS110,117,RS110..STD,TAX197909-198108

GREIGE,BEIGE,TRIM4#

main55044-30080-15iGS117,LS110,117,MS110,117,RS110..STD,TAX198108-198307

BEIGE,BEIGE,TRIM4#

main55044-30090-02iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE197909-198108

DARK WINE,RED/MAROON,TRIM3#

main55044-30090-03iGS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE198108-198307

GRAY,GRAY,TRIM1#

main55044-30090-04iGS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE198108-198307

BLUE,BLUE,TRIM8#

main55044-30090-05iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE197909-198108

GREIGE,BEIGE,TRIM4#

main55044-30090-15iGS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE198108-198307

BEIGE,BEIGE,TRIM4#

main55044-30110-03iGS110,LS111,MS110..SAL198108-198307

GRAY,GRAY,TRIM1#

main55044-30110-04iGS110,LS111,MS110..SAL198108-198307

BLUE,BLUE,TRIM8#

main55044-30110-15iGS110,LS111,MS110..SAL198108-198307

*EXT,BEIGE,BEIGE,TRIM4#

55492GARNISH OR SAFETY PAD, LOWER, RH

main55432-30070-02iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198108

DARK WINE,RED/MAROON,TRIM3#

main55432-30070-03iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198108-198307

GRAY,GRAY,TRIM1#

main55432-30070-04iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198108-198307

BLUE,BLUE,TRIM8#

main55432-30070-05iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198108

GREIGE,BEIGE,TRIM4#

main55432-30070-15iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198108-198307

BEIGE,BEIGE,TRIM4#

main55432-30100iLS110,RS110..TAX197909-198307

BLACK

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-30010iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198307

main55550-30180iLS110,RS110..TAX197909-198307

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03015×2iLS110,RS110..TAX197909-198307

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55556-30040iGS11#,LS11#,MS11#,RS110197909-198307

55508STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55561-12010iLS110,RS110..TAX197909-198307

55512PLATE, RADIO TUNER FINISH

main55522-30030iLS11#,MS110,117,RS110..STD197909-198108

main55522-30040iLS110,RS110..TAX197909-198307

main55522-30050iGS117,LS110,117,MS110,117,RS110..STD198108-198307

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iGS11#,LS11#,MS11#,RS110197909-198307

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55537-16010-01iLS110,RS110..TAX197909-198307

BLACK

main55537-30050iLS110,MS110,RS110..STD198108-198307

55545COVER, FUSE BOX OPENING

main55540-30040-01iLS11#,MS11#,RS110197909-198108

BLACK,BLACK,TRIM4#

main55540-30040-02iLS11#,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

main55540-30040-04iLS11#,MS11#,RS110197909-198108

BLUE,BLUE,TRIM8#

main55540-30040-05iLS11#,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

main55540-30060-01iGS11#,LS11#,MS11#,RS110198108-198307

BLACK,BLACK,TRIM1#

main55540-30060-03iGS11#,LS11#,MS11#,RS110198108-198307

GRAY,GRAY,TRIM1#

main55540-30060-04iGS11#,LS11#,MS11#,RS110198108-198307

BLUE,BLUE,TRIM8#

main55540-30060-05iGS11#,LS11#,MS11#,RS110198108-198307

BEIGE,BEIGE,TRIM4#

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-30010iGS11#,LS11#,MS11#,RS110197909-198307

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-30040iLS117,MS117..DLX,STD197909-198108

main55650-30050iMS117..SDX197909-198108

main55650-30060×2iLS110,RS110..TAX197909-198307

main55650-30070-01iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198108-198307

BLACK-M,BLACK,TRIM1#

main55650-30070-04iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198108-198307

BLUE,BLUE,TRIM8#

main55650-30070-05iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198108-198307

BEIGE,BEIGE,TRIM4#

55650BBEZEL, INSTRUMENT PANEL REGISTER

main55661-30080×2iLS110,RS110..TAX197909-198307

6712

9011908126

main90119-08126

9015940205

main90159-40205

9016450004

main90164-50004

9016450051

main90164-50051

9016750018

main90167-50018

9017905004

main90179-05004

9017906070

main90179-06070

9018305094

main90183-05094

9018305103

main90183-05103

9026903010

main90269-03010

9046305001

main90463-05001

9166540618

main91665-40618

9354055016

main93540-55016

9356055016

main93560-55016

41 parts on this diagram · 3 diagrams in section
