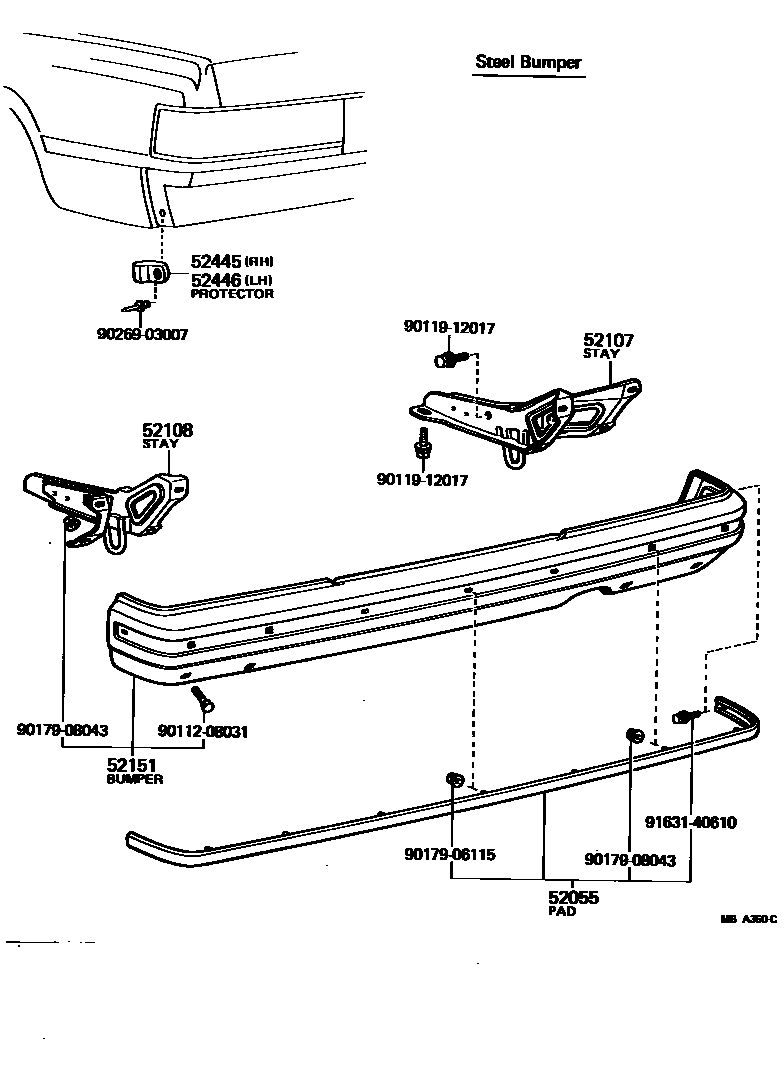

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52055PAD SUB-ASSY, REAR BUMPER

main52055-39025iLS110,MS110,RS110..(HT,SED)..(BTP,CTE,DLX,SDX,SPE)¥17,500197909-198010

NARROW

main52055-39035iMS110..SAL¥19,800197909-198010

WIDE

main52057-39015iLS110,MS110,RS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)¥8,300198010-198307

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-30020iGS110,LS110,111,MS110,RS110..SED¥5,300197909-198307

main52015-30030iGS110,LS110,111,MS110..HT¥5,300197909-198307

main52015-91701iGS117,LS117,MS117197909-198307

main52015-91702iGS110,LS110,MS110..WG¥11,000197909-198307

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-30020iGS110,LS110,111,MS110,RS110..SED¥5,300197909-198307

main52016-30030iGS110,LS110,111,MS110..HT¥5,300197909-198307

main52016-91701iGS117,LS117,MS117197909-198307

main52016-91702iGS110,LS110,MS110..WG¥11,000197909-198307

52151BUMPER ASSY, REAR

main52151-39095iLS110,MS110,RS110..STD,TAX¥74,800197909-198108

sub52151-30150

main52151-39105iLS110,MS110,RS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)¥74,700197909-198010

sub52151-39106¥74,800

main52151-39106iLS110,MS110,RS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)¥74,800198010-198307

sub52151-30161¥80,700

main52151-91911iGS11#,LS110,117,MS110,117..V,WG¥74,800197909-198307

sub52151-91701¥79,200

52445PROTECTOR, REAR BUMPER, RH

main52541-30030iGS110,LS110,111,MS110,RS110..HT,SED¥840197909-198307

52446PROTECTOR, REAR BUMPER, LH

main52541-30030iGS110,LS110,111,MS110,RS110..HT,SED¥840197909-198307

9011208031

main90112-08031¥320

9011912017

main90119-12017¥310

9017906115

main90179-06115¥120

9017908043

main90179-08043¥240

9026903007

main90269-03007¥80

9163140610

main91631-40610¥120

12 parts on this diagram · 4 diagrams in section
