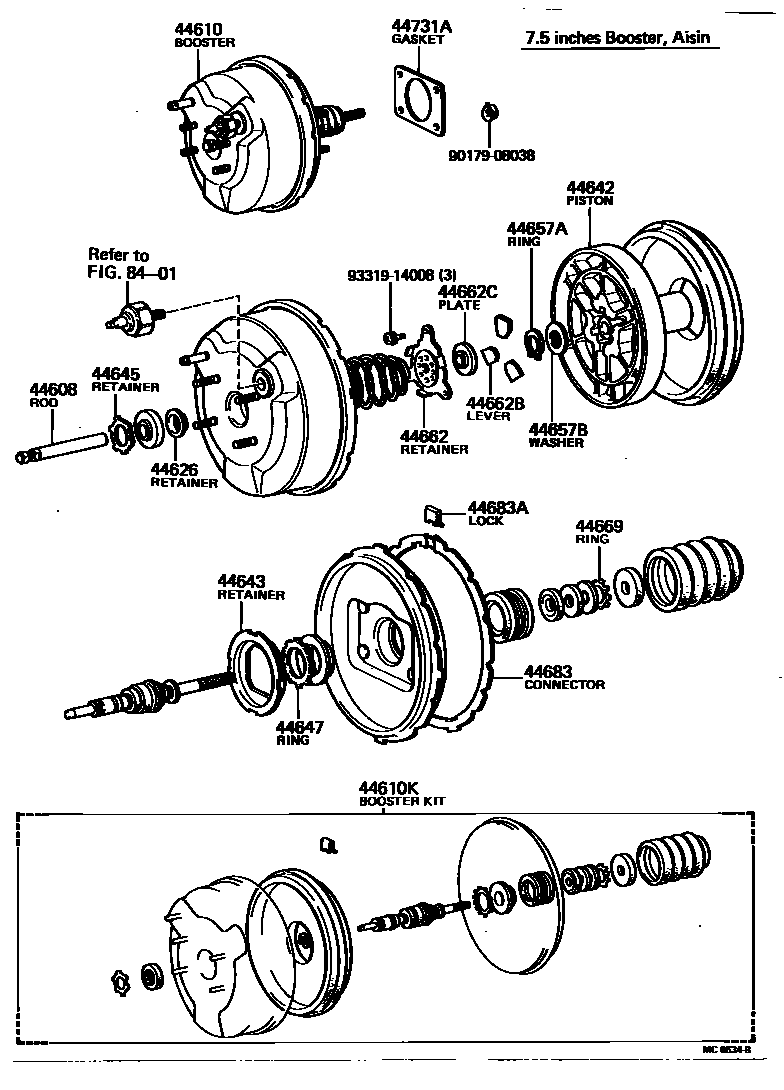

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0011 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30340iMS112;MS110..TBO197909-198307

AISIN

main44606-35100iGS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG)197909-198307

AISIN

main44608-14040iMS110,RS110..STD,TAX197909-198307

JKC

main44608-22090iMS110..SAL..EFI197909-198307

JKC

main44608-30350iMS112197909-198307

JKC

44610BOOSTER ASSY, BRAKE

main44610-30300iGS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG)197909-198307

AISIN

main44610-30310iGS110..SAL198010-198307

JKC

main44610-30320iLS117;LS110,111..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

main44610-30340iMS112197909-198307

AISIN

main44610-30360iMS110,RS110..STD,TAX197909-198307

main44610-30370iLS110..STD,TAX197909-198307

main44610-30380iMS110..TBO198010-198307

AISIN

44610KBOOSTER KIT, BRAKE

main04443-30240iGS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG)197909-198307

AISIN

main04443-30250iGS110..SAL197909-198307

JKC

main04443-30260iLS117;LS110,111..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

main04443-30280iMS112197909-198307

AISIN

main04443-30290iMS112197909-198307

JKC

main04443-30300iMS110,RS110..STD,TAX197909-198307

main04443-30310iLS110..STD,TAX197909-198307

main04443-30320iMS110..TBO198010-198307

44626RETAINER, BOOSTER ROD CUP

main44626-60010iGS11#,LS11#,MS112,117;MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

AISIN

44642PISTON, BRAKE BOOSTER

main44642-14170iLS110..STD,TAX197909-198307

main44642-30030iGS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG)197909-198307

AISIN

main44642-30310iMS110..SAL197909-198307

JKC

main44642-30340iMS112;MS110..TBO197909-198307

AISIN

main44642-30360iMS110,RS110..STD,TAX197909-198307

44643RETAINER, DIAPHRAGM

main44643-30340iMS112;MS110..TBO197909-198307

AISIN

main44643-60010iGS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG)197909-198307

AISIN

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iGS11#,LS111,117,MS117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

AISIN

main44645-22020iGS110,MS110,RS110..SAL,STD,TAX197909-198307

JKC

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iGS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG)197909-198307

AISIN

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iGS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG)197909-198307

AISIN

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iLS110..STD,TAX197909-198307

44662RETAINER, REACTION, NO.1

main44662-20460iLS117;LS110,111..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

AISIN

main44662-35100iLS110..STD,TAX197909-198307

44662BLEVER, REACTION

main44661-35100iGS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG)197909-198307

AISIN

44662CPLATE, REACTION, NO.1

main44607-20600iLS110..STD,TAX197909-198307

main44607-30300iLS117;LS110,111..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

AISIN

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iGS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG)197909-198307

AISIN

44683CONNECTOR, BOOSTER BODY

main44682-20150iLS110..STD,TAX197909-198307

44683ALOCK, CONNECTOR

main44683-20100iLS110..STD,TAX197909-198307

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-30020iGS11#,LS11#,MS11#,RS110197909-198307

8401

9017908038

main90179-08038

9331914008

main93319-14008

20 parts on this diagram · 9 diagrams in section
