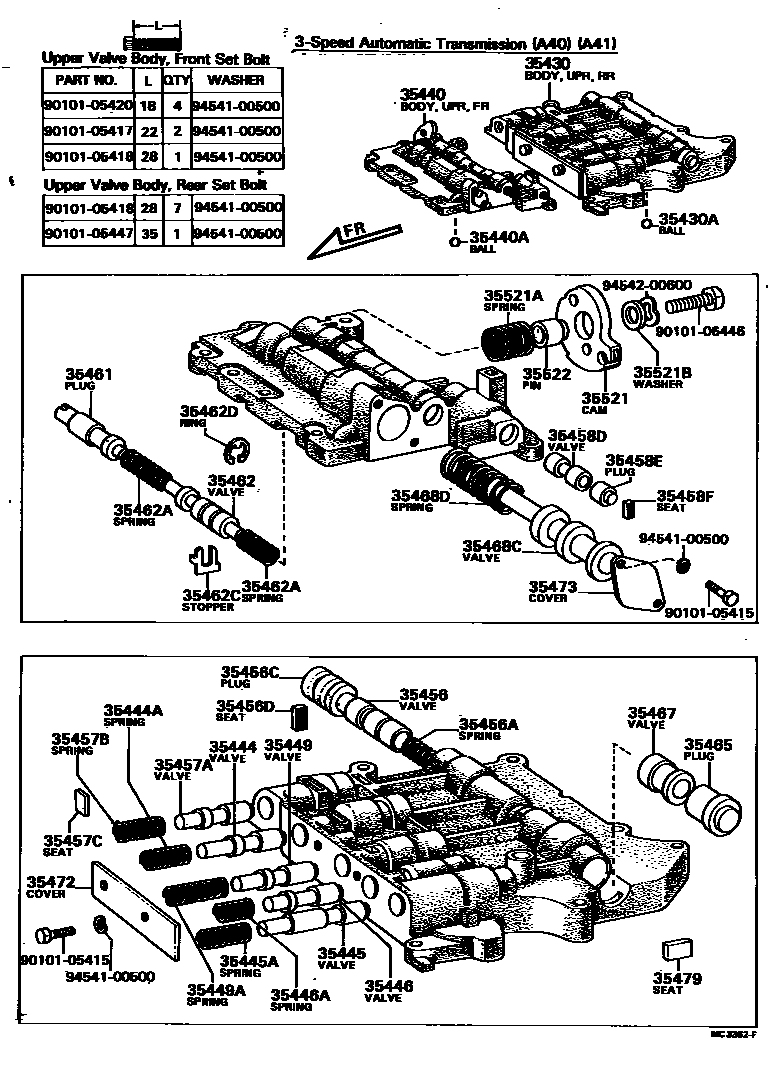

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0010 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1

35430BODY ASSY, REAR UPPER VALVE

main35430-20010iLS110,117..ATM198208-198307

main35430-22060iMS110..ATM..LPG198108-198307

main35430-30020iMS110..3HC..LPG197909-198108

main35430-30040iMS110..ATM..EFI197909-198012

sub35430-22072

main35430-30041iMS110..ATM..EFI198012-198108

main35430-30060iLS11#..ATM197909-198208

main35430-30080iMS110..ATM..CBR197909-198108

main35430-30090iMS112..ATM..EFI197909-198307

main35430-30100iGS110..ATM198108-198307

main35430-30110iLS111..TDE198208-198307

main35430-30120iMS112..TWC198108-198307

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010×4iGS110,LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)197909-198307

sub35495-22020

main90360-06023×6iMS112..TWC198108-198307

35440BODY ASSY, FRONT UPPER VALVE

main35440-14010iGS110..ATM198108-198307

main35440-30010iMS110..ATM..(CBR,LPG)197909-198105

main35440-30011iMS110..ATM..(CBR,LPG)198105-198307

main35440-30020iMS110..ATM..EFI197909-198012

main35440-30021iMS110..ATM..EFI198012-198108

sub35440-30022

main35440-30040iLS11#..ATM197909-198012

main35440-30041iLS11#..ATM198012-198208

main35440-30050iMS112..ATM..EFI197909-198307

sub35440-30051

main35440-30070iMS112..TWC198108-198307

main35440-30080iLS11#..ATM198208-198307

sub35440-30081

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22010iGS110,LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)197909-198307

sub35495-22020

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010iMS110..ATM..(CBR,LPG,TBO)197909-198307

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-08725iMS112..TWC198108-198307

LWR

main90501-09686iMS112..TWC198108-198307

INTERMEDIATE

main90501-11001iMS110..ATM..(CBR,LPG)197909-198307

main90501-11009iGS110,LS111,MS112..ATM..(EFI,TDE)197909-198307

35445VALVE, LOW MODULATOR

main35445-22010iGS110,LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)197909-198307

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iGS110,LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)197909-198307

35446VALVE, GOVERNOR MODULATOR

main35446-20010iLS11#..ATM198208-198307

main35446-22010iGS110,LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO)197909-198208

35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)

main90501-07688iGS110,MS11#..ATM..(EFI,LPG,TBO)198208-198307

35449VALVE, SEQUENCE

main35447-22010iGS110,LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)197909-198307

UPR VALVE

main35449-22010iGS110,MS110..ATM..(CBR,EFI,LPG)197909-198307

LWR VALVE

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12726iGS110,MS110..ATM..(CBR,EFI,LPG)197909-198307

LWR VALVE

35456VALVE, 2-3 SHIFT

main35456-22010iMS110..ATM..(CBR,LPG)197909-198307

main35456-30040iMS110..ATM..EFI197909-198108

main35456-30050iMS112..TWC198108-198307

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08013iMS110..ATM..EFI197909-198108

main90501-08724iMS110..ATM..(CBR,LPG)197909-198307

main90501-09028iMS112..TWC198108-198307

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iMS110..ATM..(CBR,LPG)197909-198307

main35452-30010iMS112..TWC198108-198307

sub90339-05014

main35452-30020iMS110..ATM..EFI197909-198108

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iMS110..ATM..(CBR,LPG)197909-198307

main35493-30030iMS112..TWC198108-198307

35457AVALVE, DETENT REGULATOR

main35457-22010iGS110,LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)197909-198307

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09006iMS112..ATM..EFI197909-198307

main90501-09014iLS11#..ATM197909-198208

main90501-09022iGS110..ATM198108-198307

main90501-09025iLS11#..ATM198208-198307

main90501-09739iMS110..ATM..EFI198010-198108

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iGS110,LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)197909-198307

35458DVALVE, CUT BACK

main35458-22010iGS110,LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)197909-198307

main35458-30020iMS112..TWC198108-198307

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iGS110,LS11#,MS110,112..ATM197909-198307

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010iGS110,LS11#,MS110,112..ATM197909-198307

35461PLUG, DOWN SHIFT

main35408-22020iMS110..ATM..(CBR,EFI,LPG)197909-198307

main35408-30010iLS11#,MS112..ATM197909-198105

main35408-30020iMS112..TWC198108-198307

main35408-30030iLS11#..ATM198105-198208

35462VALVE, THROTTLE

main35462-22011iGS110,LS11#,MS110,112..ATM197909-198307

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07680iGS110,LS11#,MS110,112..ATM197909-198307

main90501-11011iMS112..TWC198108-198307

PRIMARY

main90501-12011iGS110,MS110,112..ATM..(CBR,EFI,LPG,TBO)197909-198307

main90501-12029iLS11#..ATM197909-198208

PRIMARY

main90501-12045iLS11#..ATM198208-198307

35462CSTOPPER, VALVE VIBRATING

main35422-22010iGS110,LS11#,MS110,112..ATM197909-198307

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023×6iGS110,LS11#,MS110,112..ATM197909-198307

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iMS110..ATM..(CBR,LPG)197909-198307

main35465-30010iMS110..ATM..EFI197909-198307

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iMS110..ATM..(CBR,LPG)197909-198307

main35467-30020iMS110..ATM..EFI197909-198108

35468CVALVE, SECONDARY REGULATOR

main35468-14010iGS110..ATM198108-198307

main35468-22010iLS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)197909-198307

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-16683iMS110..ATM..(CBR,LPG)197909-198307

main90501-19001iGS110,LS11#,MS110,112..4FC,4HC197909-198307

35472COVER, VALVE BODY, NO.2

main35472-22010iGS110,LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)197909-198307

main35472-30010iMS112..TWC198108-198307

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iGS110,LS11#,MS110,112..ATM197909-198307

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iMS110..ATM..(CBR,LPG)197909-198307

35521CAM, THROTTLE VALVE

main35521-20010iLS11#..ATM198208-198307

main35521-30010iGS110,MS110,112..ATM..(CBR,EFI,LPG,TBO)197909-198307

main35521-30020iLS11#..ATM197909-198208

main35521-30030iMS112..TWC198108-198307

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-12331iGS110,LS11#,MS110,112..ATM197909-198307

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iGS110,LS11#,MS110,112..ATM197909-198307

35522PIN, THROTTLE VALVE CAM

main35522-22010iGS110,LS11#,MS110,112..ATM197909-198307

9010105415

main90101-05415

9010105417

main90101-05417

9010105418

main90101-05418

9010105420

main90101-05420

9010105447

main90101-05447

9010106446

main90101-06446

9454100500

main94541-00500

9454200600

main94542-00600

46 parts on this diagram · 14 diagrams in section
