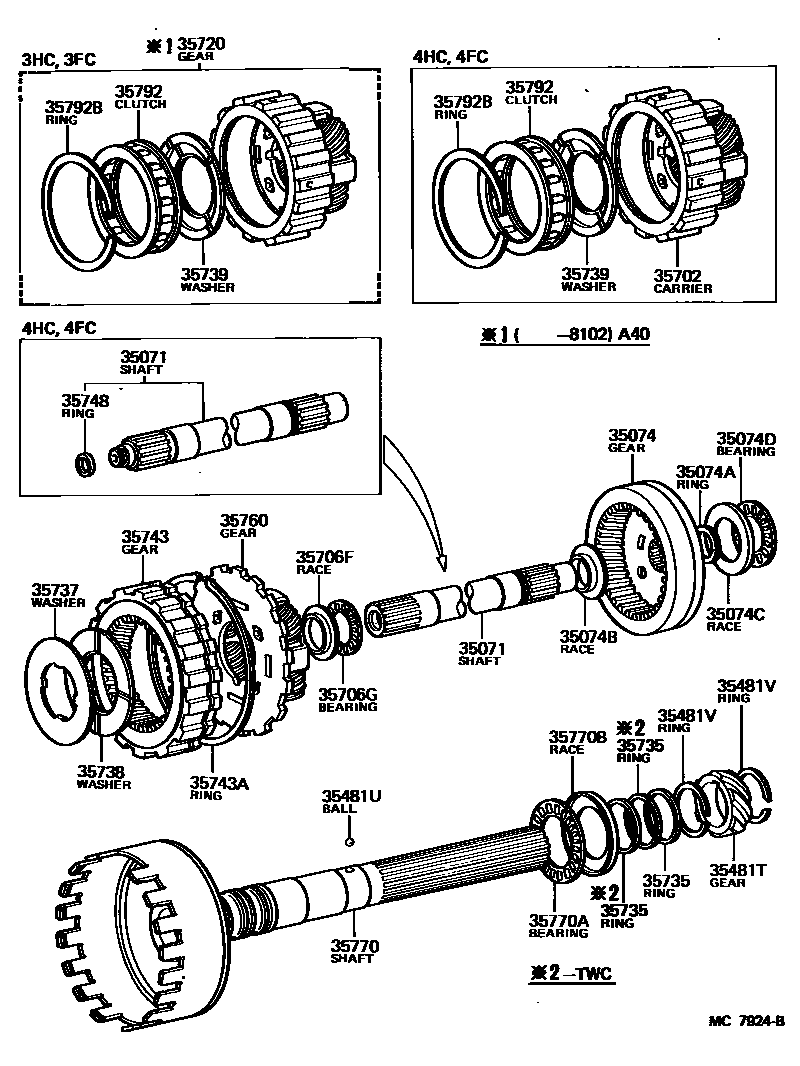

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35071SHAFT SUB-ASSY, PLANETARY INTERMEDIATE

main35708-22011iMS110..ATM..(CBR,LPG)197909-198307

main35708-30021iMS110..ATM..EFI197909-198108

main35708-30031iGS110,LS110,117..ATM197909-198307

main35708-30040iMS110..TBO198010-198209

main35708-30041iLS111,MS112..ATM198209-198307

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-22010iMS110..ATM..(CBR,LPG)197909-198307

main35074-30010iGS110..ATM198108-198307

main35074-30020iMS110..TBO198010-198307

sub35074-30030

35074ARING, SET (FOR REAR PLANETARY RING GEAR)

main90522-20037iGS110,LS11#,MS110,112..ATM197909-198307

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-22050iGS110,LS11#,MS110,112..ATM197909-198307

35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)

main35789-22020iGS110,LS11#,MS110,112..ATM197909-198307

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-28014iGS110,LS11#,MS110,112..ATM197909-198307

35481TGEAR, SPEEDMETER DRIVE (ATM)

main33481-25020iGS110,LS111,MS110..CBR,EFI,TBO,TDE197909-198307

main33481-25030iLS110,117..ATM197909-198307

N=6

main33481-26010iMS112..ATM197909-198307

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004iGS110,LS11#,MS110,112..ATM197909-198307

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009iGS110,LS11#,MS110,112..ATM..(DSL,EFI,LPG,TBO,TDE)198108-198307

main90520-29004iMS112..TWC198108-198307

35702CARRIER SUB-ASSY, PLANETARY W/LOCK GEAR

main35704-30020iGS110,LS110,117,MS110..ATM..(DSL,EFI)197909-198307

sub35704-22030

main35704-30030iLS111,MS112..ATM197909-198307

35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)

main35789-22010iGS110,LS11#,MS110,112..ATM197909-198307

35706GBEARING, THRUST (FOR SUN GEAR REAR)

main90374-23012iGS110,LS11#,MS110,112..ATM197909-198307

35720GEAR ASSY, FRONT PLANETARY

main35720-22020iMS110..ATM..(CBR,LPG)197909-198102

35735RING, PLANETARY OUTPUT SNAP

main35735-22010×3iLS11#,MS110,112..ATM197909-198108

35737WASHER, PLANETARY CARRIER THRUST

main35737-22010iGS110,LS110,117,MS110..ATM..(CBR,DSL,EFI,LPG)197909-198307

main35737-30020iLS111,MS112..ATM197909-198307

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-22010iGS110,MS110..ATM..(CBR,EFI,LPG)197909-198307

main35738-30010iLS111,MS112..ATM197909-198307

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-22011iGS110,LS110,117,MS110..ATM..(CBR,DSL,EFI,LPG)197909-198307

main35739-30010iLS111,MS112..ATM197909-198307

35743GEAR, FRONT PLANETARY RING

main35743-22010iGS110,LS110,117,MS110..ATM..(CBR,DSL,EFI,LPG)197909-198307

main35743-30010iLS111,MS112..ATM197909-198307

35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-99121iGS110,LS11#,MS110,112..ATM197909-198307

35748RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL

main35748-30010iGS110,LS11#,MS110,112..4FC,4HC197909-198307

35760GEAR ASSY, REAR PLANETARY

main35760-22020iMS110..ATM..(CBR,LPG)197909-198102

main35760-30010iLS11#,MS110..ATM..(DSL,EFI)197909-198108

sub35760-30020

main35760-30030iLS111,MS112..ATM197909-198307

35770SHAFT ASSY, OUTPUT

main35770-14010iGS110,LS110,117,MS110..ATM..(DSL,EFI,LPG)198201-198307

sub35770-14020

main35770-22012iGS110,LS11#,MS110..ATM..(CBR,DSL,EFI,LPG)197909-198201

main35770-30010iMS110..TBO198010-198307

main35770-30030iMS112..TWC198108-198307

sub35770-53010

35770ABEARING, THRUST (FOR OUTPUT SHAFT)

main90374-38013iGS110,LS11#,MS110,112..ATM197909-198307

35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)

main35789-22040iGS110,LS11#,MS110,112..ATM197909-198307

35792CLUTCH, 1 WAY, NO.2

main35792-20010iGS110,LS110,117..ATM198012-198307

sub35792-30011

sub35739-14010

main35792-22020iMS110..ATM..(CBR,EFI,LPG)197909-198307

main35792-22030iLS11#..ATM197909-198012

main35792-30010iLS111,MS112..ATM197909-198307

sub35792-30011

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-79148iGS110,LS11#,MS110,112..ATM197909-198307

26 parts on this diagram · 1 diagram in section
