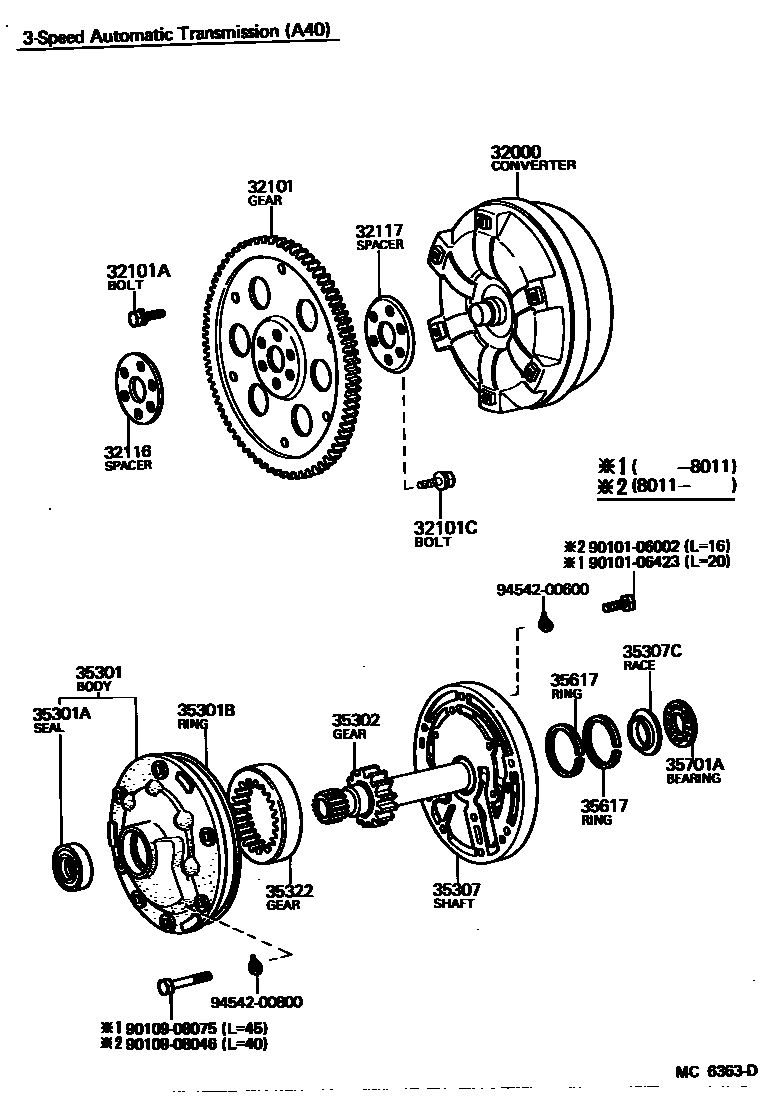

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-14070iMS112..TWC198108-198307

sub32000-14071

main32000-14090iLS110,117..ATM198107-198307

sub32000-14091

main32000-14100iLS111..TDE198208-198307

sub32000-14101

main32000-20100iMS110..TBO198010-198107

main32000-22020iMS110..ATM..(CBR,LPG)197909-198307

sub32000-22021

main32000-22040iMS112..ATM197909-198107

main32000-24010iGS110..ATM198108-198307

sub32000-24011

main32000-30090iLS11#,MS110..ATM..(DSL,EFI)197909-198107

main32000-30100iMS112..ATM..EFI198107-198307

sub32000-30101

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14030iGS110..ATM198108-198307

sub32101-22030

main32101-30040iMS110,112..ATM197909-198307

main32101-30051iLS11#..ATM197909-198307

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08090iGS110,LS11#,MS11#..ATM198301-198304

L=10.5

main90109-08107iGS110,LS11#,MS11#..ATM198304-198307

main91611-60812×6iGS110,LS11#,MS110,112..ATM197909-198301

sub91611-B0812

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046×6iGS110..ATM198108-198307

main90105-12014×6iLS11#..ATM197909-198307

main90109-10037×6iMS110,112..ATM197909-198307

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iGS110..ATM198108-198307

main32116-30011iMS110,112..ATM197909-198307

main32116-30020iLS11#..ATM197909-198307

32117SPACER, DRIVE PLATE, REAR

main32117-14011iGS110..ATM198108-198307

main32117-30011iMS110,112..ATM197909-198307

main32117-30020iLS11#..ATM197909-198307

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iGS110..ATM198108-198307

main35301-22012iMS110..ATM..(CBR,LPG)197909-198011

sub90101-06002

sub90101-08046

main35301-30030iLS11#,MS110,112..4FC,4HC197909-198011

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38129iGS110,LS11#,MS110,112..ATM197909-198307

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iGS110,LS11#,MS110,112..ATM197909-198307

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-14010iGS110..ATM198108-198307

sub35321-22020

sub35321-22030

sub35321-22040

sub35321-22050

sub35321-22060

main35321-22010iLS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)197909-198307

sub35321-22090

35307SHAFT SUB-ASSY, STATOR

main35370-14011iGS110..ATM198108-198307

sub35370-14012

main35370-22010iMS110..ATM..(CBR,LPG)197909-198108

main35370-22011iMS110..ATM..LPG198108-198307

sub35370-22012

main35370-22030iLS110,117..ATM198108-198307

sub35370-22031

main35370-30010iLS11#,MS110..ATM..(DSL,EFI)197909-198108

sub35370-30012

main35370-30020iMS110..TBO198010-198108

main35370-30021iMS110,112..ATM..(EFI,TBO)198108-198110

main35370-30022iLS111,MS110,112..ATM..(EFI,TBO,TDE)198110-198307

sub35370-30023

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iLS11#,MS110,112..ATM..(DSL,EFI,LPG,TBO)198108-198110

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iGS110..ATM198108-198307

sub35322-22020

sub35322-22030

sub35322-22040

sub35322-22050

sub35322-22060

main35322-22010iLS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)197909-198307

sub35322-22090

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010×2iGS110,LS11#,MS110,112..4FC,4HC198108-198307

main35617-22010×2iMS110..ATM..(CBR,LPG)197909-198108

main35617-22011×2iMS110..ATM..LPG198108-198307

sub35617-32010

main35617-22020×2iLS11#,MS110,112..4FC,4HC197909-198108

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iLS110,117,MS110..ATM..(DSL,LPG)198108-198307

main90374-24001iMS110,112..ATM..(EFI,TBO)198108-198110

main90374-25003iGS110,LS111,MS110,112..4FC,4HC198110-198307

9010106002

main90101-06002

9010106423

main90101-06423

9010908046

main90109-08046

9010908075

main90109-08075

9454200600

main94542-00600

9454200800

main94542-00800
