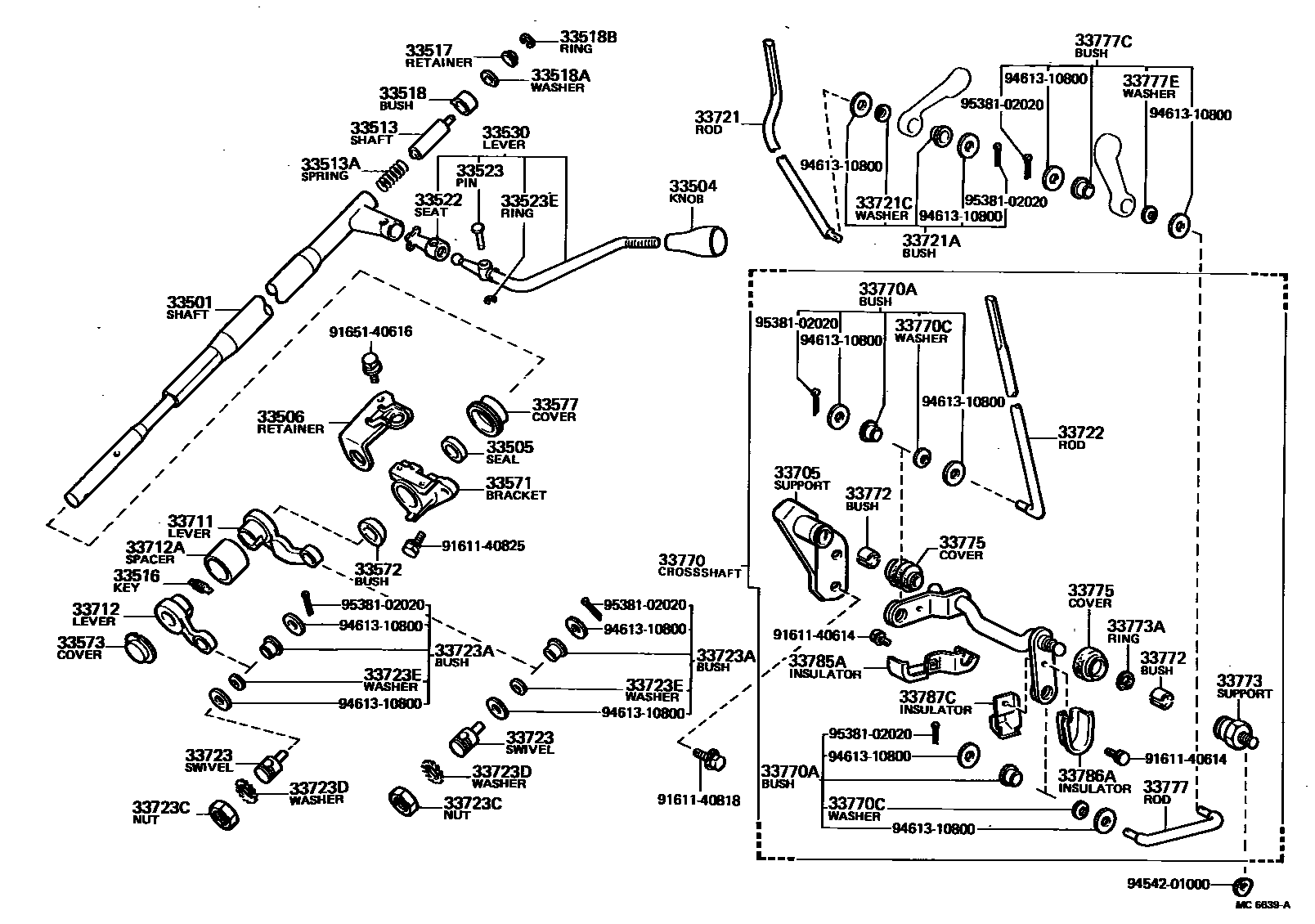

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0004 1 0005 1

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-30360iRS110..3H197909-198010

main33501-30370iLS11#..4H197909-198010

main33501-30380iMS110,117,RS110..4H197909-198010

main33501-30390iLS110,MS110,112..3HC,4HC197909-198108

main33501-30420iGS110,LS110,MS110,112..3HC,4HC198108-198307

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main33505-30010iLS110,MS110,112,RS110..3H,3HC,4HC197909-198010

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-30210iRS110..3H197909-198010

main33575-30270iGS110,LS110,MS110,112..3HC,4HC197909-198307

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-30080iLS11#,MS110,117,RS110..3H,4H197909-198108

main33513-30090iLS110,MS110,112..3HC,4HC197909-198108

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14784iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33516KEY, CONTROL LEVER SELECTING

main33516-20020iRS110..3H197909-198010

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-30060iLS11#,MS11#,RS110..3H,3HC,4H,4HC197909-198108

main33518-30080iGS110,MS112..4HC198108-198307

W/TILT STEERING

33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

main33515-30010iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-30030iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07003iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-39075iGS11#,LS110,117,MS110,117,RS110..3H,4H197909-198307

main33541-39085iGS110,LS110,MS110,112..3HC,4HC197909-198307

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33057-30090iMS110,117,RS110..4H197909-198010

main33057-30100iLS11#..4H197909-198010

main33571-30230iLS110,MS110,112,RS110..3H,3HC,4HC197909-198010

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-30020iLS110,MS110,112,RS110..3H,3HC,4HC197909-198010

main33572-30030iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

33573COVER, CONTROL SHAFT DUST, LOWER

main33573-30010iRS110..3H197909-198010

33577COVER, CONTROL SHAFT HOLE

main33577-30070iLS11#,MS11#,RS110..3H,3HC,4H,4HC197909-198108

33705SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE)

main33705-30110iMS110,117,RS110..4H197909-198010

main33705-30120iGS110,LS110,MS110,112..3HC,4HC197909-198307

main33705-30130iLS11#..4H197909-198010

main33705-30140iRS110..3H197909-198010

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33053-30060iLS11#..4H197909-198010

main33053-30070iMS110,117,RS110..4H197909-198010

main33711-30100iGS110,LS110,MS110,112..3HC,4HC197909-198307

main33711-30140iRS110..3H197909-198010

33712LEVER, CONTROL SHAFT

main33527-30060iLS11#..4H197909-198010

main33527-30070iLS11#,MS110,117,RS110..3H,4H198010-198108

main33527-30080iGS11#,LS110,117,MS110,117,RS110..4H198108-198307

main33712-30040iRS110..3H197909-198010

33712ASPACER (FOR CONTROL SHAFT LEVER)

main90560-26089iRS110..3H197909-198010

33721ROD, LOW SPEED CONNECTING

main33721-30110iRS110..3H197909-198010

33721ABUSH (FOR LOW SPEED CONNECTING ROD)

main90999-99064iRS110..3H197909-198108

33721CWASHER, WAVE (FOR LOW SPEED CONNECTING ROD)

main90206-08016iRS110..3H197909-198108

33722ROD, HIGH SPEED CONNECTING

main33722-30080iRS110..3H197909-198010

33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

main33723-20010×2iLS11#,MS11#,RS110..3H,3HC,4H,4HC197909-198108

main33723-30040×2iGS11#,LS110,117,MS11#,RS110..3HC,4H,4HC198108-198307

33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90999-99064×2iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33723CNUT, HEXAGON (FOR CONTROL ROD SETTING)

main90170-10012×2iGS11#,LS110,117,MS11#,RS110..3HC,4H,4HC198108-198307

LWR

main90170-10082×2iGS11#,LS110,117,MS11#,RS110..3HC,4H,4HC198108-198307

UPR

main90170-18159×2iLS11#,MS11#,RS110..3H,3HC,4H,4HC197909-198108

33723DWASHER, TOOTHED (FOR CONTROL ROD SETTING)

main90205-18012×2iLS11#,MS11#,RS110..3H,3HC,4H,4HC197909-198108

33723EWASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)

main90206-08016×2iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33770SHAFT ASSY, CROSS (FOR COLUMN SHIFT)

main33770-30270iMS110,117,RS110..4H197909-198010

main33770-30280iMS110..3HC197909-198108

main33770-30290iMS110..4HC197909-198108

main33770-30300iLS11#..4H197909-198010

main33770-30310iRS110..3H197909-198010

main33770-30370iLS110,MS112..4HC197909-198108

33770ABUSH (FOR CROSS SHAFT)

main90999-99064×4iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33770CWASHER, WAVE (FOR CROSS SHAFT)

main90206-08016×4iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33772BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

main33772-20010×8iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33773SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)

main33773-20020iGS11#,LS110,117,MS110,117,RS110..4H198108-198307

main33773-30010iLS11#..4H197909-198010

33773ARING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)

main96151-01600×2iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

33775COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)

main33775-20020×2iGS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC197909-198307

MISSION SIDE

main33775-20040×2iGS11#,MS110,117,RS110..3H,4H197909-198307

FRAME SIDE

main33788-12010iLS11#..4H197909-198010

FRAME SIDE

33777ROD, GEAR SHIFT(FOR COLUMN SHIFT)

main33777-30011iRS110..3H197909-198010

33777CBUSH, GEAR SHIFT ROD

main90999-99064iRS110..3H197909-198010

33777EWASHER, WAVE(FOR GEAR SHIFT ROD)

main90206-08016iRS110..3H197909-198010

33785AINSULATOR, CROSS SHAFT LEVER HEAT, NO.1(FOR COLUMN SHIFT)

main33785-30020iRS110..3H197909-198010

main33785-30040iGS110,LS110,MS110,112..3HC,4HC197909-198307

33786AINSULATOR, CROSS SHAFT LEVER HEAT, NO.2(FOR COLUMN SHIFT)

main33786-30020iRS110..3H197909-198010

33787CINSULATOR, CROSS SHAFT LEVER HEAT, NO.3

main33787-30010iRS110..3H197909-198010

main33787-30020iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

9161140614

main91611-40614

9161140818

main91611-40818

9161140825

main91611-40825

9165140616

main91651-40616

9454201000

main94542-01000

9461310800

main94613-10800

9538102020

main95381-02020

52 parts on this diagram · 4 diagrams in section
