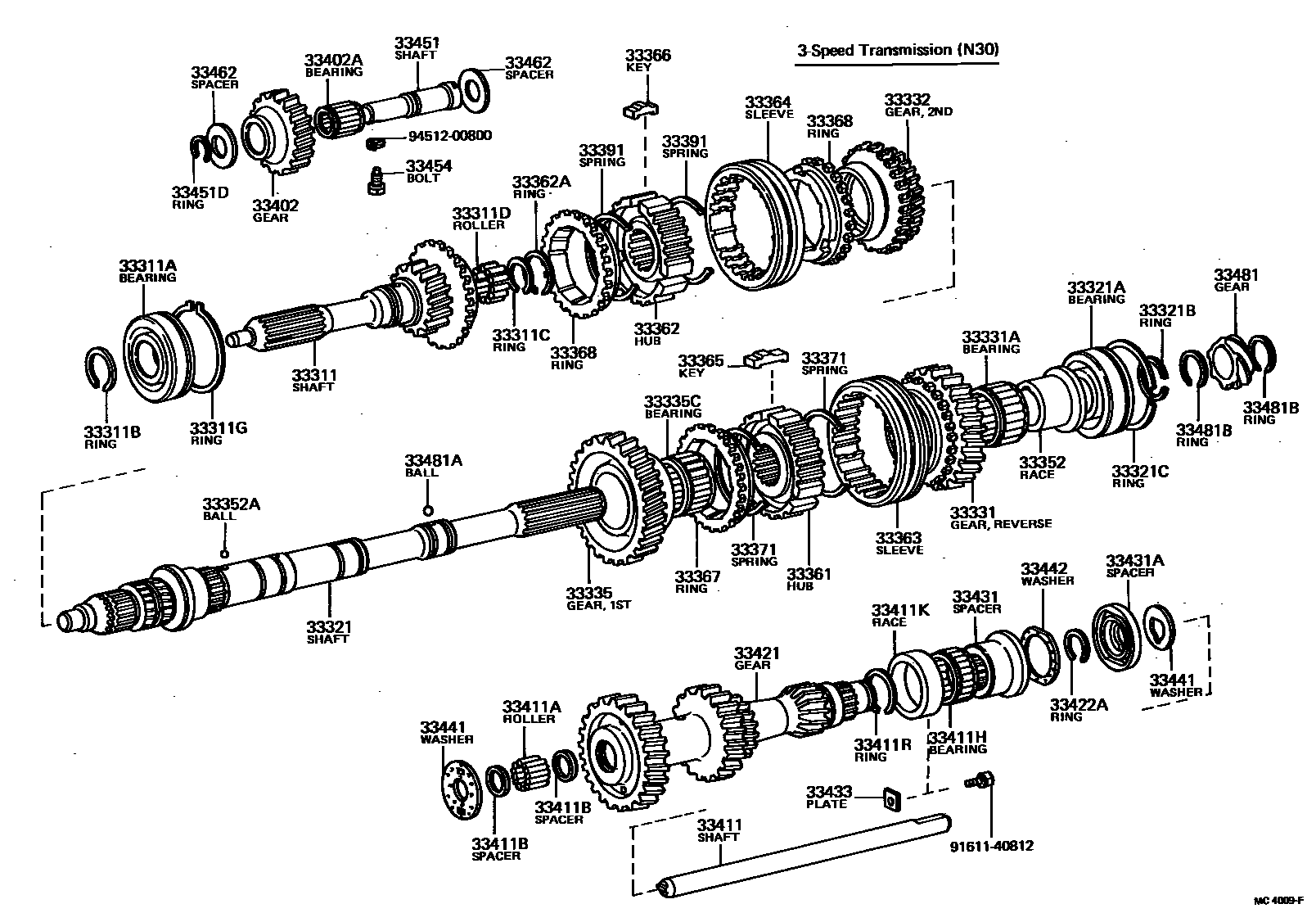

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1

33311SHAFT, INPUT

main33301-20020iMS110,112..5F197909-198108

sub33301-30041

main33301-22020iGS110,LS11#,MS110,117,RS110..4F,5F198108-198208

sub33301-22021

main33301-22021iGS11#,LS11#,MS110,RS110..4F,5F198208-198307

sub33301-22022

sub33368-20013

main33301-30020iMS110,117,RS110..3H,4H197909-198010

main33301-30050iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

sub33301-30051

main33301-31010iMS110,117..4F197909-198108

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-32001iLS11#..4F,5F197909-198108

MARK A

sub90363-32003

main90363-32002iLS11#..MTM197909-198108

MARK B

sub90363-32003

main90363-32003iLS11#..MTM197909-198108

MARK C

main90363-32005iMS110,112..5F197909-198108

main90363-32007iLS11#,MS110,117,RS110..3H,4H198010-198108

NACHI

main90363-32008iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

NSK

main90363-32060iMS110,117..4F197909-198108

sub90363-32005

main90363-35005iMS110,117,RS110..3H,4H197909-198010

main90363-35007iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-30214iMS11#..4F,5F197909-198307

main90520-30215iLS11#..MTM197909-198307

main90520-30216iMS11#..4F,5F197909-198307

main90520-30217iMS11#..4F,5F197909-198307

main90520-30218iMS11#..4F,5F197909-198307

main90520-30219iMS11#..4F,5F197909-198307

main90520-33107iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

main90520-33132iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

main90520-33168iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

main90520-33169iMS110,117,RS110..3H,4H197909-198307

main90520-33170iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

main90520-33171iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

main90520-33172iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)

main90521-30005iMS110,117,RS110..3H,4H197909-198010

main90521-33001iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

33311DBEARING, INPUT SHAFT

main90361-06047iGS11#,LS110,117,MS110,117,RS110..3H,4H197909-198307

main90364-19043iMS11#..4F,5F197909-198307

sub90364-19006

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-68183iMS110,117,RS110..3H,4H197909-198010

main90520-71221iMS11#..4F,5F197909-198307

main90520-76001iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

33321SHAFT, OUTPUT

main33321-20071iLS11#,MS110,112..5F197909-198108

main33321-20080iMS110,117..4F197909-198108

sub33321-20071

main33321-22050iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

main33321-30091iMS110,117,RS110..4H197909-198010

main33321-30100iRS110..3H197909-198010

main33321-30110iLS11#,MS110,117,RS110..3H,4H198010-198101

sub33321-30111

sub90520-25005

sub90520-25006

sub90520-25009

sub90520-25010

sub90520-25011

sub90520-25012

sub90520-25013

sub90520-25014

sub90520-25015

sub90520-25016

sub90520-25017

main33321-30111iGS11#,LS110,117,MS110,117,RS110..3H,4H198101-198307

sub33321-30112

33321ABEARING (FOR OUTPUT SHAFT REAR)

main33350-22010iGS11#,LS11#,RS110..5F198108-198307

main90363-30012iMS110,117,RS110..3H,4H197909-198010

main90363-30024iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198212

NACHI

sub90363-30031

main90363-30025iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

NSK

sub90363-30024

main90363-30031iGS11#,LS110,117,MS110,RS110..4H198212-198307

NACHI

sub90363-30032

main90363-32060iLS110,MS110,117..4F197909-198108

sub90363-32005

main97104-06228iLS11#,MS110,112..5F197909-198108

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-25003iGS11#,LS11#,RS110..5F198108-198307

main90520-25004iGS11#,LS11#,RS110..5F198108-198307

main90520-25005iGS11#,LS110,117,MS110,117,RS110..3H,4H198101-198307

main90520-25006iGS11#,LS110,117,MS110,117,RS110..3H,4H198101-198307

main90520-25009iGS11#,LS110,117,MS110,117,RS110..3H,4H198101-198307

main90520-25010iGS11#,LS110,117,MS110,117,RS110..3H,4H198101-198307

main90520-25011iGS11#,LS110,117,MS110,117,RS110..3H,4H198101-198307

main90520-25012iGS11#,LS110,117,MS110,117,RS110..3H,4H198101-198307

main90520-25013iGS11#,LS110,117,MS110,117,RS110..3H,4H198101-198307

main90520-25014iGS11#,LS110,117,MS110,117,RS110..3H,4H198101-198307

main90520-25015iGS11#,LS110,117,MS110,117,RS110..3H,4H198101-198307

main90520-25016iGS11#,LS110,117,MS110,117,RS110..3H,4H198101-198307

main90520-25017iGS11#,LS110,117,MS110,117,RS110..3H,4H198101-198307

main90520-25270iGS11#,LS11#,RS110..5F197909-198307

main90520-25271iLS11#,MS110,117,RS110..3H,4H197909-198307

main90520-25272iGS11#,LS11#,RS110..5F197909-198307

main90520-25273iLS11#,MS110,112..5F197909-198307

main90520-25277iLS11#,MS110,117,RS110..3H,4H198010-198101

T=1.84-1.94

main90520-25277iLS11#,MS110,112..5F197909-198108

T=1.89-1.94

main90520-25278iLS11#,MS110,117,RS110..3H,4H197909-198108

T=1.95-2.00

main90520-25279iLS11#,MS110,112..5F197909-198108

T=2.01-2.06

main90520-25280iLS11#,MS110,117,RS110..3H,4H197909-198108

T=2.07-2.12

main90520-25281iLS11#,MS110,117,RS110..3H,4H197909-198108

T=2.13-2.18

main90520-25282iLS11#,MS110,112..5F197909-198108

T=2.19-2.24

main90520-25283iLS11#,MS110,117,RS110..3H,4H197909-198108

T=2.25-2.30

main90520-25284iLS11#,MS110,117,RS110..3H,4H197909-198307

main90520-25285iLS11#,MS110,112..5F197909-198307

main90520-28002iMS110,117,RS110..3H,4H197909-198010

T=1.85-1.90

sub90520-28001

main90520-28003iMS110,117,RS110..3H,4H197909-198010

T=1.95-2.00

main90520-28004iMS110,117,RS110..3H,4H197909-198010

T=2.05-2.10

sub90520-28003

main90520-28005iMS110,117,RS110..3H,4H197909-198010

T=2.15-2.20

main90520-28006iMS110,117,RS110..3H,4H197909-198010

T=2.25-2.30

sub90520-28005

main90520-28007iMS110,117,RS110..3H,4H197909-198010

T=2.35-2.40

main90520-28008iMS110,117,RS110..3H,4H197909-198010

T=2.45-2.50

sub90520-28007

main90520-30214iLS11#..4F,4H197909-198108

main90520-30215iLS11#..4F,4H197909-198108

main90520-30216iLS110,MS110,117..4F197909-198108

main90520-30217iLS110,MS110,117..4F197909-198108

main90520-30218iMS110,117..4F197909-198108

main90520-30219iMS110,117..4F197909-198108

main90520-30239iLS11#..4F,4H197909-198108

main90520-30240iMS110,117..4F197909-198108

T=2.40-2.45

main90520-30241iLS110,MS110,117..4F197909-198108

T=2.50-2.55

main90520-30267iLS11#..4F,4H197909-198108

T=2.45-2.50

sub90520-30240

main90520-30268iLS11#..4F,4H197909-198108

T=2.55-2.60

sub90520-30241

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-26179iLS11#,MS110,112..5F197909-198108

sub90520-26061

main90520-68193iMS110,117,RS110..3H,4H197909-198010

main90520-71221iLS11#..4F,4H197909-198307

33331GEAR, REVERSE

main33031-30010iMS110,117,RS110..3H,4H197909-198010

N=31

main33031-30020iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

N=31

sub33031-30030

main33331-20031iLS11#,MS110,112..5F197909-198108

N=39

main33331-22020iGS110,LS11#,MS110,117,RS110..4F,5F198108-198111

N=39

main33331-22021iGS11#,LS11#,MS110,117,RS110..4F,5F198111-198304

N=39

sub33331-22030

main33331-22030iGS11#,LS11#,MS110,RS110..4F,5F198304-198307

N=39

main33331-31011iMS110,117..4F197909-198108

N=31

33331ABEARING (FOR REVERSE GEAR)

main90364-38034iMS110,117,RS110..3H,4H197909-198307

33332GEAR, 2ND

main33033-20030iLS11#,MS110,112..5F197909-198108

N=31

sub33033-20031

main33033-22020iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

N=35

sub33033-22021

sub33367-22021

main33033-30010iMS110,117,RS110..3H,4H197909-198010

N=25

main33033-30020iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

N=25

sub33033-30021

main33033-31011iLS11#..4F,4H197909-198108

N=29

33335GEAR, 1ST

main33032-22020iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

N=34

sub33032-22021

sub33367-22021

main33032-30010iMS110,117,RS110..3H,4H197909-198010

N=32

main33032-30020iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

N=32

main33032-31011iMS11#..4F,5F197909-198108

N=34

sub33032-31012

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-38002iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

main90364-38034iMS110,117,RS110..3H,4H197909-198010

main90364-43002iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

sub90364-43001

main90364-43042iMS11#..4F,5F197909-198108

sub90364-43004

33352RACE, REVERSE GEAR BEARING INNER

main33344-20010iMS110,117,RS110..3H,4H197909-198010

33352AKEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK

main90360-06004iMS110,117,RS110..3H,4H197909-198010

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-20020iMS110,117,RS110..3H,4H197909-198009

sub33361-35020

main33361-22020iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

main33361-31011iLS11#,MS11#..4F,5F197909-198108

main33361-35020iGS11#,LS110,117,MS110,117,RS110..3H,4H198009-198307

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-22020iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

main33362-30030iMS110,117,RS110..3H,4H197909-198010

main33362-30040iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

main33362-31011iMS11#..4F,5F197909-198108

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-28010iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

main90520-28011iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

main90520-28012iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

main90520-28013iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

main90520-28245iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

main90520-28246iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

main90520-28248iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

main90520-30215iMS110,117,RS110..3H,4H197909-198010

main90520-30216iMS110,117,RS110..3H,4H197909-198010

main90520-30217iMS110,117,RS110..3H,4H197909-198010

main90520-30218iMS110,117,RS110..3H,4H197909-198010

main90520-30219iMS110,117,RS110..3H,4H197909-198010

main90520-30239iMS110,117,RS110..3H,4H197909-198010

33363SLEEVE, TRANSMISSION HUB, NO.1

main33363-20021iLS11#,MS110,112..5F197909-198108

N=39

main33363-22020iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

N=42

sub33363-22021

sub33371-22033

main33363-30020iMS110,117,RS110..3H,4H197909-198009

sub33364-30020

sub33365-30040

sub33371-14031

main33364-30020iMS110,117,RS110..3H,4H198009-198010

sub33364-30021

main33364-30020iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

N=39

sub33364-30021

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-20012iLS11#..MTM197909-198108

sub33364-20013

main33364-22020iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

sub33364-22021

sub33391-22030

main33364-30010iMS110,117,RS110..3H,4H197909-198009

sub33364-30020

main33364-30020iMS110,117,RS110..3H,4H198009-198307

sub33364-30021

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-20040iMS110,117,RS110..3H,4H197909-198009

main33365-30040iRS110..4H..STD;LS110,MS110..4H..(BTP,DLX,STD)..(CBR,DSL)198009-198307

main33365-30050iLS110,MS110,RS110..(3H,4H)..(BTP,DLX,TAX)..(DSL,LPG)198010-198307

main33365-31011iLS11#..MTM197909-198108

main33366-20011iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-20011iMS11#..4F,5F197909-198307

main33366-30030iMS110,117,RS110..3H,4H197909-198307

33367RING, SYNCHRONIZER, NO.1

main33367-22020iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

main33367-30040iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

1ST

main33367-30040iMS110,117,RS110..3H,4H197909-198010

main33368-20012iMS11#..4F,5F197909-198108

main33369-30020iLS110,MS110,RS110..(3H,4H)..(BTP,DLX,TAX)..(DSL,LPG)198010-198307

REVERSE

33368RING, SYNCHRONIZER, NO.2

main33368-20012iGS11#,LS11#,MS11#,RS110..MTM197909-198307

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-14031iLS11#..MTM197909-198307

main33371-20010iMS110,117,RS110..3H,4H197909-198009

main33371-22030iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

sub33371-22032

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14031iMS11#..4F,5F197909-198307

main33371-20010iMS110,117,RS110..3H,4H197909-198010

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-20031iMS110,112..5F197909-198108

N=31

main33402-22020iGS110,LS11#,MS110,117,RS110..4F,5F198108-198111

N=31

main33402-22022iGS11#,LS11#,MS110,117,RS110..4F,5F198111-198307

N=31

main33402-31010iLS11#..4F,4H197909-198010

main33402-31010iLS110,MS110,117..4F198010-198108

N=31

main33461-20021iMS110,117,RS110..3H,4H197909-198010

N=19

main33461-30030iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

N=23

sub33461-30031

33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)

main90364-19037iMS110,117,RS110..3H,4H197909-198010

main90364-28005iLS11#,MS110,117,RS110..3H,4H198010-198012

KOYO

main90364-28006iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

NSK

33411COUNTERSHAFT

main33411-30030iMS110,117,RS110..3H,4H197909-198010

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90361-03002iMS110,117,RS110..3H,4H197909-198010

main90363-25007iLS11#..4F,5F197909-198108

MARK A

sub90363-25009

main90363-25008iLS11#..MTM197909-198108

MARK B

sub90363-25009

main90363-25009iLS11#..MTM197909-198108

MARK C

main90365-25002iMS110,112..5F197909-198108

main90365-25009iGS110,LS11#,MS110,117,RS110..4F,5F198108-198110

main90365-25010iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

NACHI

sub90365-25025

main90365-25014iGS11#,LS11#,MS110,117,RS110..4F,5F198110-198307

main97183-06205iMS110,117..4F197909-198108

sub90365-25002

33411BSPACER(FOR COUNTER GEAR BEARING)

main90560-18002iMS110,117,RS110..3H,4H197909-198010

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90363-20075iLS11#,MS110,112..5F197909-198108

main90363-22003iGS11#,LS11#,RS110..5F198108-198307

sub90363-22007

main90364-39001iMS110,117,RS110..3H,4H197909-198010

main90365-18002iGS11#,LS110,117,MS110,117,RS110..4H198010-198307

main90365-28001iLS11#..4F,4H197909-198108

main97103-06228iMS110,117..4F197909-198108

33411KRACE, COUNTER BEARING OUTER(FOR REAR)

main33437-30010iMS110,117,RS110..3H,4H197909-198010

33411RRING, SNAP, COUNTER GEAR REAR BEARING

main90520-18264iLS11#,MS110,112..5F197909-198108

T=2.00-2.05

main90520-18265iLS11#,MS110,112..5F197909-198108

T=1.80-1.85

main90520-18266iLS11#,MS110,112..5F197909-198108

main90520-18275iLS11#,MS110,112..5F197909-198108

T=1.40-1.45

main90520-20008iGS11#,LS11#,RS110..5F198108-198307

main90520-20009iGS11#,LS11#,RS110..5F198108-198307

main90520-20010iGS11#,LS11#,RS110..5F198108-198307

main90520-20011iGS11#,LS11#,RS110..5F198108-198307

main90520-20012iGS11#,LS11#,RS110..5F198108-198307

main90520-20013iGS11#,LS11#,RS110..5F198108-198307

main90520-20014iGS11#,LS11#,RS110..5F198108-198307

main90520-26179iLS11#..4F,4H197909-198108

sub90520-26061

main90520-37001iMS110,117,RS110..3H,4H197909-198010

main90521-38001iGS11#,LS110,117,MS110,117,RS110..4H198010-198307

33421GEAR, COUNTER

main33401-30030iMS110,117,RS110..3H,4H197909-198010

N=30,24,15,12

main33421-20050iMS110,112..5F197909-198108

N=29,26,22,15

main33421-22020iGS11#,LS11#,RS110..5F198108-198307

N=47,35,25,14,14

sub33421-30220

sub33430-30020

main33421-22030iLS110,MS110,117..4F198108-198307

N=47,35,25,14,14

sub33421-30210

sub33430-30020

main33421-30090iGS11#,LS110,117,MS110,117,RS110..4H198010-198307

N=44,28,15,12

sub33421-30H00

main33421-30100iRS110..3H198010-198108

N=44,28,15,12

main33421-31010iMS110,117..4F197909-198108

N=30,26,22,14,15

33422GEAR, COUNTERSHAFT 4TH SPEED

main33422-30011iMS110,117,RS110..4H197909-198010

33422ARING, SHAFT SNAP (FOR COUNTERSHAFT GEAR)

main90520-25278iMS110,117,RS110..3H,4H197909-198010

T=1.95-2.00

main90520-25279iMS110,117,RS110..3H,4H197909-198010

T=2.01-2.06

main90520-25280iMS110,117,RS110..3H,4H197909-198010

T=2.07-2.12

main90520-25281iMS110,117,RS110..3H,4H197909-198010

T=2.13-2.18

main90520-25282iMS110,117,RS110..3H,4H197909-198010

T=2.19-2.24

main90520-25283iMS110,117,RS110..3H,4H197909-198010

T=2.25-2.30

33431SPACER, COUNTER GEAR, NO.1

main33431-22030iGS11#,LS11#,RS110..5F198108-198307

main33431-30011iRS110..3H197909-198010

33431ASPACER, COUNTER GEAR, NO.2

main33431-22020iGS11#,LS11#,RS110..5F198108-198307

main33431-30020iMS110,117,RS110..3H,4H197909-198010

33433PLATE, COUNTER GEAR REAR BEARING LOCK

main33433-30010iMS110,117,RS110..3H,4H197909-198010

33441WASHER, COUNTER GEAR SIDE THRUST, NO.1

main33441-30170iMS110,117,RS110..3H,4H197909-198010

FR,T=1.90-2.00

main33441-30180iMS110,117,RS110..3H,4H197909-198010

RR,T=2.30-2.35

main33441-30190iMS110,117,RS110..3H,4H197909-198010

RR,T=2.45-2.50

main33441-30200iMS110,117,RS110..3H,4H197909-198010

RR,T=2.60-2.65

main33441-30210iMS110,117,RS110..3H,4H197909-198010

RR,T=2.75-2.80

main33441-30220iMS110,117,RS110..3H,4H197909-198010

RR,T=2.90-2.95

main33441-30230iMS110,117,RS110..3H,4H197909-198010

RR,T=3.05-3.10

main33441-30240iMS110,117,RS110..3H,4H197909-198010

RR,T=3.20-3.25

main33441-30250iMS110,117,RS110..3H,4H197909-198010

RR,T=3.35-3.40

33442WASHER, COUNTER GEAR SIDE THRUST, NO.2

main33442-30030iMS110,117,RS110..3H,4H197909-198010

33451SHAFT, REVERSE IDLER GEAR

main33451-14020iLS11#,MS110,112..5F197909-198108

main33451-22021iGS11#,LS11#,RS110..5F198108-198307

main33451-30030iMS110,117,RS110..3H,4H197909-198010

main33451-30040iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

main33451-31010iLS11#..4F,4H197909-198108

33451DRING, SHAFT SNAP (FOR REVERSE IDLER GEAR SHAFT)

main90520-17001iMS110,117,RS110..3H,4H197909-198010

main90520-17220iLS110,MS110,117..4F197909-198108

33454BOLT, SHAFT RETAINING

main33454-20010iMS110,117,RS110..3H,4H197909-198010

33462WASHER, REVERSE IDLER THRUST

main33462-30010iMS110,117,RS110..3H,4H197909-198010

main33462-30020iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-14030iMS117..4F198108-198302

sub33481-14031

main33481-14031iGS11#,LS110,117..5F198302-198307

main33481-20070iLS117..STD;LS110..4H..BTP197909-198307

main33481-22010iLS110..WG..5F;LS110..5F..(CTE,SDX)197909-198307

main33481-22010iRS110..3H197909-198108

main33481-22020iLS110..4F198108-198307

main33481-22030iLS111,MS110,RS110..4F,5F198108-198307

main33481-30040iRS110..4H..TAX197909-198108

33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

main90360-06004iLS11#,MS11#,RS110..MTM197909-198307

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-26179iLS11#,MS11#,RS110..MTM197909-198307

sub90520-26061

9161140812

main91611-40812

9451200800

main94512-00800

53 parts on this diagram · 8 diagrams in section
