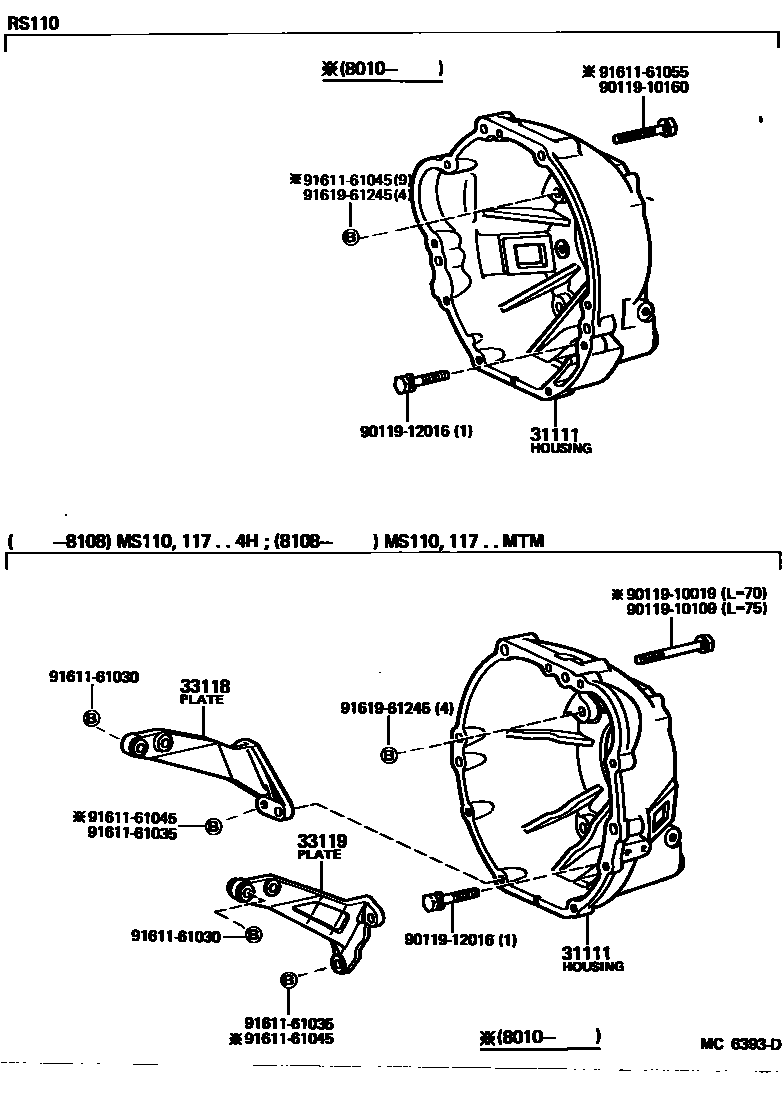

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1 0011 1

31111HOUSING, CLUTCH

main31111-20130iRS110197909-198010

sub31111-30141

main31111-20150iRS110198010-198108

sub31111-20151

main31111-22071iMS11#..4F,5F197909-198108

main31111-22090iMS110,117..4H198010-198108

sub31111-22091

main31111-22091iMS110,117..MTM198108-198307

main31111-22100iGS110..MTM198108-198207

sub31111-22130

main31111-22110iLS110..4H198010-198108

sub31111-22111

main31111-22111iLS11#..MTM198108-198307

sub31111-22112

main31111-22130iGS11#..MTM198207-198307

main31111-30091iMS110,117..4H197909-198010

sub31111-30101

main31111-30151iLS11#..4F,5F197909-198108

main31111-30170iRS110198108-198307

33118PLATE, STIFFENER, RH(MTM)

main33118-22050iGS11#..MTM198108-198307

sub33118-22051

main33118-25020iLS11#..MTM197909-198307

main33118-30031iMS11#..MTM197909-198307

33119PLATE, STIFFENER, LH(MTM)

main33119-22030iMS11#..MTM197909-198307

main33119-22041iGS11#..MTM198108-198307

sub33119-22042

main33119-25020iLS11#..4H198010-198307

main33119-30040iLS11#..4F,5F197909-198108

9011910019

main90119-10019

9011910109

main90119-10109

9011910160

main90119-10160

9011912016

main90119-12016

9161161030

main91611-61030

9161161035

main91611-61035

9161161045

main91611-61045

9161161055

main91611-61055

9161961245

main91619-61245

12 parts on this diagram · 7 diagrams in section
