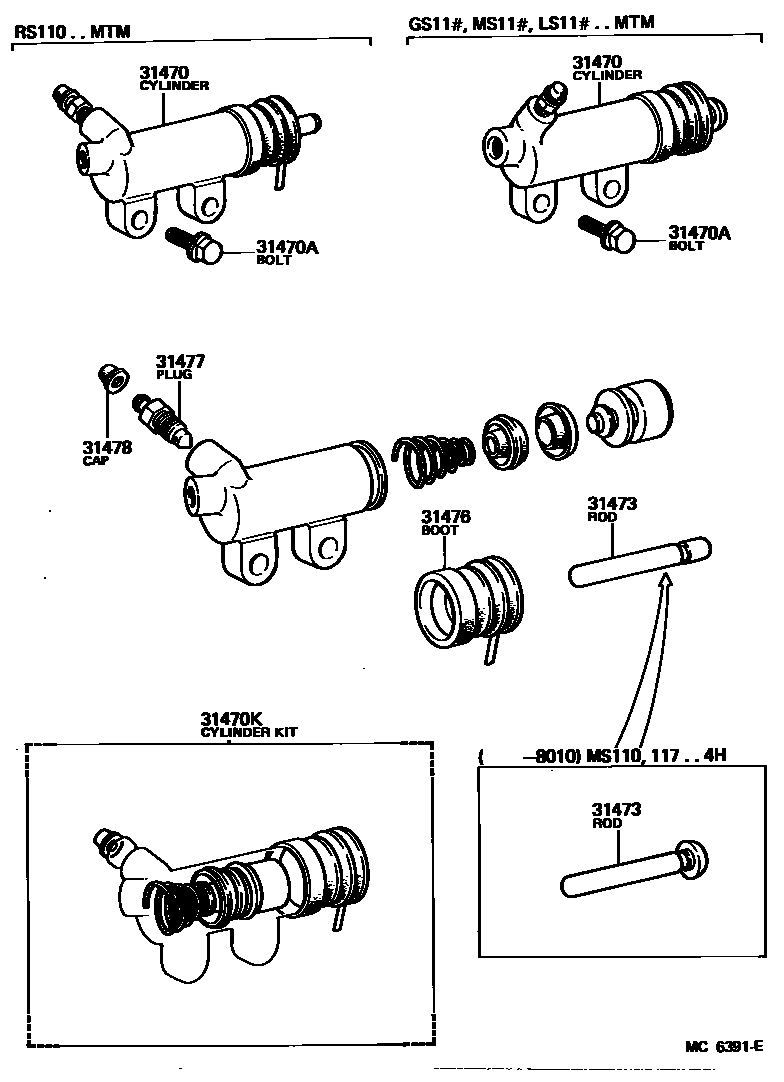

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-22060iMS11#..4F,5F197909-198012

sub31470-22080

main31470-22080iMS11#..4F,5F198012-198108

sub31470-26050

main31470-22090iLS11#..MTM198010-198307

main31470-30160iMS110,117..4H197909-198010

sub31470-30240

sub31470-30250

main31470-30201iRS110197909-198010

sub31470-30202

main31470-30211iLS11#..4F,5F197909-198012

sub31470-30212

main31470-30212iLS11#..4F,5F198012-198108

main31470-30220iMS110,117..4H198010-198307

sub31470-30221

main31470-30230iRS110198010-198306

main31470-35050iRS110198306-198307

sub31470-30260

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iGS11#,LS11#,MS11#,RS110..MTM197909-198307

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iGS11#,MS11#..MTM198010-198307

sub04313-12030

main04313-30090iLS11#..4H197909-198108

main04313-30091iLS11#..4F,5F198012-198108

sub04313-20020

main04313-30100iMS11#..4F,5F197909-198012

main04313-30120iRS110198010-198307

sub04313-26020

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iLS11#..MTM197909-198012

main31473-22010iLS11#,MS110,117,RS110..3H,4H198010-198307

main31473-30050iMS110,117..4H197909-198010

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLS11#,MS110,117,RS110..4H198010-198307

main31476-30040iLS11#,MS11#,RS110..MTM197909-198012

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGS11#,LS11#,MS11#,RS110..MTM197909-198307

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGS11#,LS11#,MS11#,RS110..MTM197909-198307

7 parts on this diagram · 1 diagram in section
