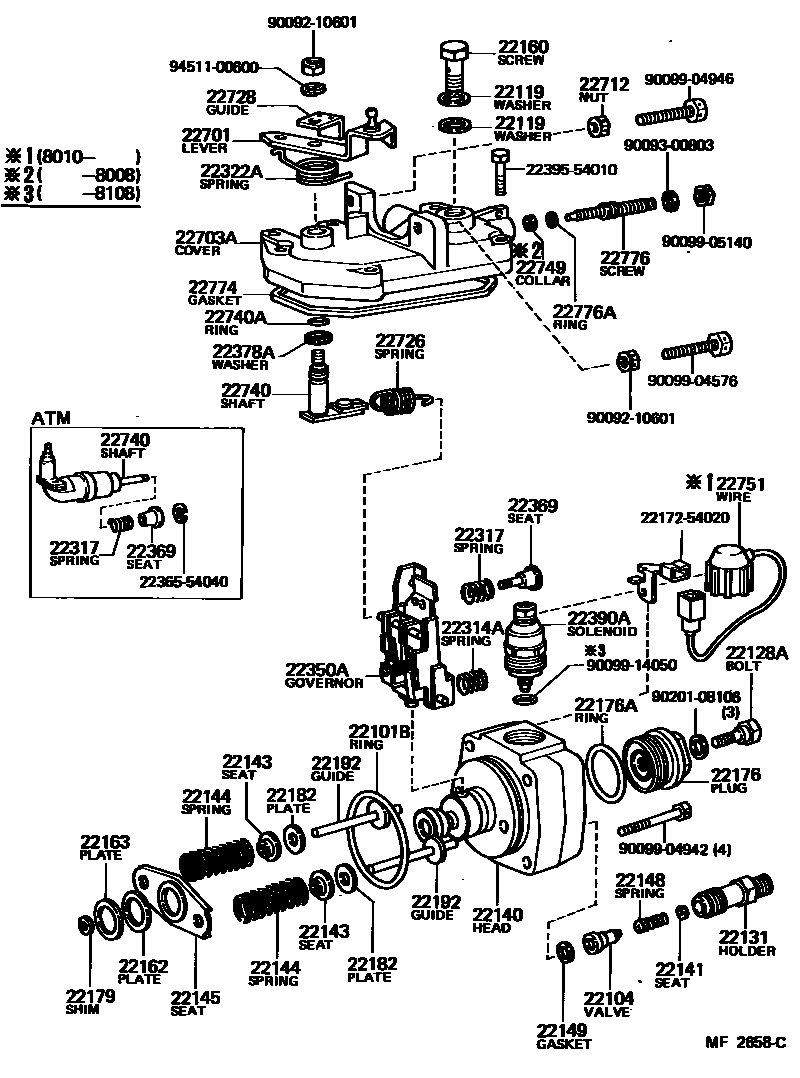

INJECTION PUMP BODY
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22131HOLDER, DELIVERY VALVE
22141SEAT, DELIVERY VALVE SPRING
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
sub22193-54772
22179SHIM, PLUNGER ADJUSTING
22182PLATE, TAPPET ADJUSTING SHIM
22192GUIDE SUB-ASSY, PLUNGER SPRING
22314ASPRING, LEVER SUPPORT
22317SPRING, GOVERNOR DOMPER
22322ASPRING, RETURN
22350AGOVERNOR ASSY, TORQUE CONTROL
22378AWASHER, GOVERNOR THRUST
22701LEVER SUB-ASSY, ADJUSTING
NO MARK
MARK "0"
22712NUT, ROCK
22726SPRING, SPEED CONTROL
22728GUIDE, RETURN SPRING
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
sub22193-54770
22749COLLAR, SMOKE SET ADJUSTING
T=2.0
T=2.2
T=2.4
T=2.6
T=2.8
T=3.0
T=3.2
T=3.4
T=3.6
T=3.8
22774GASKET, GOVERNOR COVER
sub22774-54270
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
sub22193-54771
2217254020CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54020
2236554040RING, E(FOR INJECTION PUMP LEVER)
main22365-54040
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
9009210601
main90092-10601
9009300803
main90093-00803
9009904576
main90099-04576
9009904942
main90099-04942
9009904946
main90099-04946
9009905140
main90099-05140
9009914050
main90099-14050
9020108106
main90201-08106
9451100600
main94511-00600
52 parts on this diagram · 5 diagrams in section
