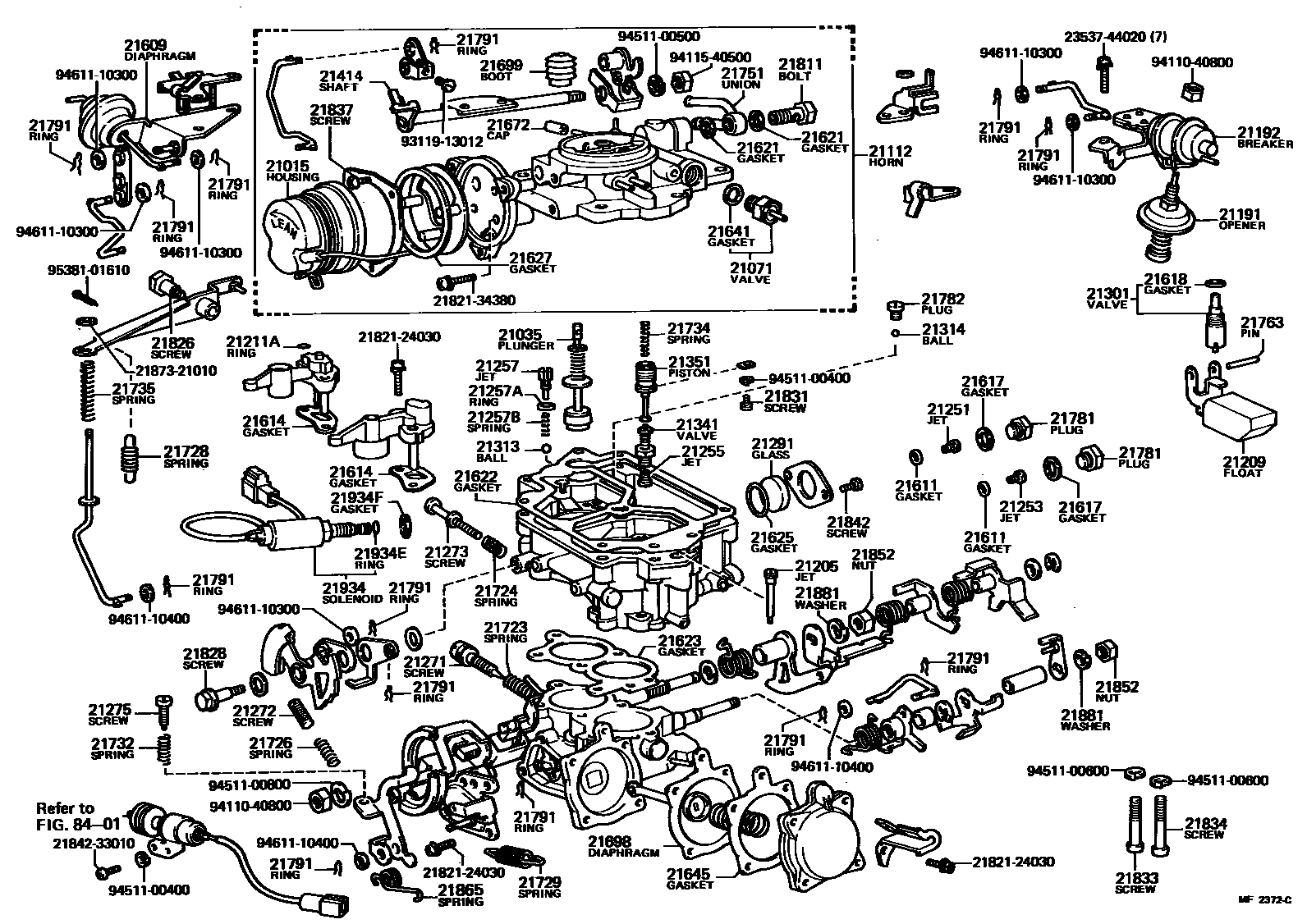

CARBURETOR
21015HOUSING SUB-ASSY, COIL
21035PLUNGER SUB-ASSY, PUMP
21071VALVE SUB-ASSY, THERMOSTATIC
21191OPENER
21205JET SUB-ASSY, SLOW
ID=0.70
ID=0.60
21209FLOAT SUB-ASSY
21211ARING(FOR SMALL VENTURI)
21251JET, 1ST MAIN
ID=1.06
ID=1.10
21253JET, 2ND MAIN
ID=1.80
21255JET, POWER
ID=0.50
21257JET, PUMP
21257ARING, O(FOR PUMP JET)
21257BSPRING(FOR PUMP JET)
21271SCREW, IDLE ADJUSTING
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21275SCREW, ADJUSTING
21291GLASS, LEVEL GAGE
21301VALVE SUB-ASSY, NEEDLE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)
sub21314-11020
21341VALVE, POWER
21351PISTON, POWER
21414SHAFT, CHOKE
21609DIAPHRAGM SUB-ASSY
21611GASKET, MAIN JET
21614GASKET, VENTURI
2ND
1ST
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21622GASKET, AIR HORN
21623GASKET, BODY FLANGE
21625GASKET, LEVEL GAGE
21627GASKET, COIL HOUSING
21641GASKET(FOR THERMOSTATIC VALVE COVER)
21645GASKET, DIAPHRAGM, CAP
21672CAP
21698DIAPHRAGM
21699BOOT(FOR PUMP PLUNGER)
sub21699-43010
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21728SPRING, THROTTLE VALVE RETURN
21732SPRING, THROTTLE ADJUSTING
21734SPRING, POWER PISTON
21735SPRING, PUMP ARM
21751UNION, NIPPLE
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
sub21781-16510
21782PLUG, NUT(FOR ACCELERATING SYSTEM)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
sub21791-13011
21811BOLT, UNION NIPPLE
21826SCREW, PUMP ARM SET
21828SCREW, 1ST IDLE SET
21831SCREW, POWER PISTON STOP
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
*6-1.0PX27.5-13
*6-1.0PX27.5-11
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
*6-1.0PX35-25
21837SCREW, COIL HOUSING SET
*4-0.7PX10-6.3
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
21865SPRING
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934SOLENOID, THROTTLE VALVE
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
8401
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182134380SCREW, 2ND THROTTLE VALVE SET
main21821-34380
2184233010SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-33010
2187321010WASHER, PLUNGER
main21873-21010
2353744020SCREW(FOR 2ND REGULATOR COVER SET)
main23537-44020
9311913012
main93119-13012
9411040800
main94110-40800
9411540500
main94115-40500
9451100400
main94511-00400
9451100500
main94511-00500
9451100600
main94511-00600
9451100800
main94511-00800
9461110300
main94611-10300
9461110400
main94611-10400
9538101610
main95381-01610
