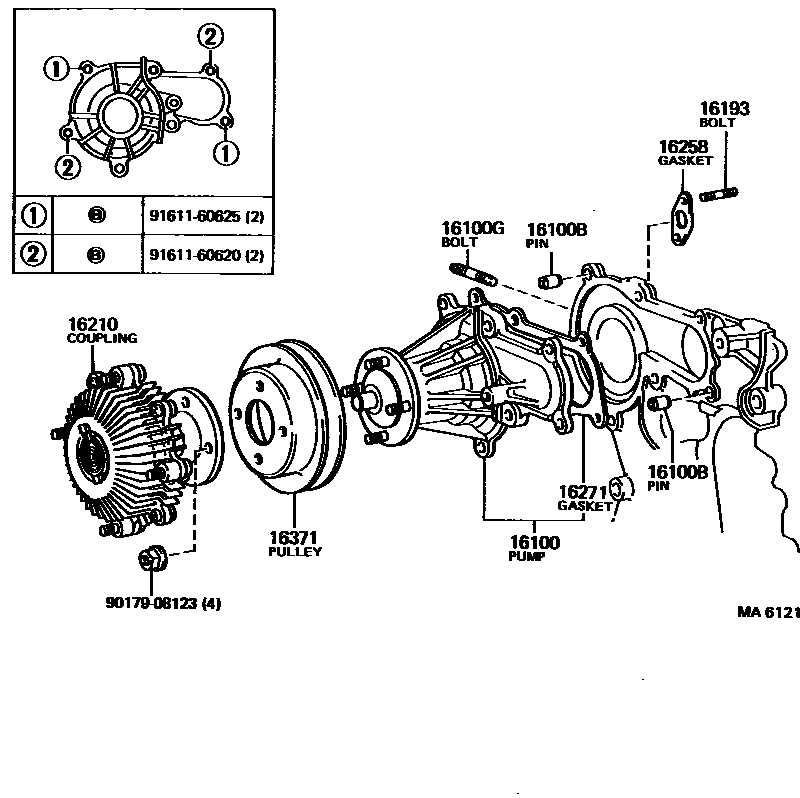

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-49446i5RU..RS110..STD,TAX197909-198010

sub16100-49447

main16100-49555i5RU..RS110..BTP,DLX197909-198010

main16100-49556i5RU..RS110198010-198210

main16100-49557i5RU..RS110198210-198307

sub16100-49558

main16100-49585iMEU,MJ,MU..MS110,117197909-198201

main16100-49595iMJ,MU..MS110,117198201-198307

sub16100-49665

main16100-49615iMTEU..MS110198010-198307

sub16100-49665

main16100-49655i5MGEU..MS112198108-198307

sub16100-49656

main16100-59047iL..LS11#197909-198008

main16100-59049iL..LS11#198008-198105

main16100-59125iL..LS11#198105-198108

sub16100-59215

main16100-59126iL..LS110,117198108-198210

main16100-59127iL..LS110,117198210-198307

sub16100-59128

main16100-59135i2LT#..LS111198208-198210

main16100-59136i2LT#..LS111198210-198307

sub16100-59137

main16100-79015i1GE#..GS11#198108-198307

16100BPIN, RING(FOR WATER PUMP SET)

main16185-70010×2i1GE#..GS11#198108-198307

16100GBOLT, STUD(FOR WATER PUMP SET)

main16194-70010×2i1GE#..GS11#198108-198307

main90116-08111iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198307

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010×2i1GE#..GS11#198108-198307

main16193-33030×5iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198307

L=20,5,S=5.5&9

main16193-41031iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198307

L=42,S=16&20

16210COUPLING ASSY, FLUID

main16210-41160iMEU,MJ,MU..MS110,117197909-198201

main16210-44040i5RU..RS110198010-198307

main16210-45100iMJ,MU..MS110,117198201-198307

main16210-45110iMTEU..MS110198010-198307

main16210-54030iL..LS110,117..MTM198208-198307

main16210-54050iL..LS11#198108-198208

main16210-54060i2LT#..LS111198208-198307

main16210-70020i1GE#..GS11#198108-198307

sub16210-70021

16258GASKET(FOR HEATER RETURN)

main16258-15010i1GEU..GS110198108-198112

main16258-15011i1GE#..GS11#198112-198307

16271GASKET, WATER PUMP

main16124-70010i1GE#..GS11#198108-198307

sub16124-70011

main16271-41011iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198307

sub16271-43010

main16271-44010i5RU..RS110197909-198101

main16271-44020i5RU..RS110198101-198307

sub16271-44021

main16271-54010iL..LS11#197909-198008

main16271-54011iL..LS11#198008-198104

main16271-54012iL,2LT#..LS11#198104-198307

sub16271-54013

16371PULLEY, FAN

main16173-45100iMEU,MJ,5MEU,MU..MS11#197909-198009

main16173-45101iMEU,MJ,5M#,MTEU,MU..MS11#198009-198307

main16371-44040i5RU..RS110197909-198307

main16371-54010iL..LS110,117197909-198307

main16371-54020i2LT#..LS111198208-198307

main16371-70010i1GE#..GS11#198108-198307

9017908123

main90179-08123

9161160620

main91611-60620

9161160625

main91611-60625

11 parts on this diagram · 5 diagrams in section
